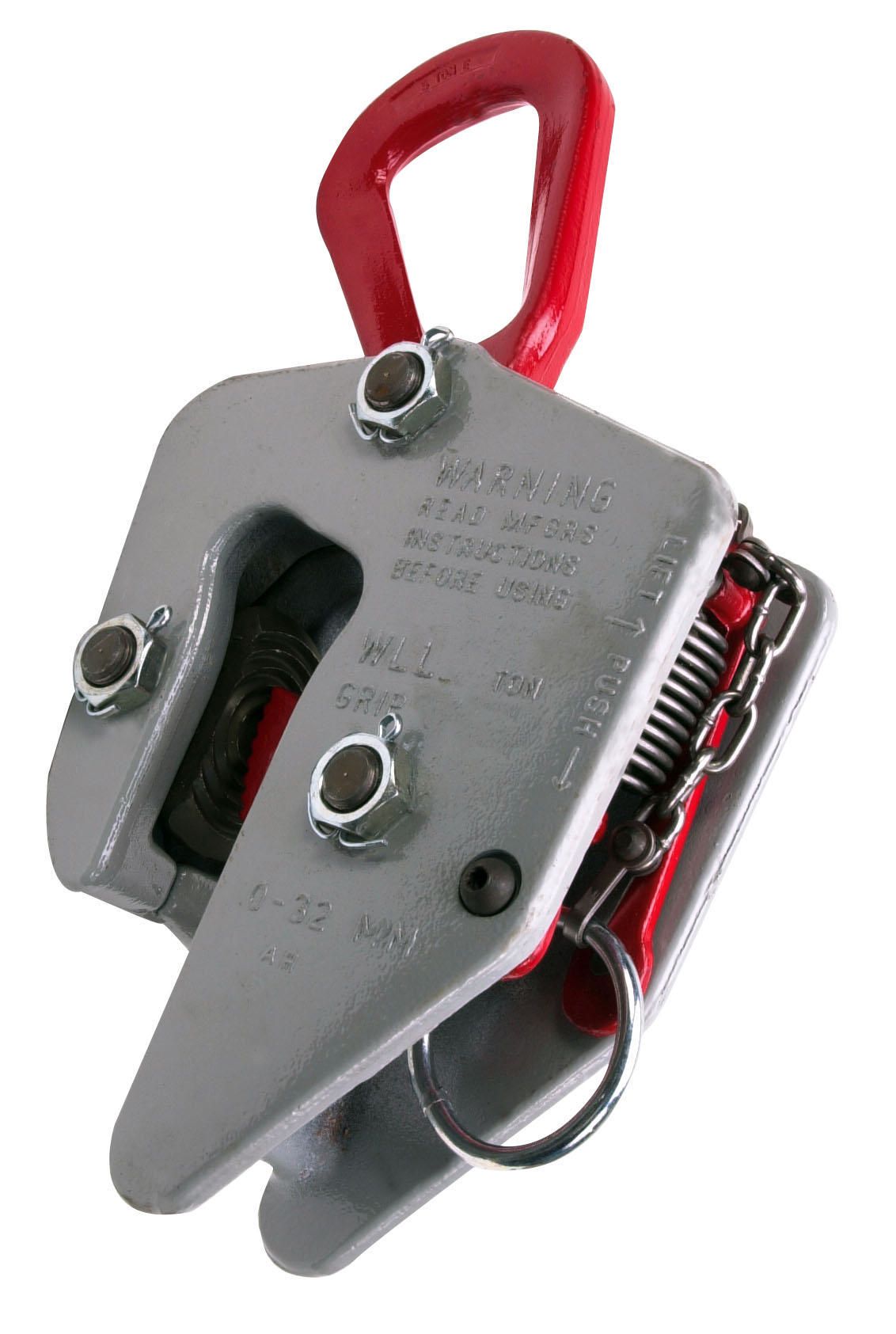

Campbell 6420702 Locking ”E” Plate Clamp, 0” - 1-1/2” Grip, 5 ton WLL

Campbell 6420702 Locking ”E” Plate Clamp, 0” - 1-1/2” Grip, 5 ton WLL

Dropship

SKU kpi263-6420702

GTIN : 020418096129

$5,173.85 USD
$5,173.85 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Product Description

Features
  • Clamp Lifts From Either Horizontal or Vertical Position
  • Clamps Turn Plates Through 90°
  • Locks Open or Closed with a Lever
  • Has Large Throat That Gives a Secure Bite and Wide Grip Range
  • Clamps Are 100% Proof Tested and Certificate of Test Supplied with Each Clamp
  • Minimum WLL of at Least 10% of the Maximum WLL
  • Note: Be Sure Clamp is in Lock Closed Position Before Making Lift
  • Warning: NEVER Tamper with a Clamps Tension Arm or Spring Mechanism During a Lift. DO NOT Add Rope or Other Material to the Lock Mechanism to Lengthen.
Specifications
  • UPC - 020418096129
  • Foreign Trade Code - 8205700090
  • Set - No
  • Packaging - Boxed
  • Weight Each (lb) - 28.00 lb
  • Weight - 28
  • A Dimension - 9-5/8
  • B Dimension - 16-1/8 in
  • C Dimension - 10-3/16 in
  • D Dimension - 3-1/2 in
  • E Dimension - 2-1/2 in
  • Working Load Limit Metric Ton - 5 t
  • H Dimension - 3-3/16 in
  • J Dimension - 5-5/16 in
  • Grip Range - 0 to 1-1/2 in.
  • Model Number - 5E
