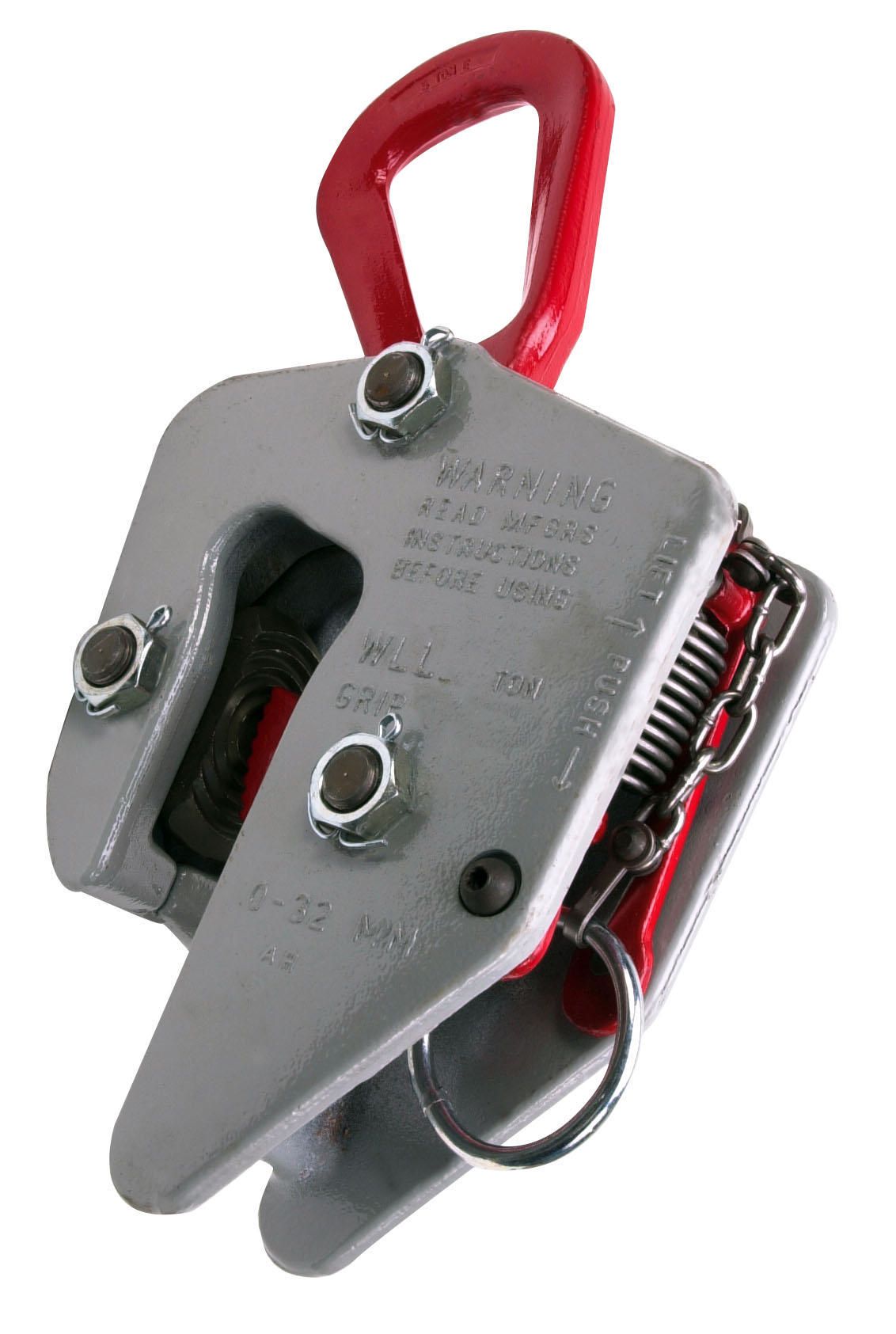

Campbell 6420703 Locking ”E” Plate Clamp, 1-1/4” - 2-1/2” Grip, 5 ton WLL

Product Description

• Clamp Lifts From Either Horizontal or Vertical Position
• Clamps Turn Plates Through 90°
• Locks Open or Closed with a Lever
• Has Large Throat That Gives a Secure Bite and Wide Grip Range
• Clamps Are 100% Proof Tested and Certificate of Test Supplied with Each Clamp
• Minimum WLL of at Least 10% of the Maximum WLL
• Note: Be Sure Clamp is in Lock Closed Position Before Making Lift
• Warning: NEVER Tamper with a Clamps Tension Arm or Spring Mechanism During a Lift. DO NOT Add Rope or Other Material to the Lock Mechanism to Lengthen.

• UPC - 020418096136
• Foreign Trade Code - 8205700090
• Set - No
• Packaging - Boxed
• Weight Each (lb) - 33.00 lb
• Weight - 33
• A Dimension - 10-9/16
• B Dimension - 16-5/8 in
• C Dimension - 11-1/8 in
• D Dimension - 3-1/2 in
• E Dimension - 2-1/2 in
• Working Load Limit Metric Ton - 5 t
• H Dimension - 3-3/16 in
• J Dimension - 5-5/16 in
• Grip Range - 1-1/4 to 2-1/2 in.
• Model Number - 5E
