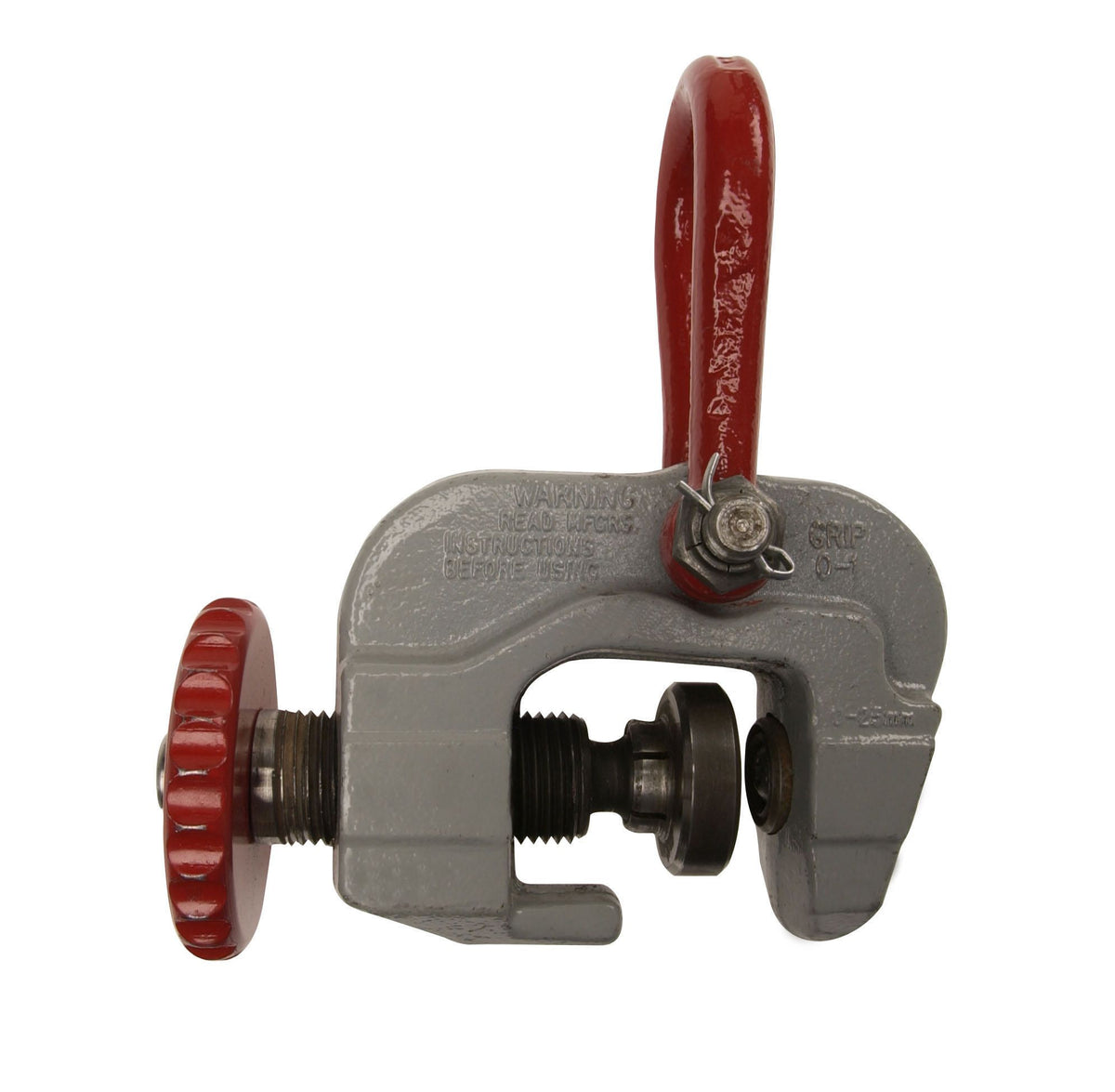

Campbell 6421001 SAC (Screw Adjusted Cam) Plate Clamp, 0" - 2" Grip, 3 ton WLL

Campbell 6421001 SAC (Screw Adjusted Cam) Plate Clamp, 0" - 2" Grip, 3 ton WLL

Dropship

SKU kpi263-6421001

GTIN : 020418096402

$2,847.70 USD
$2,847.70 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Product Description

Features
  • Recommended for Turning Plates From Horizontal to Vertical As Well As Through A 180° Arc
  • The Convex, Serrated Cam Swivels on A Ball Joint So That the Area of Cam Engagement Increases As Load Increases
  • Drop Forged Body and Shackle
  • Clamps Are 100% Proof Tested and Certificate of Test Supplied with Each Clamp
  • Minimum WLL of at Least 10% of the Maximum WLL
  • Note: Clamp Features a Torque Limiting Handle to Prevent Overtightening. Screw Needs to Be Hand Tight Only! Do Not Overtighten.
Specifications
  • UPC - 020418096402
  • Foreign Trade Code - 8205700090
  • Set - No
  • Packaging - Boxed
  • Weight Each (lb) - 17.00 lb
  • Weight - 16.25
  • A Dimension - 7-3/4
  • B Dimension - 10-1/2 in
  • C Dimension - 6-1/2 in
  • D Dimension - 1-7/8 in
  • E Dimension - 3-3/8 in
  • F Dimension - 3/4 in
  • Working Load Limit Metric Ton - 3 t
  • P Dimension - 1-13/16 in
  • H Dimension - 2-3/8 in
  • J Dimension - 3-3/4 in
  • O Dimension - 9-1/4 in
  • Grip Range - 0 to 2 in.
  • Model Number - SAC-3
