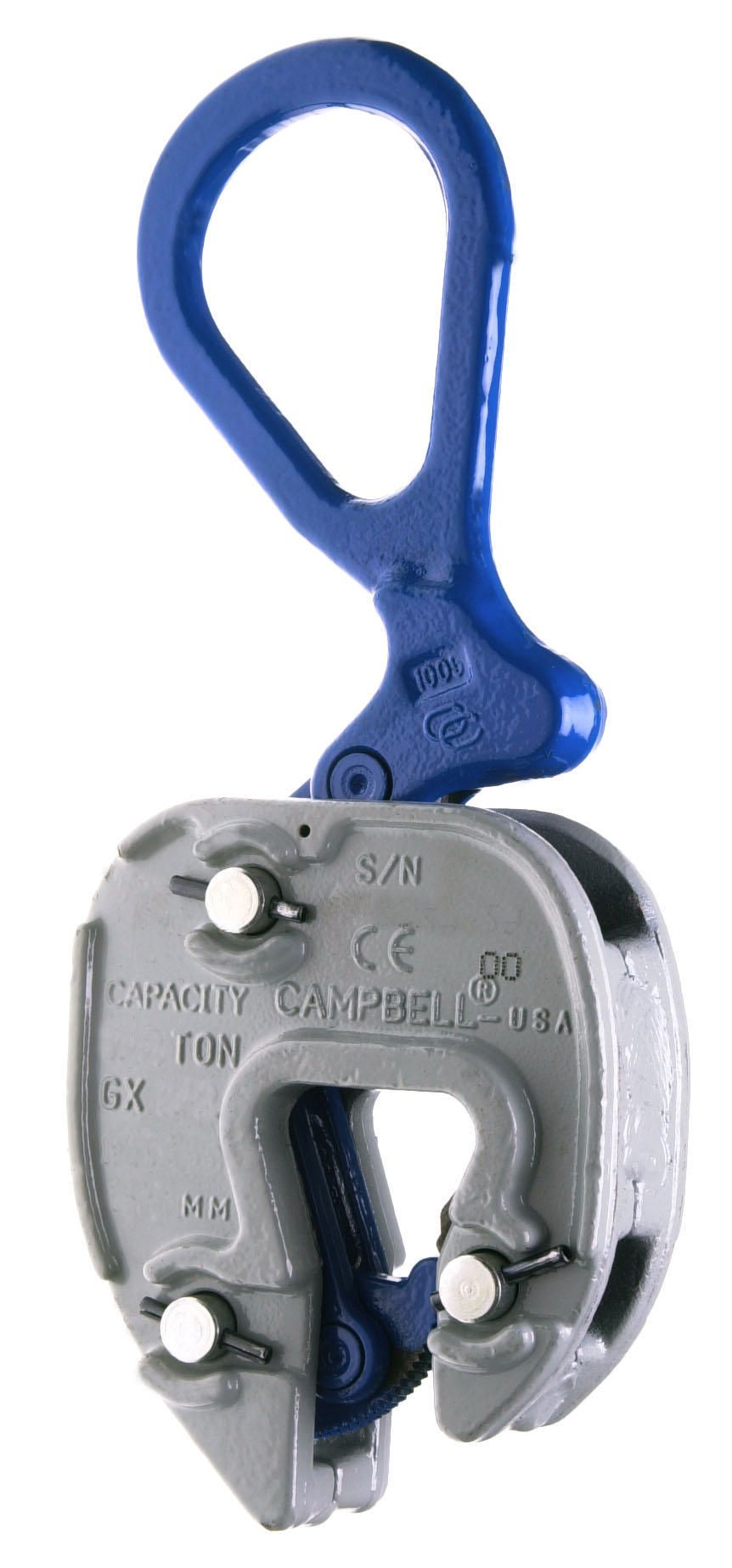

Campbell 6423010 GX Plate Clamp, 1/16"- 1" Grip, 3 ton WLL

Campbell 6423010 GX Plate Clamp, 1/16"- 1" Grip, 3 ton WLL

Dropship

SKU kpi263-6423010

GTIN : 020418172229

$2,648.55 USD
$2,648.55 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Product Description

Features
  • Features Drop-Forged and Heat Treated Body and Components
  • Can Be Used for Both Vertical and Horizontal to Vertical Lifting Through 180°
  • Exclusive Feature is a Patented Wear Indicator System. When Any of the Cam'S Straight Line, Convex Teeth Are Flattened Between Unique Wear Indicator Grooves, It is Time to Change the Cam.
  • Note: The Pad and Cam Should Be Replaced at the Same Time
  • Clamps Are 100% Proof Tested and Certificate of Test Supplied with Each Clamp
  • Minimum WLL of at Least 10% of the Maximum WLL
Specifications
  • UPC - 020418172229
  • Foreign Trade Code - 8205700090
  • Set - No
  • Packaging - Boxed
  • Weight Each (lb) - 17.00 lb
  • Weight - 17
  • A Dimension - 6
  • B Dimension - 14 in
  • C Dimension - 3-9/16 in
  • D Dimension - 3-13/16 in
  • E Dimension - 3 in
  • F Dimension - 6-3/4 in
  • Working Load Limit Metric Ton - 3 t
  • G Dimension - 4-7/16 in
  • H Dimension - 2 in
  • Grip Range - 1/16 to 1 in.
  • I Dimension - 7-5/8 in
