Features

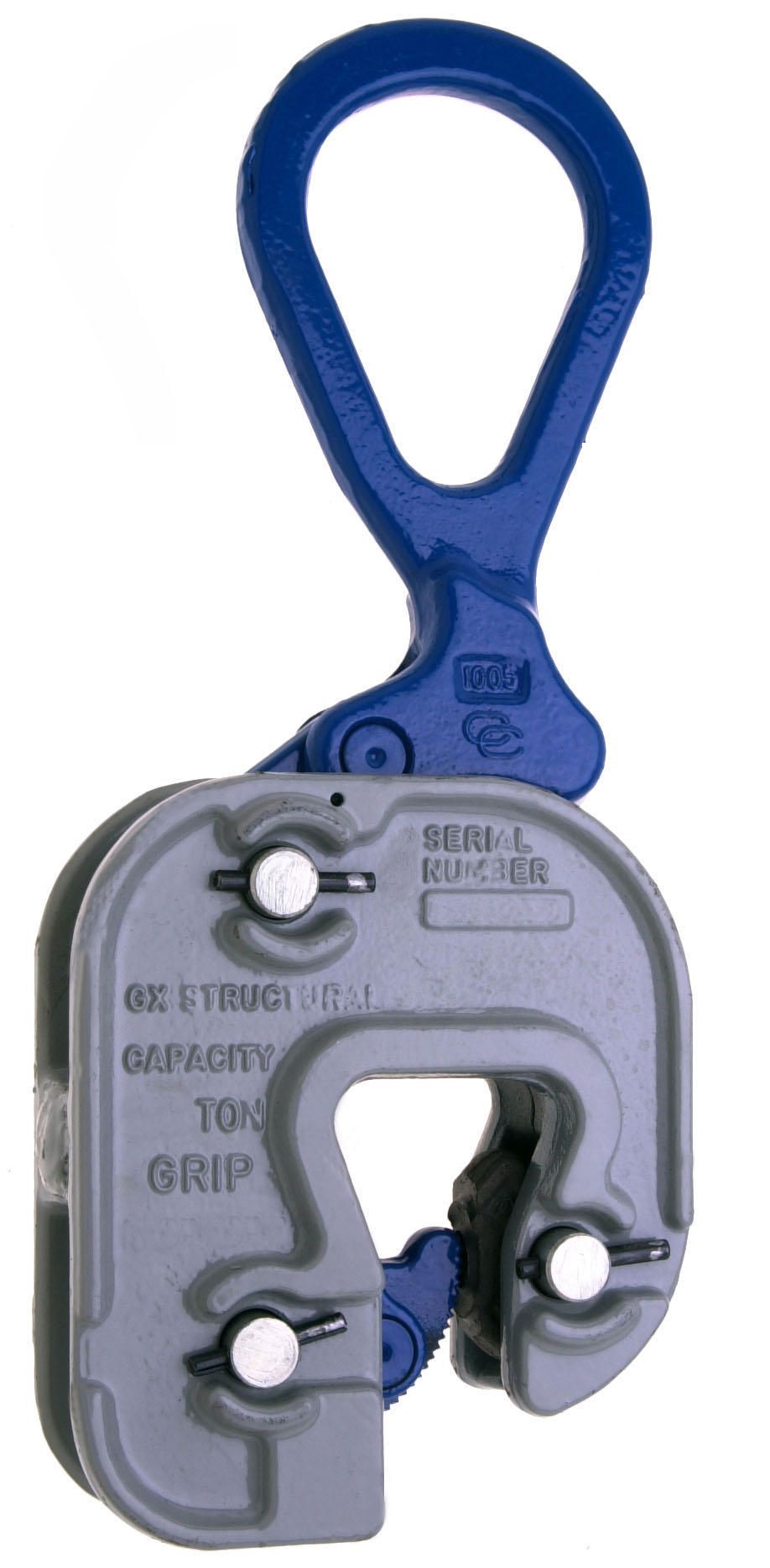

- Designed for a Secure Bite on Small or Odd Shaped, Wide Flanged Beams
- Can Be Used for Both Vertical and Horizontal to Vertical Lifting Through 180°
- Put Short Leg Under Plate When Lifting From Horizontal to Vertical
- Replacement Parts Are Same As for Standard "GX" Clamps
- Note: The Pad and Cam Should Be Replaced at the Same Time
- Clamps Are 100% Proof Tested and Certificate of Test Supplied with Each Clamp
- Minimum WLL of at Least 10% of the Maximum WLL
- UPC - 020418177330
- Foreign Trade Code - 8205700090
- Set - No
- Packaging - Boxed
- Weight Each (lb) - 4.25 lb
- Weight - 4
- A Dimension - 4
- B Dimension - 9-1/2 in
- C Dimension - 2-1/8 in
- D Dimension - 2-5/8 in
- E Dimension - 2 in
- F Dimension - 4-1/16 in
- Working Load Limit Metric Ton - 1/2 t
- G Dimension - 2-7/8 in
- H Dimension - 1-3/8 in
- Grip Range - 1/16 to 5/8 in.
- I Dimension - 4-3/4 in
Age group18+
CategoryLifting Clamps
Country of originUS
GenderUnisex
Height2.625"
Length7.75"
ManufacturerCrescent
Mpn6423100
SubcategoryGX Series
Sub brandCampbell
TypeGX Series
Upc020418177330
Weight4.25 lbs
Width6"
