category:
Electric Motors
height:
6.81
length:
15.55
manufacturer:
Century
mpn:
5FE1076SV1
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
21.83
width:
6.45
Product Description

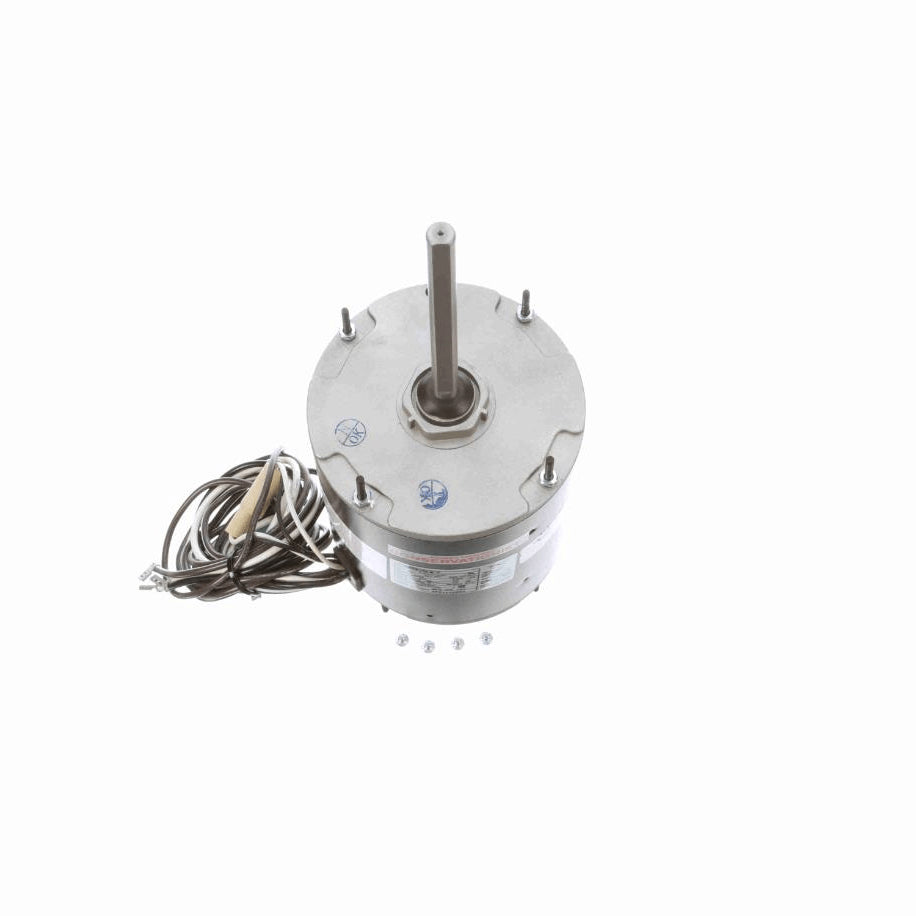

Century - 5FE1076SV1
- Condenser Fan - Heat Pump - Refrigeration Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 48" Leads
- Extended Studs Shaft End and Lead End, Mounting Holes in Shell
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current1.9 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight21.83 LB
Country Of originMexico
Output HP3/4 Hp
Output KW0.56 kW
Service Factor1
Frame48
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.50 in
Shaft Diameter0.500 in
Shaft Extension6.5 in
CEN
Starting MethodAcross The Line
