category:
Electric Motors
height:
6.81
length:
12.87
manufacturer:
Century
mpn:
454A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
19
width:
6.81

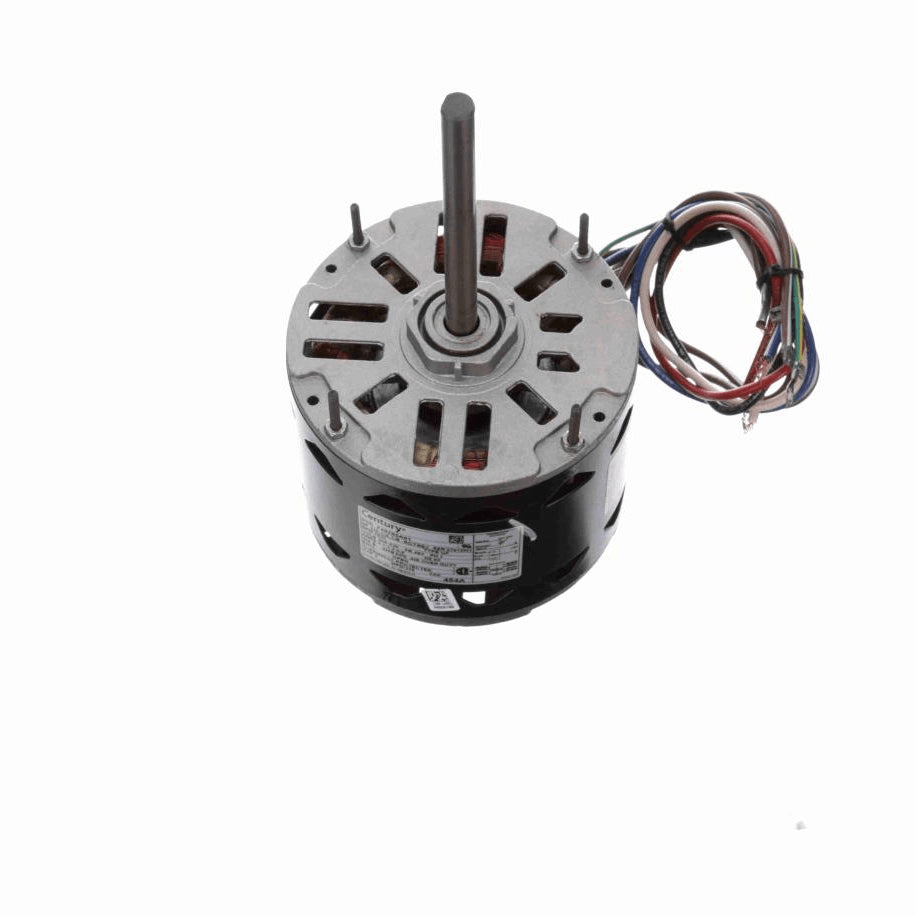

Product Overview
- Direct Drive Fan & Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 18" Leads
- Extended Studs Shaft End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1625 rpm
Current2.1,1.2,0.9 A
Number of Speeds3
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight19.00 LB
Country Of originMexico
Output HP1/3,1/4,1/6 Hp
Output KW0.25 kW
Service Factor1
FrameF48Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.88 in
Shaft Diameter0.500 in
Shaft Extension5.48 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
