Century

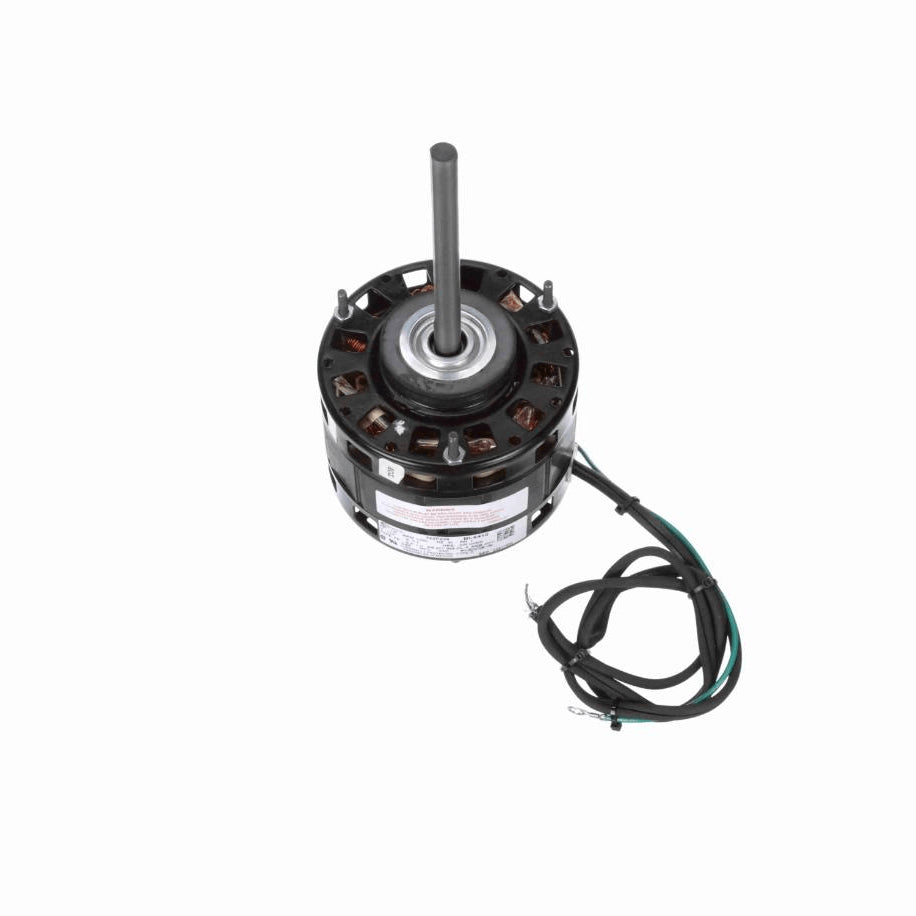

Century BL6410 Fan and Blower Motor, 1/8 HP, 1 Ph, 60 Hz, 115 V, 1050 RPM, 1 Speed, 42 Frame, OAO

Century BL6410 Fan and Blower Motor, 1/8 HP, 1 Ph, 60 Hz, 115 V, 1050 RPM, 1 Speed, 42 Frame, OAO

Dropship

SKU SKU:kpi045-BL6410

GTIN : 786674014023

MPN : BL6410

Regular price $213.68 USD
Regular price Sale price $213.68 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Century - BL6410

  • Furnace Blower - Attic Ventilator - Air Handler - Fan Coil Motor
  • 5" Diameter - 42 Frame
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 36" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting

Additional Information

Thermal ProtectionAutomatic
Speed1050 rpm
Current5.2 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAN
Weight9.00 LB
Country Of originMexico
Output HP1/8 Hp
Output KW0.10 kW
Service Factor1
Frame42Y
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationCounterclockwise Lead End
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension5.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
CategoryElectric Motors
Country of originTW
Height5.81
Length10.87
ManufacturerCentury
MpnBL6410
SubcategoryAC Motors - NEMA
TypeHVAC - R Motors
Weight9
Width5.81
