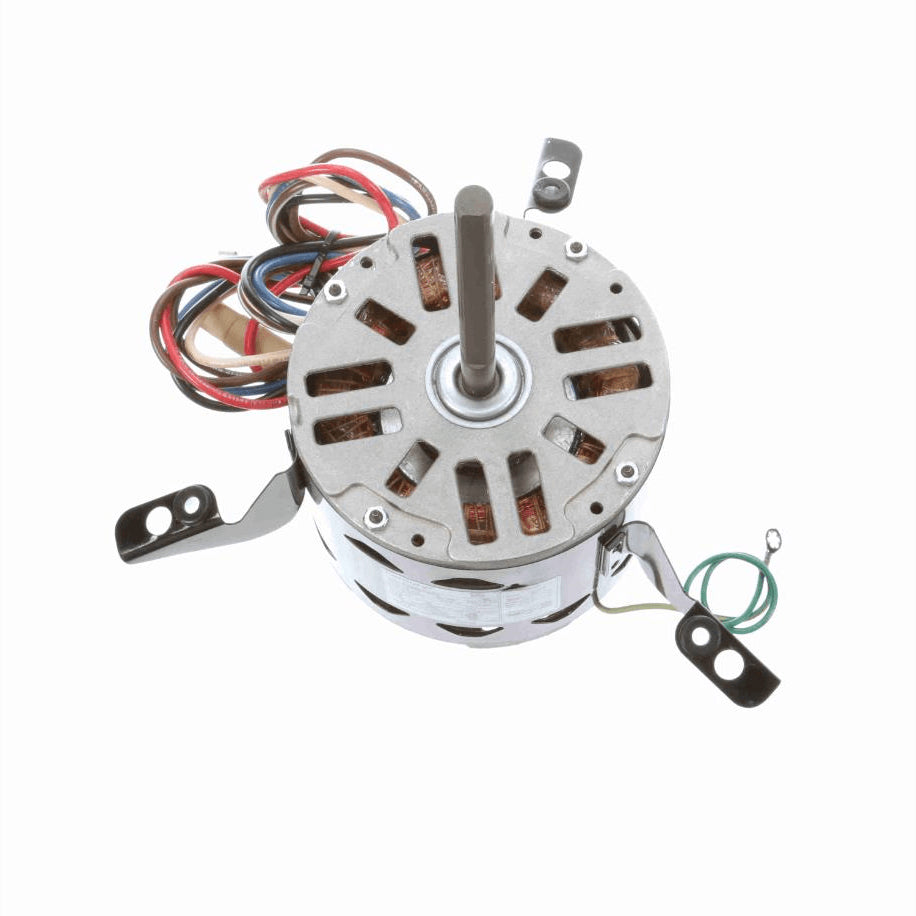

Century - 9431A
- Fan Coil - Room Air Conditioner - Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 60°C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2" Diameter Shaft with Flat
- 25" Leads
- Flex Mount
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current.78, .61, .49 A
Number of Speeds3
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight12.00 LB
Country Of originMexico
Output HP1/6,1/8,1/10 Hp
Output KW0.13 kW
Service Factor1
Frame48Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingLug
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.63 in
Shaft Diameter0.500 in
Shaft Extension5.50 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
CategoryElectric Motors
Country of originMX
Height12.81
Length12.87
ManufacturerCentury
Mpn9431A
SubcategoryAC Motors - NEMA
TypeHVAC - R Motors
Weight12
Width12.81
