category:
Electric Motors
country_of_origin:
TW
height:
6.8
length:
15.5
manufacturer:
Century
mpn:
FE6002F
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
17
width:
6.5
Product Description

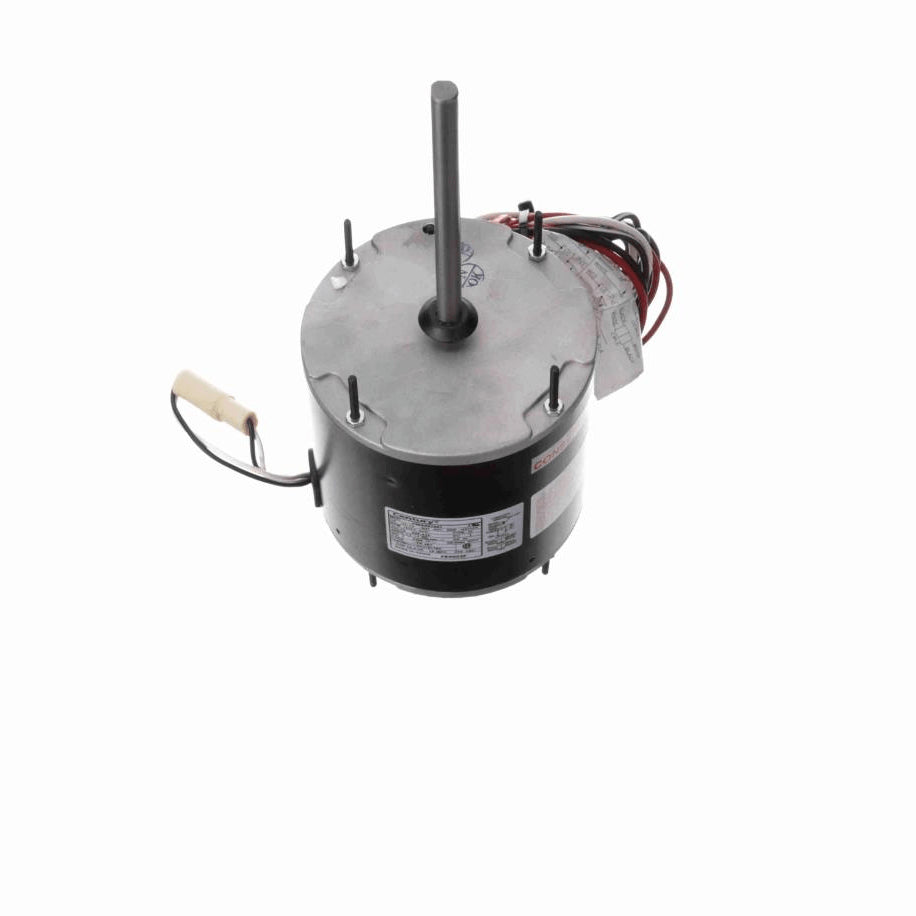

Century - FE6002F
- MasterFit Pro - Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 12.5or 10 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class F Insulation, 70°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 48" Leads with Quick Connect Terminals
- Extended Studs Shaft End, Mounting Holes in Shell, 4.33BC Lead End End-Frame, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current3.2,1.6 A
Number of Speeds2
Ambient Temperature70 °C
ULRecognized
Insulation ClassF
CSAY
Weight17.00 LB
Country Of originIndia
Output HP1/2,1/4 Hp
Output KW0.37 kW
Service Factor1
Frame48
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length4.75 in
Shaft Diameter0.500 in
Shaft Extension6.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
