category:
Electric Motors
height:
6.8
length:
15.5
manufacturer:
Century
mpn:
FE6004F
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
21
width:
6.5
Product Overview

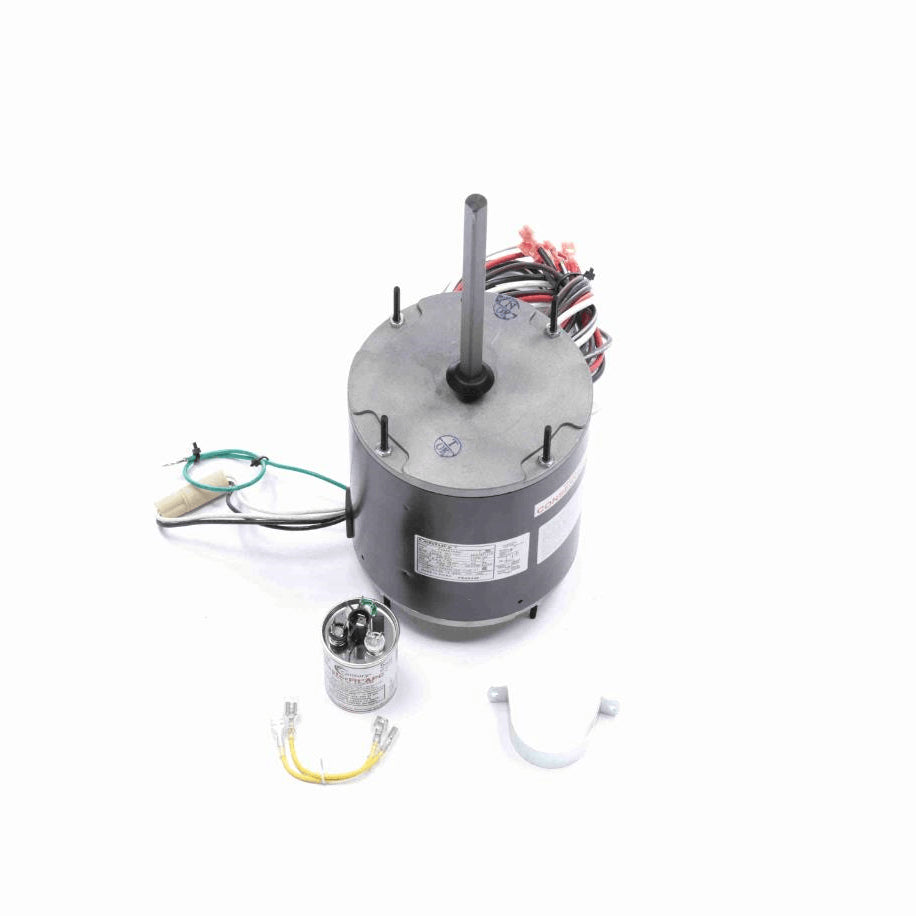

- MasterFit Pro - Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15or 12.5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class F Insulation, 70°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 48" Leads with Quick Connect Terminals
- Extended Studs Shaft End, Mounting Holes in Shell, 4.33BC Lead End End-Frame, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current5.6,2.4 A
Number of Speeds2
Ambient Temperature70 °C
ULRecognized
Insulation ClassF
CSAY
Weight21.00 LB
Country Of originIndia
Output HP3/4,1/3 Hp
Output KW0.56 kW
Service Factor1
Frame48
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length5.37 in
Shaft Diameter0.500 in
Shaft Extension6.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
