category:
Electric Motors
height:
6.81
length:
13.78
manufacturer:
Century
mpn:
7FD6001A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
16
width:
6.41
Product Overview

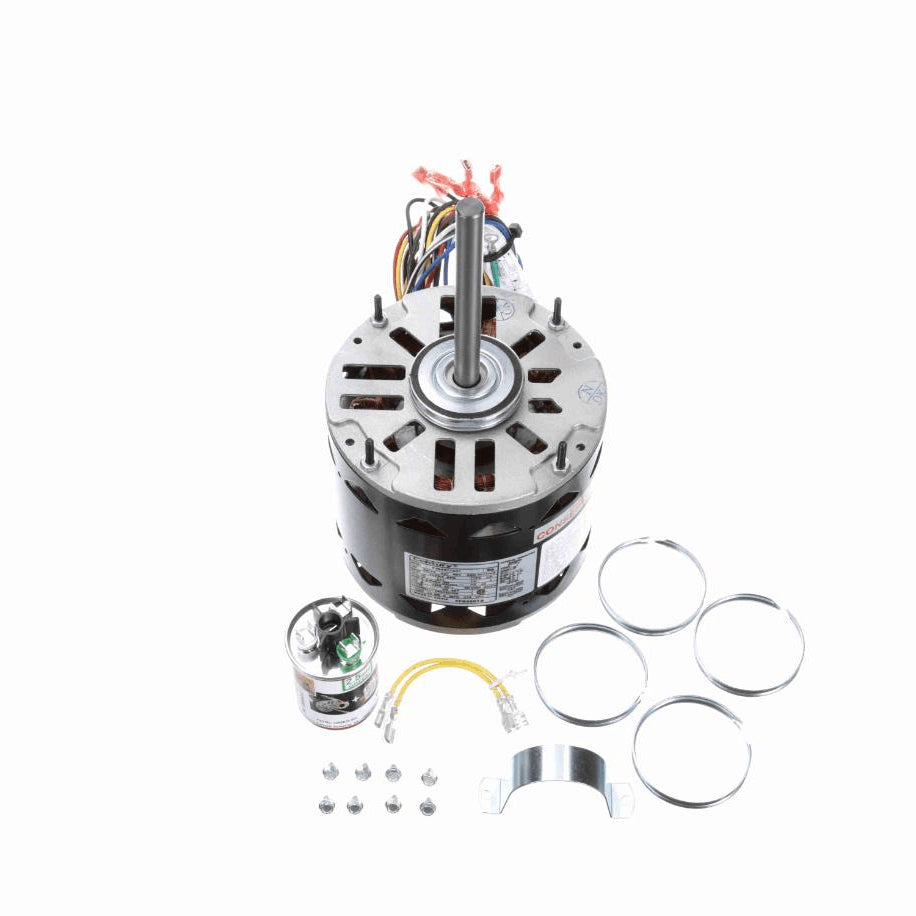

- MasterFit Pro - Direct Drive Fan & Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 or 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 38" Leads with Quick Connect Terminals
- Extended Studs Shaft End, Resilient Ring Mounting, Mounting Holes in Shell
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current3.6 A
Number of Speeds4
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight16.00 LB
Country Of originMexico
Output HP3/4-1/5 Hp
Output KW0.56 kW
Service Factor1
Frame48Y
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Ring/Extended Studs
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.86 in
Shaft Diameter0.500 in
Shaft Extension5.0 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
