category:
Electric Motors
country_of_origin:
MX
height:
7.81
length:
13.87
manufacturer:
Century
mpn:
OYK1056S
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
18
width:
8.31

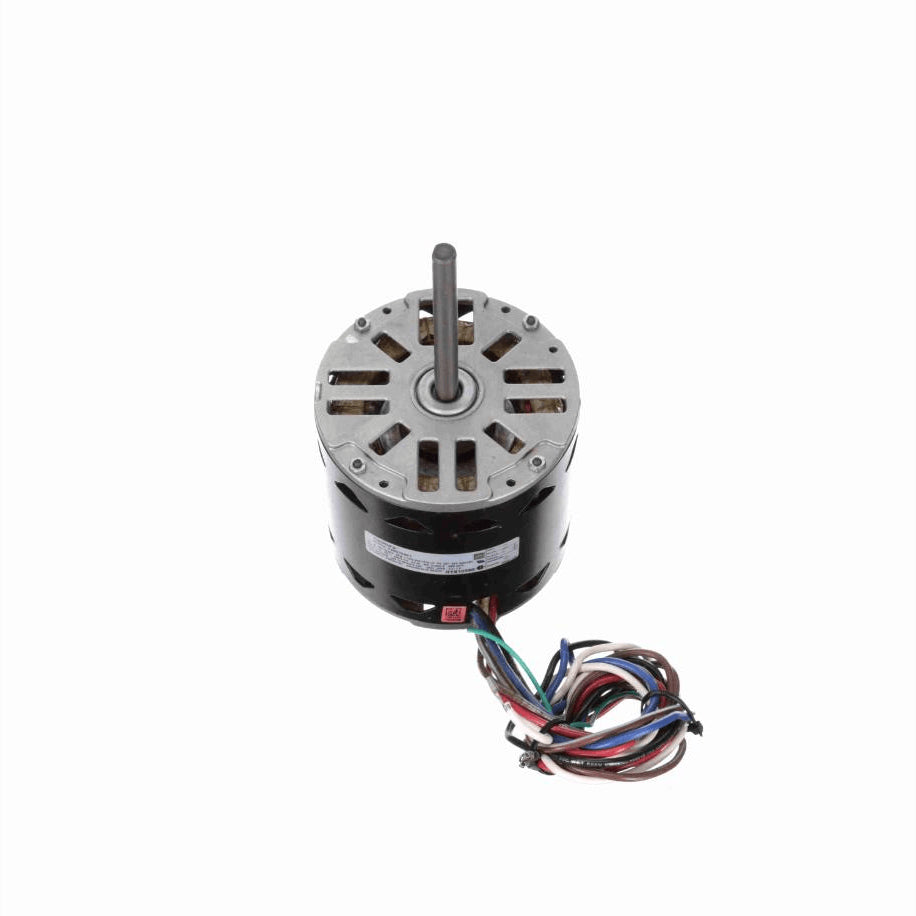

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 34" Leads with Female Spade Terminal
- Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1110 rpm
Current9.8 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight18.00 LB
Country Of originMexico
Output HP1/2 Hp
Output KW0.37 kW
Service Factor1
Frame48Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Lead End
MountingRound Belly Band
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.88 in
Shaft Diameter0.500 in
Shaft Extension4.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
