category:
Electric Motors
country_of_origin:
MX
height:
12.81
length:
12.87
manufacturer:
Century
mpn:
648A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
23
width:
12.81
Product Overview

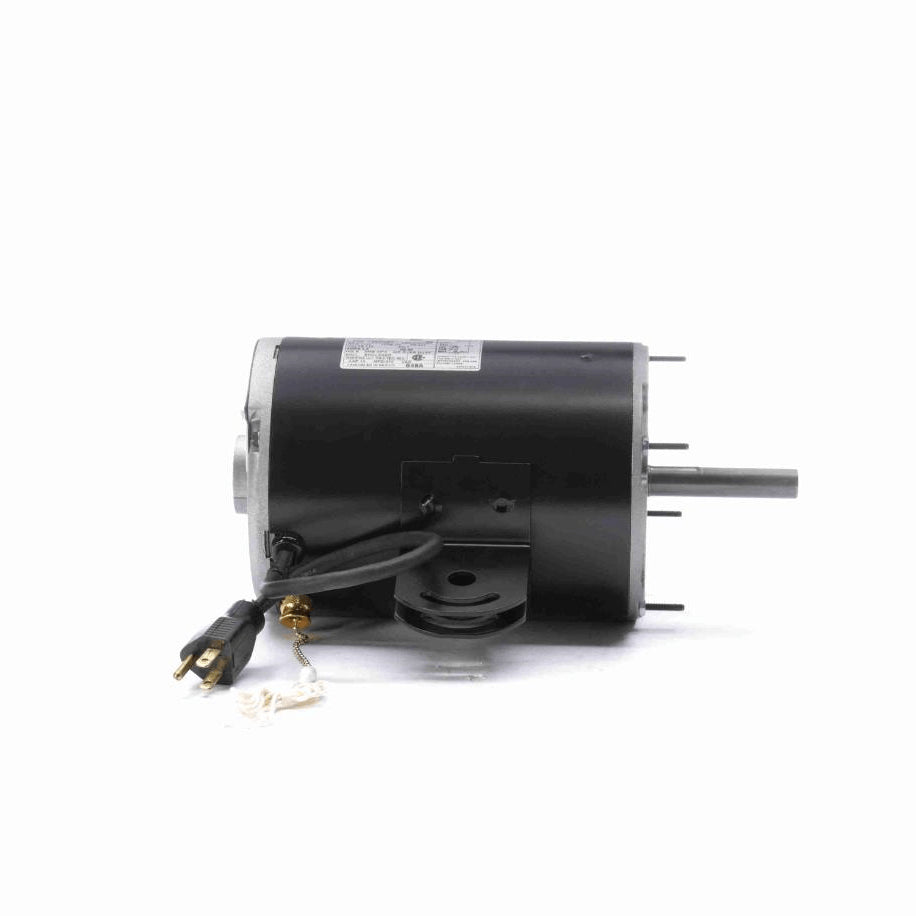

- Pedestal Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/8" Diameter Shaft with Flat
- 5.5" Leads with Molded Plug
- Yoke Mount
Additional Information
Thermal ProtectionAutomatic
Speed1100 rpm
Current5.6 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight23.00 LB
Country Of originMexico
Output HP1/2 Hp
Output KW0.37 kW
Service Factor1
Frame48Y
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingYoke
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length7.00 in
Shaft Diameter0.625 in
Shaft Extension3.0 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
