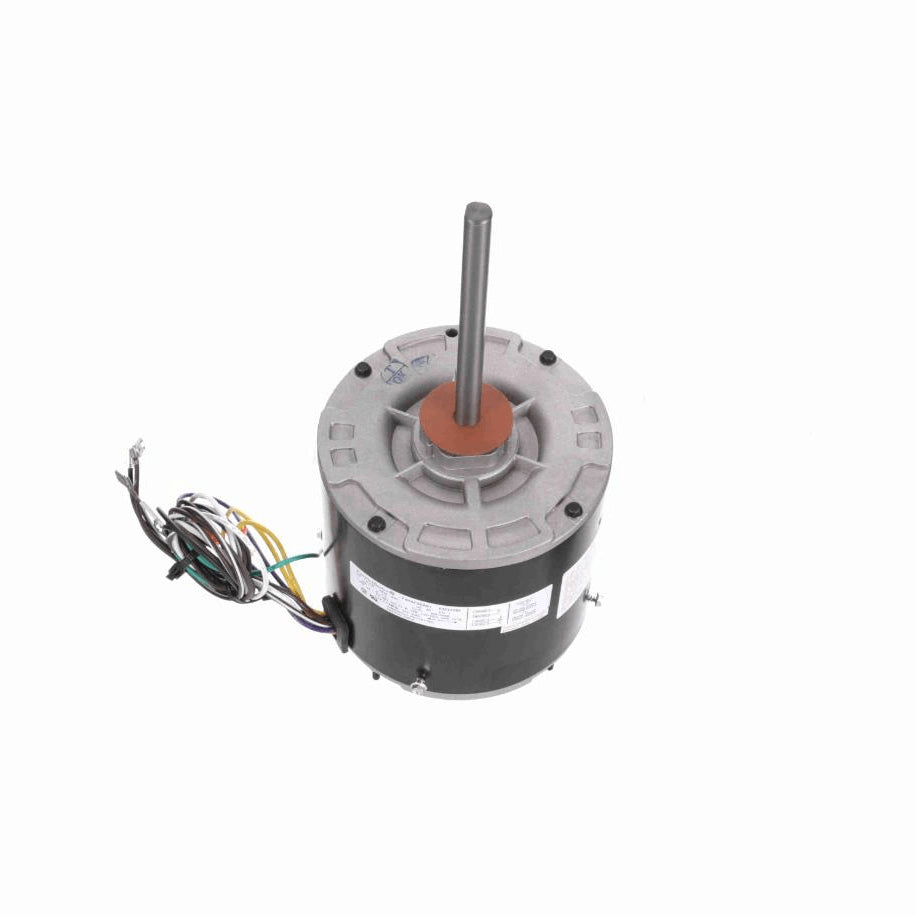

Century EM3209F PRO-E SERIES® Condenser Fan Motor, 1/3-1/8 HP, 1 Ph, 60 Hz, 460 V, 825 RPM, 1 Speed, 48 Frame, ENCLOSED

Century EM3209F PRO-E SERIES® Condenser Fan Motor, 1/3-1/8 HP, 1 Ph, 60 Hz, 460 V, 825 RPM, 1 Speed, 48 Frame, ENCLOSED

Dropship

SKU SKU:kpi045-EM3209F

GTIN : 786674069887

MPN : EM3209F

Regular price $242.52 USD
Regular price Sale price $242.52 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Century - EM3209F

  • Pro-E Series® - Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class F Insulation, 70°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 36" Leads
  • Extended Studs Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)

Additional Information

Thermal ProtectionAutomatic
Speed825 rpm
Current1.0 A
Number of Speeds1
Ambient Temperature70 °C
ULRecognized
Insulation ClassF
CSAY
Weight16.00 LB
Country Of originIndia
Output HP1/3-1/8 Hp
Output KW0.25 kW
Service Factor1
Frame48Y
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles8
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.24 in
Shaft Diameter0.500 in
Shaft Extension6.0 in
CEN
Starting MethodAcross The Line
CategoryElectric Motors
Height6.81
Length13.78
ManufacturerCentury
MpnEM3209F
SubcategoryAC Motors - NEMA
TypeHVAC - R Motors
Weight16
Width6.41
