category:
Electric Motors
height:
8.5
length:
14
manufacturer:
Century
mpn:
732A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
28
width:
8
Product Overview

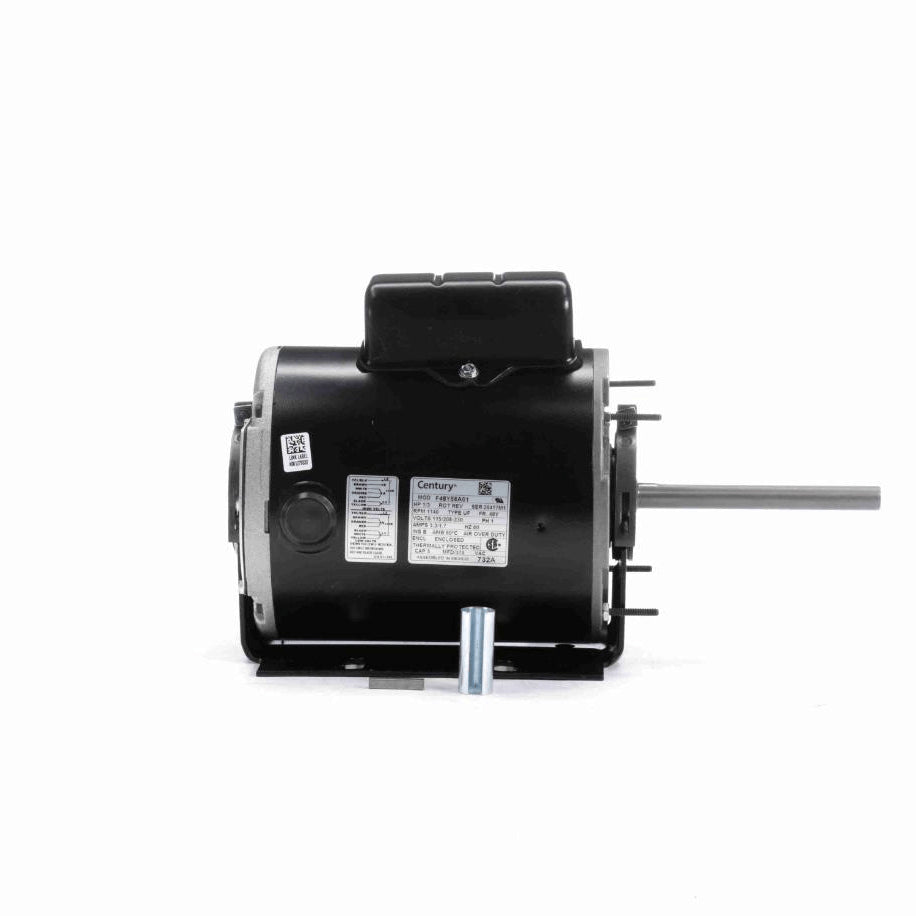

- Unit Heater Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 5.5" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1140 rpm
Current3.3/1.7 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight28.00 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
FrameF48Y
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Base
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.88 in
Shaft Diameter0.500 in
Shaft Extension5.08 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
