category:
Electric Motors
country_of_origin:
MX
height:
9.81
length:
12.87
manufacturer:
Century
mpn:
UHH1036NB
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
15
width:
6.81

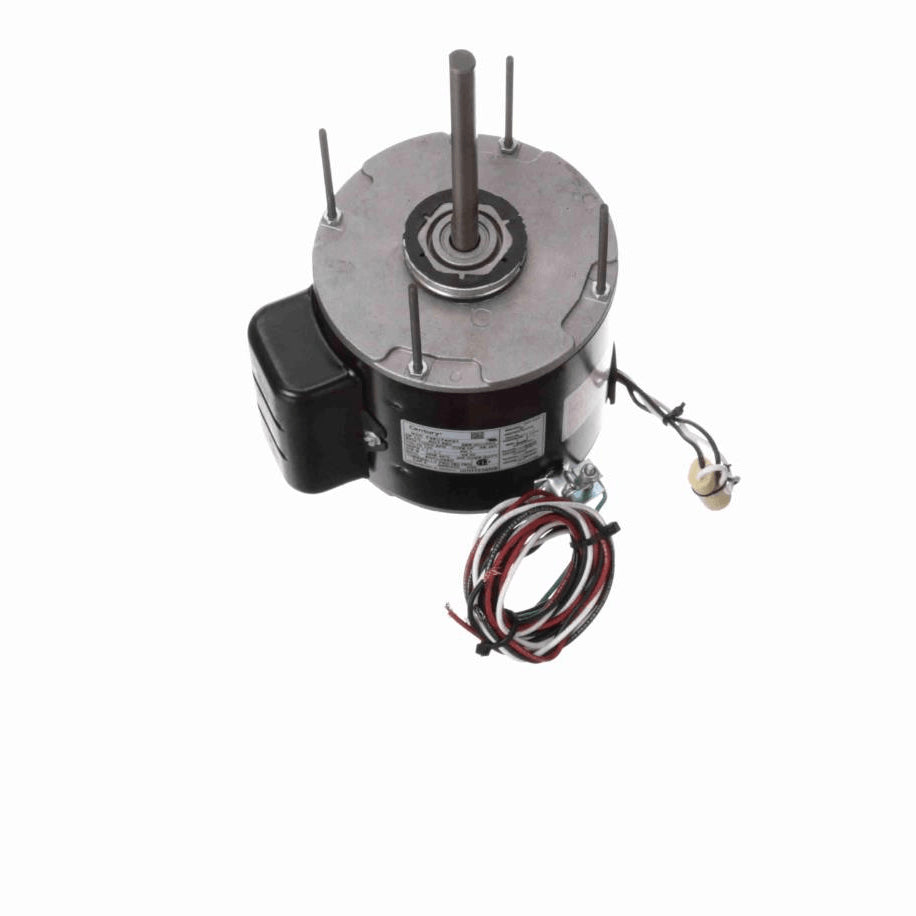

Product Overview
- Unit Heater Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 6 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 58" Leads
- Extended Studs Shaft End, Resilient Rings
Additional Information
Thermal ProtectionAutomatic
Speed1100 rpm
Current1.7-1.1 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight15.00 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame48Y
EnclosureTotally Enclosed
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Ring/Extended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.50 in
Shaft Diameter0.500 in
Shaft Extension5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
