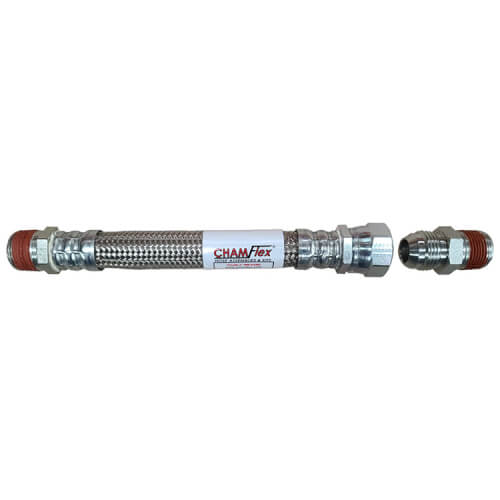

ChamFlex CH050018FM1000 1/2" x 18" ChamFlex Hose Swivel MNPT X Fixed MNPT

Product Overview

ChamFlex is a "Class A" fire rated hose assembly with fixed male pipe thread on one end and swivel with male pipe adapter on the other end. ChamFlex's tube compound has been tested to, and awarded, a UL 94 V-0 fire rating, the highest standard in the industry. The patented process, which bonds the inner tube to a stainless steel wire outer braid minimizes the possibility of the hose assembly kinking during installation.

• Hose Size: 1/2"
• Hose Length: 18"
• Inner Tube: EPTF - Santoprene with UL 94 V-0 Fire Rating
• Outer Braid: 302/304 Stainless Steel
• Working Pressure: 400 PSI
• Temperature Range: -40°F to 212°F
• Hose/Adapter Connection: All Metal JIC Flare Connection
