category:
Air Conditioning Installation Parts
height:
0.75
length:
48"
manufacturer:
ChamFlex
mpn:
CH075048FM1000
subcategory:
Heat Pump Braided Hoses
width:
0.75
Product Description

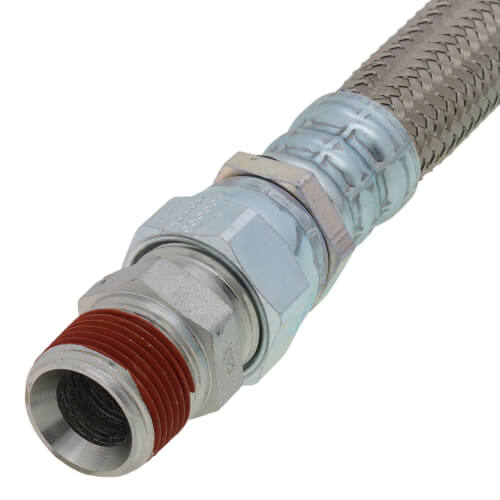

ChamFlex - CH075048FM1000 3/4" x 48" Stainless Steel Braided Hose Assembly for Water Source Heat Pumps, Fan Coils, VAV Boxes and Chilled Beams. ChamFlex®Hoses are made in the USA and comply with requirements for the "Buy American Act". ChamFlex® Standard hose connections are Rigid Male NPTF x 37° JIC/Male Pipe Swivel adapter. Other connection options include Male JIC Adapter x Female Pipe or Brass Sweat adapters. Hoses have a minimum of 400psi working pressure; with a standard burst pressure of 4x the working pressure. Hoses are rated for temperatures between -40°F to 212°F. ChamFlex® Hoses have no Washers or O-rings and a special tube component that has been tested and meets the UL-94 VO Fire Rating
Additional Information
Weight1.75
ERP ID248388
BrandChamflex
Coil Length48"
CompositionStainless Steel Braid Covered Thermoplastic Tube, Plated Steel Fittings, Adapters
Connection Size3/4"
Country of OriginUSA
Cubic Measurement0.0156
Diameter.75"
Dimensional Weight41
