category:
Air Conditioning Installation Parts
height:
1
length:
72"
manufacturer:
ChamFlex
mpn:
CH100072FM1000
subcategory:
Heat Pump Braided Hoses
weight:
1.5
width:
1
Product Description

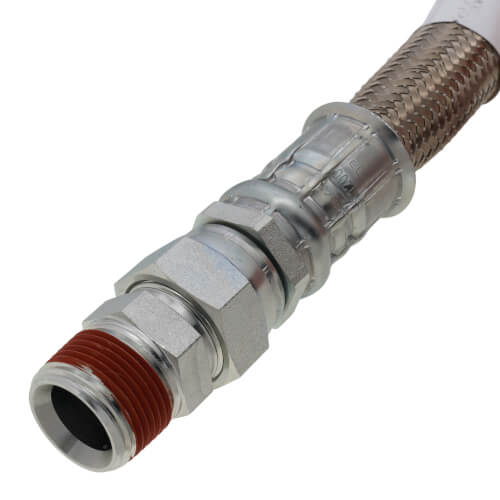

ChamFlex - CH100072FM1000 1" x 72" Stainless Steel Braided Hose Assembly for Water Source Heat Pumps, Fan Coils, VAV Boxes and Chilled Beams. ChamFlex®Hoses are made in the USA and comply with requirements for the "Buy American Act". ChamFlex® Standard hose connections are Rigid Male NPTF x 37° JIC/Male Pipe Swivel adapter. Other connection options include Male JIC Adapter x Female Pipe or Brass Sweat adapters. Hoses have a minimum of 400psi working pressure; with a standard burst pressure of 4x the working pressure. Hoses are rated for temperatures between -40°F to 212°F. ChamFlex® Hoses have no Washers or O-rings and a special tube component that has been tested and meets the UL-94 VO Fire Rating
Additional Information
Weight4
ERP ID101295
BrandChamflex
Coil Length72"
CompositionStainless Steel Braid Covered Thermoplastic Tube, Plated Steel Fittings, Adapters
Connection Size1"
Country of OriginUSA
Cubic Measurement0.0417
Diameter1"
Dimensional Weight63
Height
