category:
MEASURING & LEVELING TOOLS
manufacturer:
CURV-O-MARK
mpn:
430-14796
subcategory:
LEVELS
Product Description

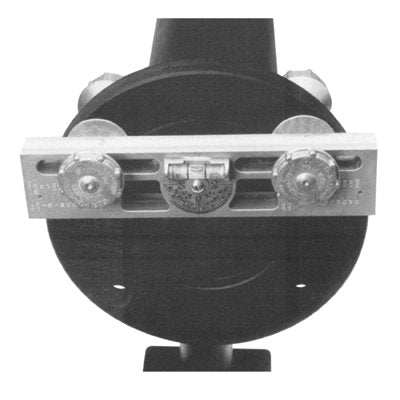

CURV-O-MARK - 430-14796
| Manufacturer Part Number | 14796 |
|---|---|
| GTIN | 626053604943 |
| Family | Contour Universal Levels |
| Manufacturer | Kimberly-Clark Professional |
| Manufacturer URL | http://www.kcprofessional.com/us/ |
| Hazmat | N |
| Country of Origin | CN |
| Features | Multi-purpose tool for ensuring accurate leveling, setting predetermined pitch of a string of pipe, setting angle of laterals to precise degree, truing vertical runs, and two-holing flanges Two cast-in 25 lb. pull magnets hold unit in place on any steel surface, including the underside of a pipe or beam Features 360 adjustable dial bubble protractor Cast-in table indicates rise-per-foot in inches and meters Cast-in groove makes level self-centering on contour of the pipe |
| Accuracy | 2.5 degrees |
| Height [Nom] | 2 in |
| Includes | (2) Threaded, Self-Aligning Conical Spacers; (2) Conical Nuts; (2) Bolt Units |
| Length [Nom] | 9.75 in |
| Size 1 | Hole Spaced 2 1/4 - 8 in Centers |
| Width [Nom] | 4.75 in |
| Wt. | 2.23 lb |
