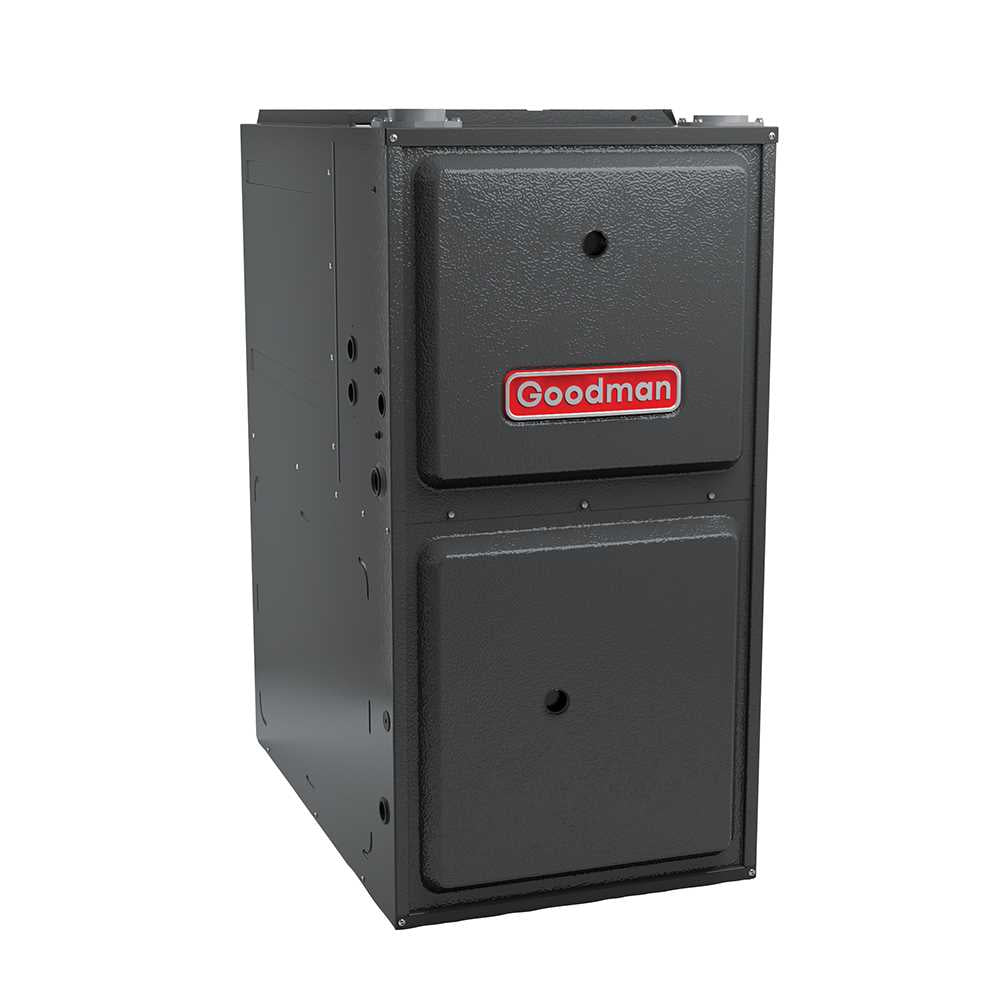

Daikin - GMVC961005CN Goodman 96% AFUE GMVC96 Gas Furnace Variable Speed ECM, Two Stage, Upflow/Horizontal, 100000 BTUH/H, ComfortBridge Technology compatible
Specifications :
- Heavy-duty aluminized-steel tubular heat exchanger
- Efficient and quiet variable-speed Blower
- Integrated communicating ComfortBridge„¢ technology
- Commissioning and diagnostics via on board Bluetooth with the CoolCloud„¢ phone and tablet application
- Stainless-steel sloped secondary heat exchanger
- Silicon Nitride igniter
- Dual 7-segment display
- Color-coded low-voltage terminals
- Two-Stage gas valve
- All models comply with California 40 ng/J
- 1 AHRI Certified, ETL Listed
- 1 Energy Star
- 1 Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
Cabinet Features :
- Multi-position installation: upflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- Easy to install top venting with optional side vent
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (Qleak) less than or equal to 2%
- Fully insulated heat exchanger and blower section
- Bottom or side return air applications
- Heavy-gage steel cabinet with durable finish
Additional Information
BrandGoodman
Prop65 Label RequiredTRUE
Unit Depth29 in
Unit Height34-1/2 in
Unit Width21 in
Efficiency0.96
Family DescriptionComfortBridgeâ¢-Compatible Two-Stage, Variable-Speed ECM Gas Furnace Up to 96% AFUE
Model Efficiency0.96
FamilyGMVC96
Unit TypeIndoor
Min. Circuit14.4 A
Motor Speed TypeVariable Speed ECM
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
AFUE96 %
High-Fire Input Capacity100000 Btu
High-Fire Output Capacity96100
Capacity100000 Btu
CategoryGas Furnace
Depth29 in
Height34-1/2 in
ManufacturerDaikin
MpnGMVC961005CN
Seer0.96
Subcategory96% AFUE
Type100000 BTU
Voltage60 Hz/1 Ph/115 V
Width21 in
