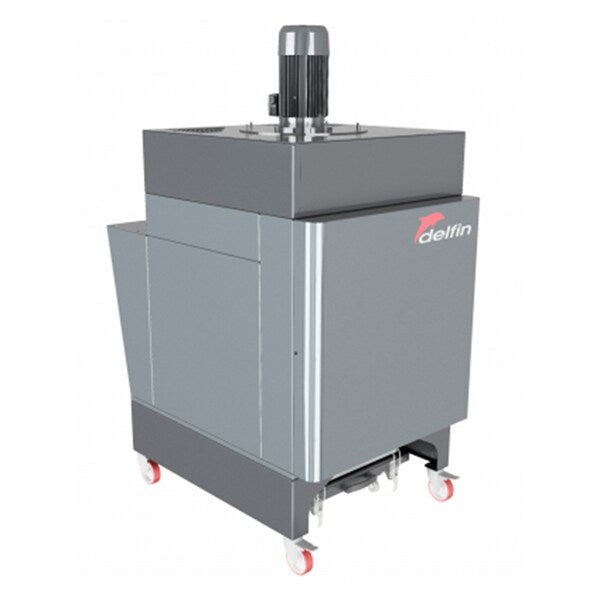

ZEFIRO EV AP 420 Zone 22 - Three phase, 460V- 60Hz, 1.2HP, 9.1 inH2O, 412 CFM, 100 mm inlet, 12 gallon capacity, Polyester Class L Star filter with manual filter shaker. High airflow dust collector. Recovery and filtration of light and fine suspended particles of dust. High filter surface with integrated manual filter cleaning system. ATEX Certified and rated for Zone 22.
Features- Compact and customizable
- ATEX Zone 22 certification
- Ideal for 24/7 production cycles
- Powder coated steel construction
- Large filter surface, 114 ft2
- Accessory basket
- Removable collection tank, 26 gal.
- Pneumatic reverse pulse cleaning system
- Optional arm for localized suction
- Building and Construction
- Chemical - Phamaceutal
- Food Industry
- Paper Industry
Capacity26.4 Gallons
CategoryVacuums
Cfm765.2
ColorGray
Country of originItaly
For use withTA.0177.0000 - ARM or SL.2607.0020 (150/150)-For Hose Connection
Height98"
Horsepower3.5
Length33"
ManufacturerDelfin
MpnV319
Product typePortable Industrial Dust Collector
Voltage230
Weight286 lb
Width31"
certificationsUL, Atex Zone 22
decibels 72
duty type Dust Collection
filtration Cartridge - Polyester Anti-static M
frame construction Steel
inlet size 150 mm
motor amps 11.3
power cord length 30 Feet
style Canister
tank construction Steel
type of power Three Phase
water lift14.2"
