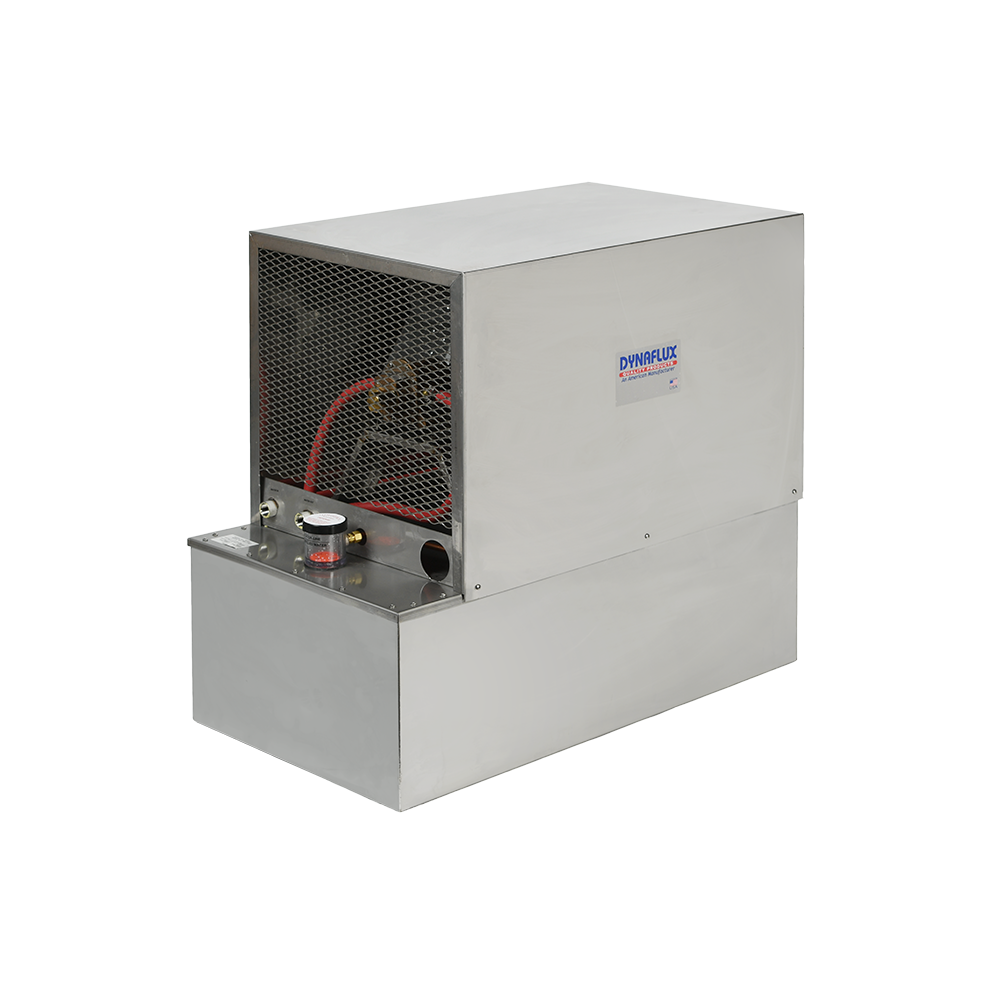

Dynaflux R4000-230/3 R4000 Cooling System (230 Volt / 3 Phase)

Product Description

Dynaflux - R4000-230/3 R4000 Cooling System

Specifiction

• Factory set at 50 psi adjustable to 100 psi
• 25 gallon reservoir
• 115 / 230 VAC 50 / 60 Hz 1 ph
• 14.6 / 7.3 amp : 60 Hz 1 ph
• 230 / 190 VAC 50 / 60 Hz 3 ph
• 460 / 380 VAC 50 / 60 Hz 3 ph
• 5.4 / 2.7 amp: 60 Hz 3 ph
• 55,000 BTU
• Dimensions: 36″L x 19.5″W x 35″H
• 1/2″ FPT SS Pipe – water in and out
• Visible water level / water flow sight glass
• Net weight: 170 lbs / 77 kg

System Features

• Stainless steel construction eliminates coolant contamination due to electrolysis or chemical reactions.
• All units are plumbed with copper tubing and reinforced hose.
• New extended life pump.
• Air flows into patented high efficiency radiator first for maximum efficiency.
• No external plumbing is required because of closed loop water system.
• A water level float gauge and filler cap are combined in a single unit multi-purpose sight glass which enables operator to observe return water at a distance.

R4000: Rotary GEAR Pump (only)

• 10.0 gpm at 50 psi
• Built in by-pass to tank
• Rebuildable Pump (Repair Kit No. P4018)
