category:
Threaded Insert
manufacturer:
E-Z LOK
mpn:
335-6
upc:
839137000863
weight:
0.1305 lbs
Product Description

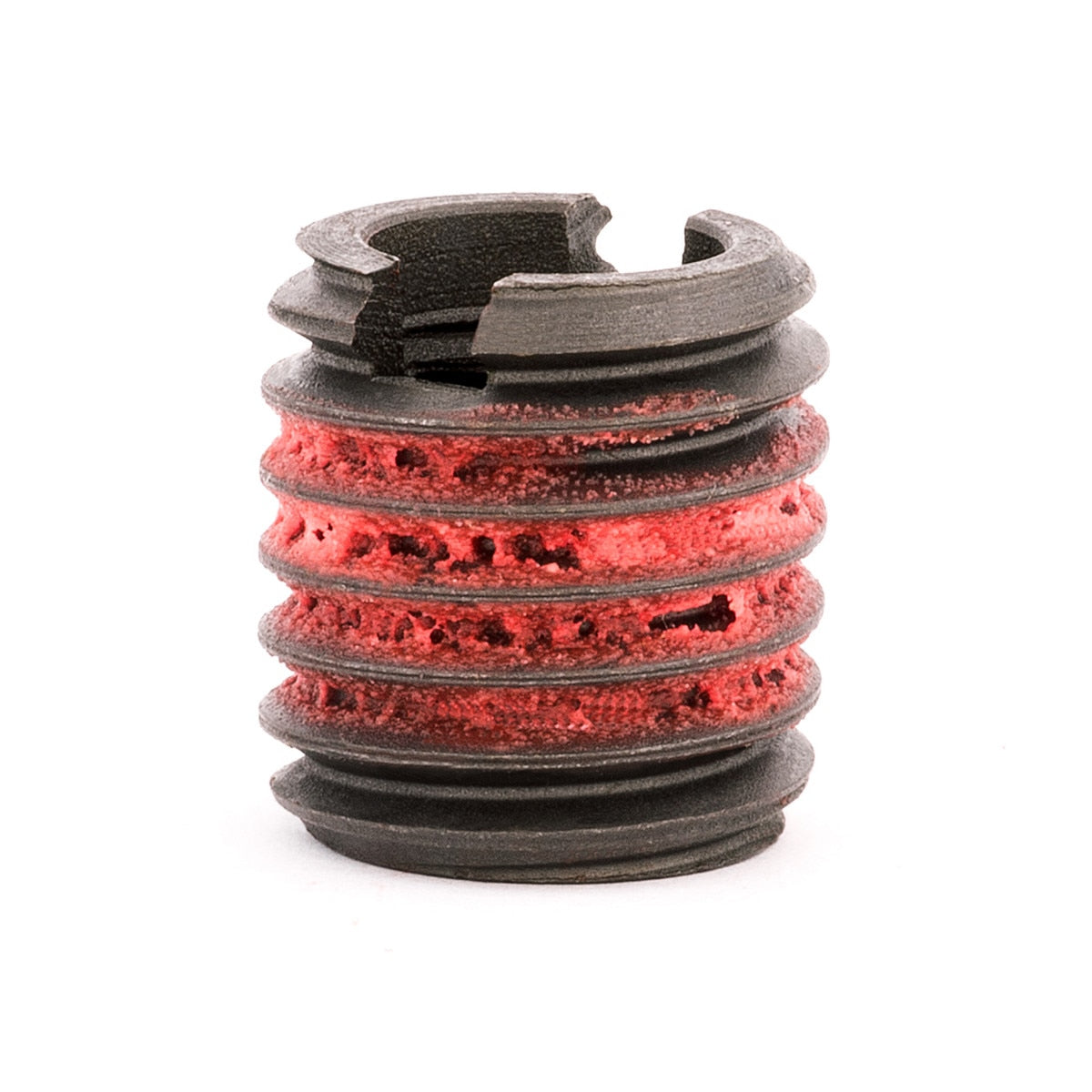

E-Z LOK™ (Solid Wall) threaded inserts with Extra Heavy Wall are ideal for reducing the size of tapped holes, typically after previous drilling/re-tapping operations. Like all E-Z LOK™ (Solid Wall) threaded inserts, the Extra Heavy Wall design is installed using standard drills and taps. Installation is performed with a screwdriver, bolt/jam nut, or optional E-Z LOK™ drive tool.
Features- Strong: screw machined out of solid steel for greater strength; superior pull out resistance.
- Easy to install: solid threaded inserts install with standard tools; simply drill, tap and thread like any ordinary fastener
- Self-Locking: pre-applied adhesive activates upon installation; inserts won't back out
- Standard size and pitch external threads eliminate need for special taps or installation tools.
- Install using a screwdriver, bolt and jam nut, or optional E-Z LOK™ drive tool
- Ideal for soft metals, like aluminum, cast iron, and magnesium
- Soft metals: aluminum, cast iron, magnesium, etc.
Additional Information
E-Z Lok P/N: 335-6
For Use in: Metal
Sub-Category: Extra Heavy Wall
Style: Solid Wall
Material: Steel - Carbon
System of Measurement: Inch
Internal Thread: 3/8-16
External Thread: 5/8-11
Drill Size: 17/32
Tap Size: 5/8-11
