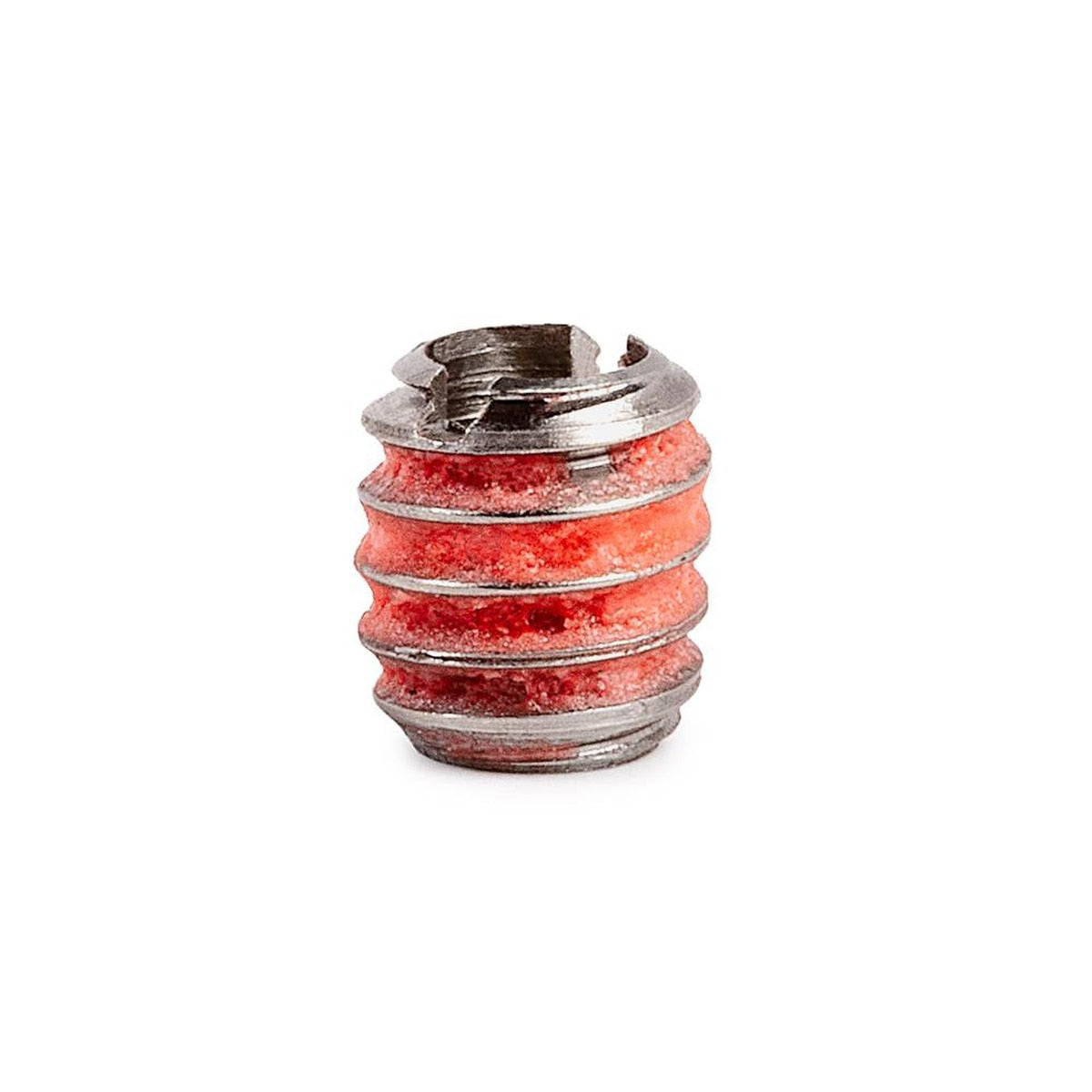

E-Z LOK™ Threaded Insert for Metal - Standard Wall - 316 Stainless - 6-32 x 1/4-20

Product Description

Strong Threads Made Easy

All solid construction E-Z LOK threaded inserts install with standard tools. No special drills...no special taps...no special installation tools.

E-Z LOK external threads are standard size and pitch to permit the use of standard drills and taps. E-Z LOKs can be installed with a screwdriver, bolt/jam nut (except IC series), or optional power drive tool.

E-Z LOKs will not back out or vibrate loose. Immediately upon installation, microencapsulated adhesive begins to set and the newly installed inserts are fastener-ready in 3-5 minutes.

The adhesive seals against liquids and gases to 6,000 psi when fully cured (72 hours).

Features

• Made of 316 stainless steel
• Strong: screw machined out of solid steel for greater strength; superior pull out resistance.
• Easy to install: solid threaded inserts install with standard tools; simply drill, tap and thread like any ordinary fastener
• Self-Locking: pre-applied adhesive activates upon installation; inserts won't back out
• Standard size and pitch external threads eliminate need for special taps or installation tools.
• Install using a screwdriver, bolt and jam nut, or optional E-Z LOK™ drive tool

Applications:

• Soft metals: aluminum, cast iron, magnesium, etc.
