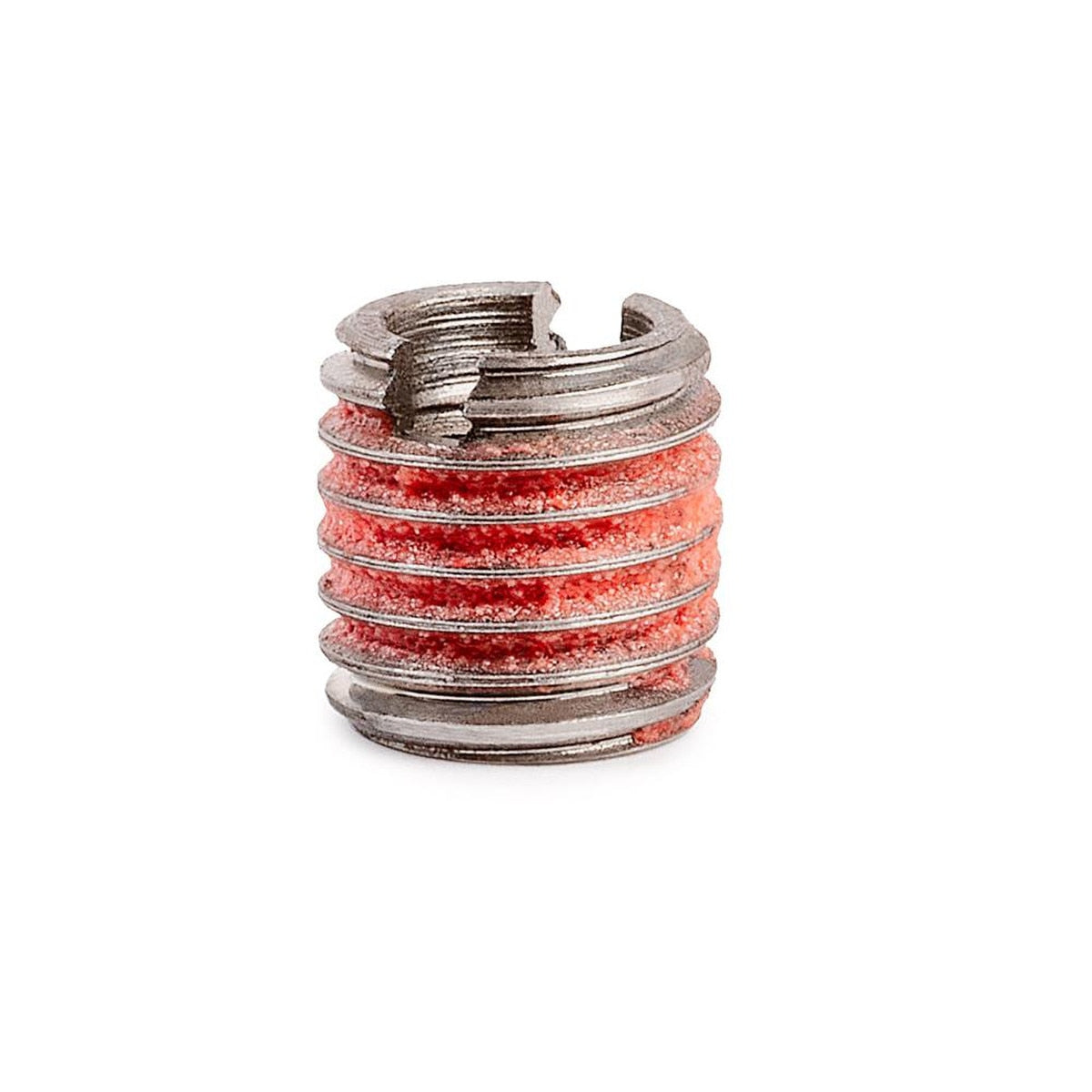

E-Z LOK™ Threaded Insert for Metal - Thin Wall - 303 Stainless Steel - M4-0.7 x 5/16-24 x 0.313" OAL (Pack of 5)

Product Description

E-Z LOK™ (Solid Wall) Thin Wall inserts offer the advantages of E-Z LOK™ (Solid Wall) Standard Wall threaded inserts while using a hole size virtually the same as E-Z Coil™ inserts. Like all E-Z LOK™ (Solid Wall) threaded inserts, the Thin Wall design is installed using standard drills and taps. Installation is performed with a screwdriver, bolt/jam nut, or optional E-Z LOK™ drive tool.

E-Z LOK™ (Solid Wall) Thin Wall inserts are self-locking. Immediately upon installation, pre-applied LOCTITE™ on the external threads begins to set and the newly installed insert is fastener ready in minutes. At full cure (72 hours), the Loctite™ seals against liquids and gases to pressures of 6,000 psi.

Features

• Strong: screw machined out of solid steel for greater strength; superior pull out resistance.
• Thin Wall: all the advantages of the standard E-Z LOK threaded inserts in a smaller overall diameter
• Easy to install: solid threaded inserts install with standard tools; simply drill, tap and thread like any ordinary fastener
• Self-Locking: pre-applied adhesive activates upon installation; inserts won't back out
• Standard size and pitch external threads eliminate need for special taps or installation tools.
• Install using a screwdriver, bolt and jam nut, or optional E-Z LOK™ drive tool

Applications:

• Soft metals: aluminum, cast iron, magnesium, etc.
