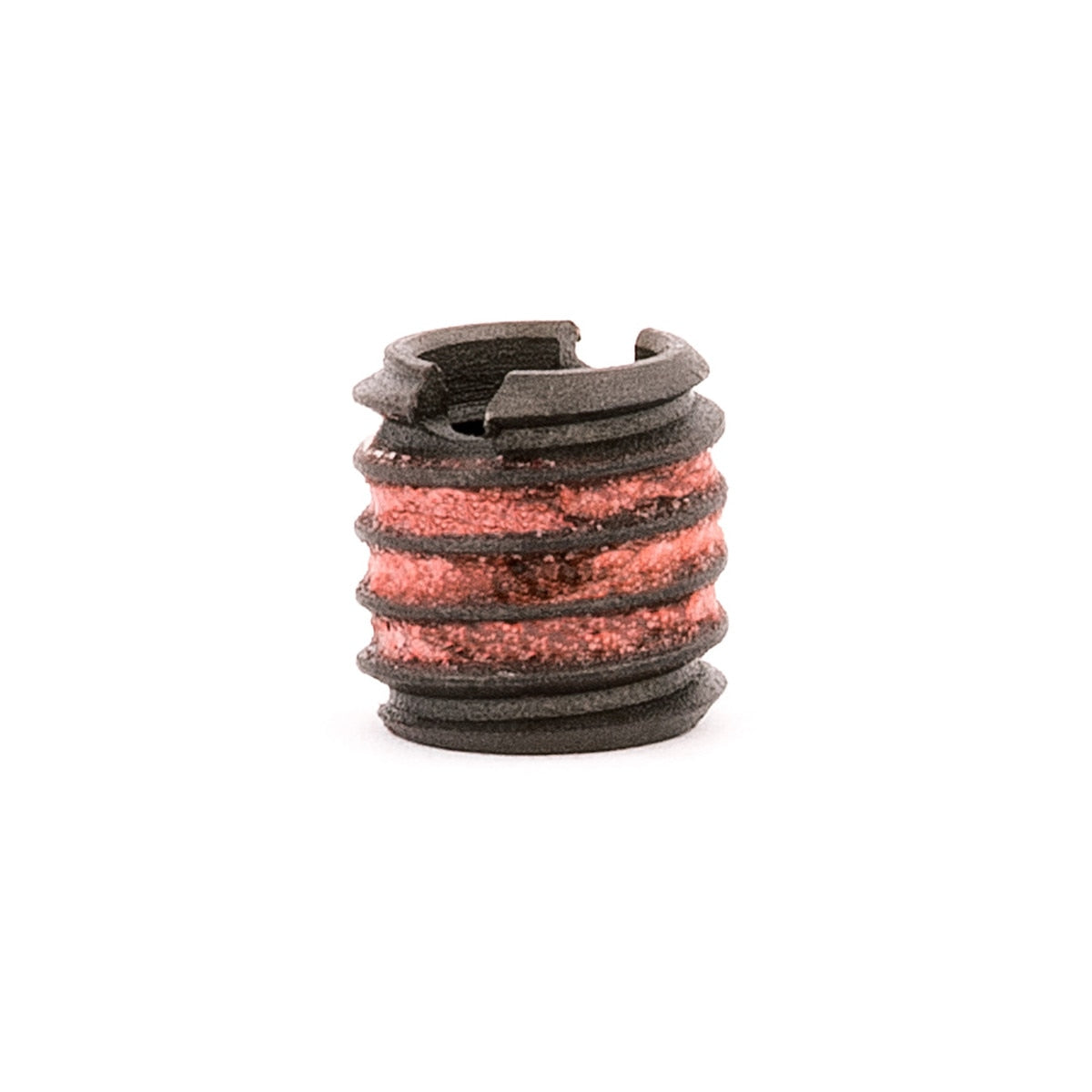

E-Z LOK™ Threaded Insert for Metal - Thin Wall - Carbon Steel - 10-24 x 5/16-18 (Pack of 10)

Product Description

E-Z LOK™ (Solid Wall) Thin Wall inserts offer the advantages of E-Z LOK™ (Solid Wall) Standard Wall threaded inserts while using a hole size virtually the same as E-Z Coil™ inserts.

Ideal for applications where thread insert size and weight are an issue, Thin Wall threaded inserts pack all the traditional E-Z LOK™ (Solid Wall) advantages into a smaller diameter design. Available with internal thread sizes from #10 to 1/2 and M4 to M12, E-Z LOK™ (Solid Wall) Thin Wall threaded inserts install with standard tools.

E-Z LOK™ (Solid Wall) Thin Wall solid threaded inserts use a modified external thread to reduce the hole diameter needed to achieve the desired internal thread size. To achieve this size reduction, these inserts have an oversized minor diameter on the OD thread. This provides sufficient wall thickness to maintain insert integrity, but does necessitate the use of a drill that is larger than typically used with the corresponding tap.

For example, a Standard Wall insert with a 5/8-11 external thread (7/16-14 ID) requires the use of a 17/32 drill. A Thin Wall insert with a 5/8-11 external thread (1/2-13 ID) requires the use of a 37/64 drill.

E-Z LOK™ (Solid Wall) Thin Wall inserts are self-locking. Immediately upon installation, pre-applied LOCTITE™ on the external threads begins to set and the newly installed insert is fastener ready in minutes. At full cure (72 hours), the Loctite™ seals against liquids and gases to pressures of 6,000 psi.

• Strong: screw machined out of solid steel for greater strength; superior pull out resistance.
• Thin Wall: all the advantages of the standard E-Z LOK threaded inserts in a smaller overall diameter
• Easy to install: solid threaded inserts install with standard tools; simply drill, tap and thread like any ordinary fastener
• Self-Locking: pre-applied adhesive activates upon installation; inserts won't back out
• Standard size and pitch external threads eliminate need for special taps or installation tools.
• Install using a screwdriver, bolt and jam nut, or optional E-Z LOK™ drive tool

• Soft metals: aluminum, cast iron, magnesium, etc.
