Product Description

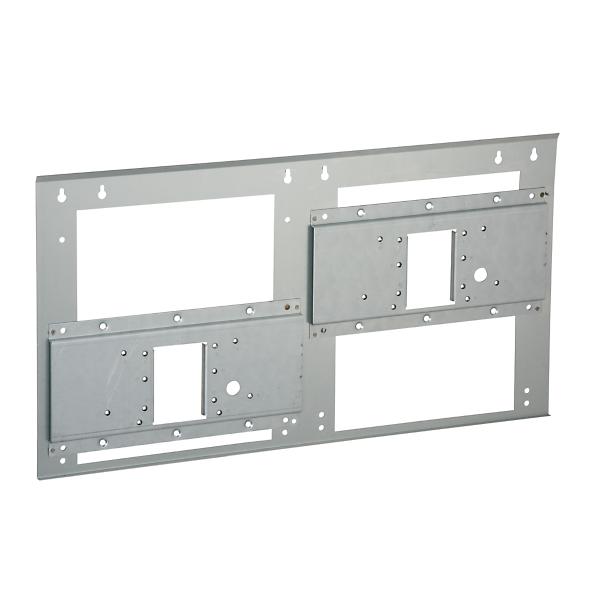

Elkay - MP20RA We carry a range of mounting frames, plates and other installation support systems to properly position and enhance our refrigerated and non-refrigerated bottle filling stations, water coolers, drinking fountains and chillers of all configurations.
Features
- Reversed two-station surface mounting plate provides additional support for on-wall drinking water model installations.
- Compatible with specific Elkay non-refrigerated models; see specifications tab for details.
- Mounting frame included with specific SwirlFlo models.
- Secures directly to a variety of load-bearing surfaces.
- Refer to end product for ADA compliance information.
- Built in the USA.
Additional Information
MaterialGalvanized Steel
Number of Stations2
TypeMounting Options

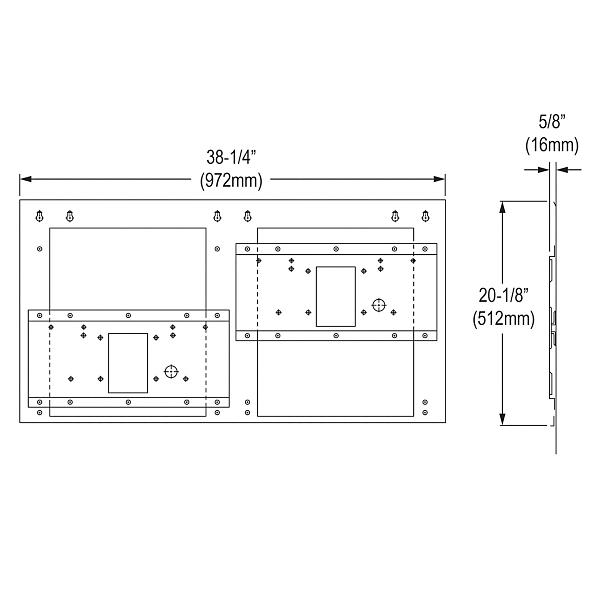

DimensionsL: 38-1/4",W: 5/8",H: 20-1/8"
Bubbler StyleN/A
Mounting OptionWall Mount (Inwall Frame/Plate)
Installation LocationIndoor
Application TypeOffice + Other
Shipping DimensionsL: 42-3/4",W: 3",H: 24-1/2"
Shipping Weight18 LBS
Included with ProductMounting Frame Assembly
Country Of OriginUSA
ADANo
NoteMounting frame included with Elkay EDFPB(V)M117FPRAK and EDFPB(V)M117RAK non-refrigerated models.
