category:
Valves
manufacturer:
White Rodgers
mpn:
060395
subcategory:
Diaphragm Solenoid Valve
Product Description

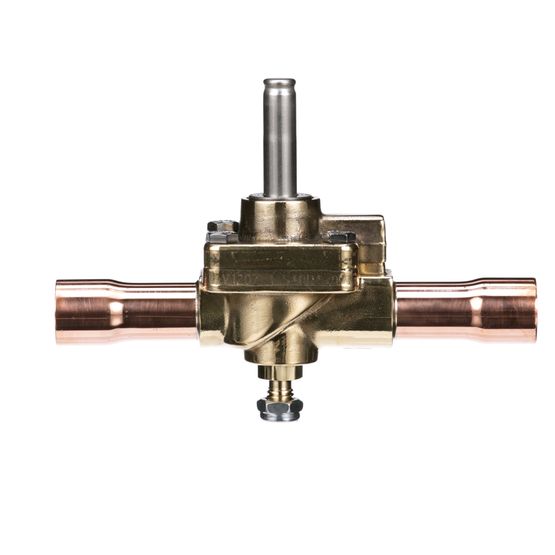

White Rodgers - 060395 The 540RA is a 2-way, normally open diaphragm valve. 540RA valves are used for liquid, suction and hot gas service.
- Can be brazed into the line without disassembly
- PTFE diaphragm
- Extended ends for easy installation
- Long-life molded coils
- Low pressure differential required for full opening
Additional Information
Valve TypeDiaphragm, 2-Way, Normally Open
Port Size9/16
Inlet Connection Size250 psig
Outlet Connection Size7/8 ODF Extended End
Special FeatureStandard Valve
Maximum Fluid Temperature250°F
Maximum Working Pressure500 psig
MOPD250 psig
