category:
Liquid Line Filter-Driers & Suction Line
manufacturer:
White Rodgers
mpn:
048222
subcategory:
Ek Series Liquid Line Filter Driers
Product Description

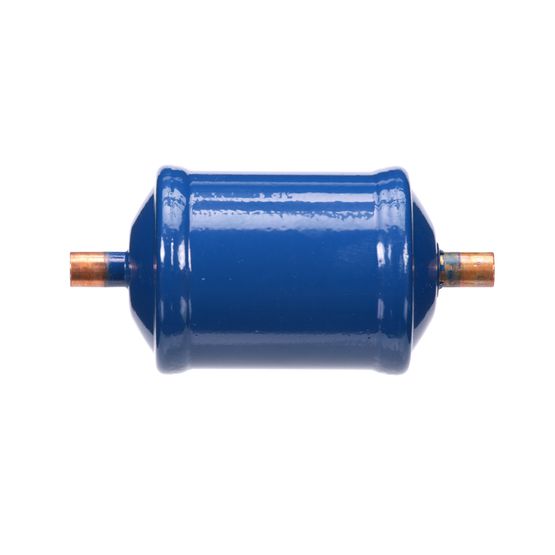

White Rodgers - 048222 The EK Liquid Line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration. The EK is a premium universal replacement liquid line filter drier for CFC, HCFC, and HFC refrigerants including R-12, R-134a, R-22, R-404A, R-407C, R-410A, R-500, R-502, and R-507.
Features:
- Filtration first for more effective use of surface area of desiccant
- High moisture and acid removal capacity
- Solid copper connections
- Corrosion resistant epoxy powder paint finish
- Approved for POE oils with CopelandÞ compressors
- Shock resistant steel shell construction
Additional Information
Inlet Connection Size5/8 SAE Flare
Outlet Connection Size680 psig
Maximum Working Pressure680 psig
Unit Size41 Cubic inches
Access TypeNone
Desiccant BlendBlend optimized for high water capacity and acid capacity
Filtration20 microns
