Product Description

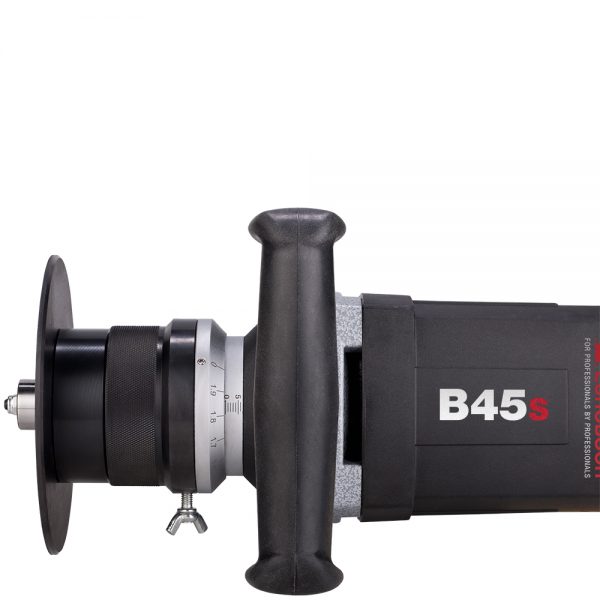

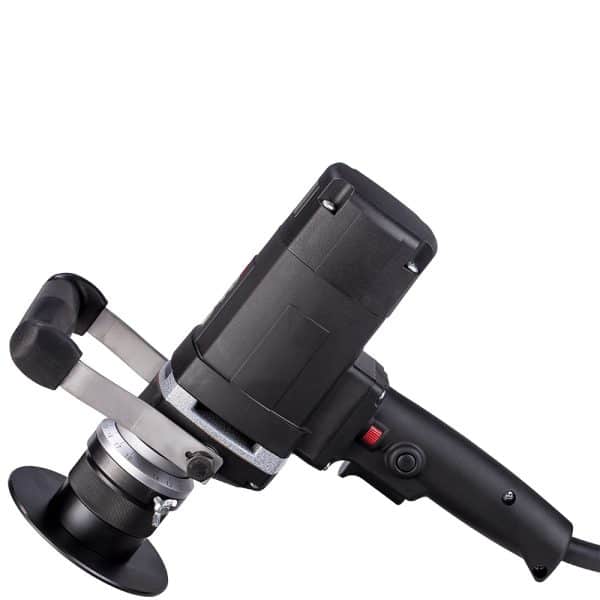

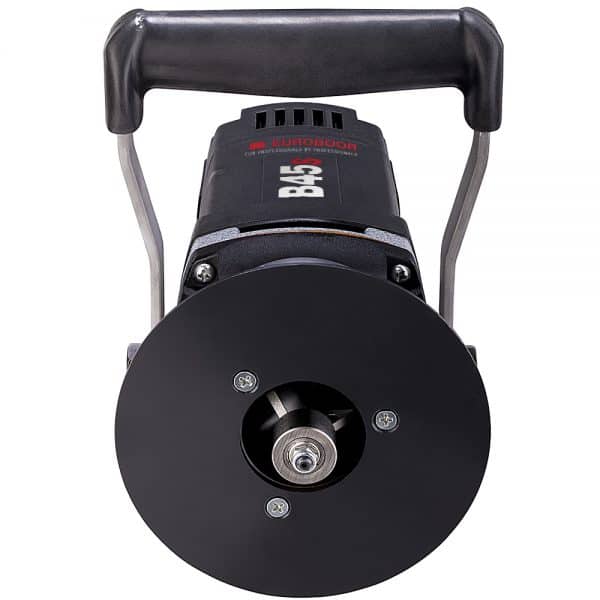

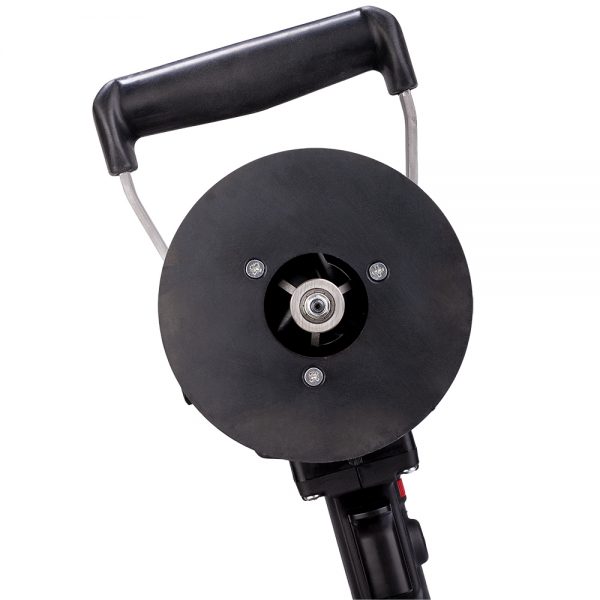

The Euroboor B45S benefits from quick and easy bevel width adjustment with clear indicator. This bevelling machine has a maximum bevel width of 15/64", at an angle of 45°.The spindle speed adjustment range makes the B45S suitable for various materials. The electronic speed stabilization and overheat protection take care of creating perfect finishes with the greatest of ease.
package contain- 1x cardboard box
- 1x bevelling machine B45S
- 1x 45° milling head with cutting inserts
- 1x open-end spanner 22 mm (7/8")
- 1x C-spanner
- 1x L-type torx key
- 1x extra side handle
- 1x user manual
Properties
Overheat protection
Adjustable speed
| Connection | |
|---|---|
| connection 1 model | inside |
| connection 1 type | thread |
| Dimensions | |
| maximum bevel size at 45 degrees (millimeter) | 6 |
| maximum bevel size at 45 degrees (inch) | 1/4 |
| thread pitch (millimeter) | 1.75 |
| thread size (millimeter) | 12 |
| length (inch) | 18 |
| width (inch) | 5 3/8 |
| length (millimeter) | 458 |
| width (millimeter) | 300 |
| height (inch) | 11 13/16 |
| height (millimeter) | 137 |
| inside / minimum diameter (millimeter) | 20 |
| Properties | |
| electric rotation speed adjustment | yes |
| nett weight (pound) | 10.6 |
| nett weight (kilogram) | 4.8 |
| system of measurement | inch (imperial) |
| application | Bevelling |
| Performance | |
| no-load minimum rotation speed gear 1 (rotations per minute) | 1750 |
| no-load maximum rotation speed gear 1 (rotations per minute) | 5250 |
| load maximum rotation speed gear 1 (rotations per minute) | 5250 |
| Supply | |
| motor power (Ampère) | 11.4 |
| motor power (Watt) | 1250 |
| power supply frequency (Hertz) | 60 |
| power supply current | AC |
| power supply connection | plug according NEMA 5-15 |
| power supply source | mains supply |
| power supply type | electric |
| power supply tension (Volt) | 110 - 120 |
| Usage | |
| minimum machining angle (degrees) | 30 |
| maximum machining angle (degrees) | 45 |
| minimum pipe diameter (inch) | 13/16 |
