Product Description

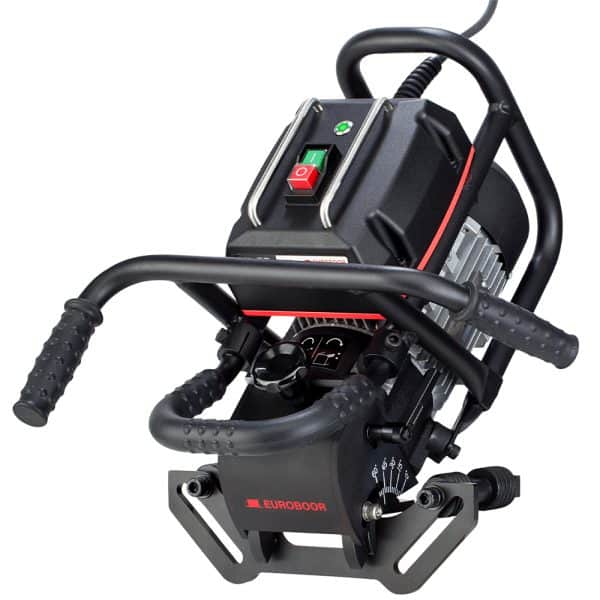

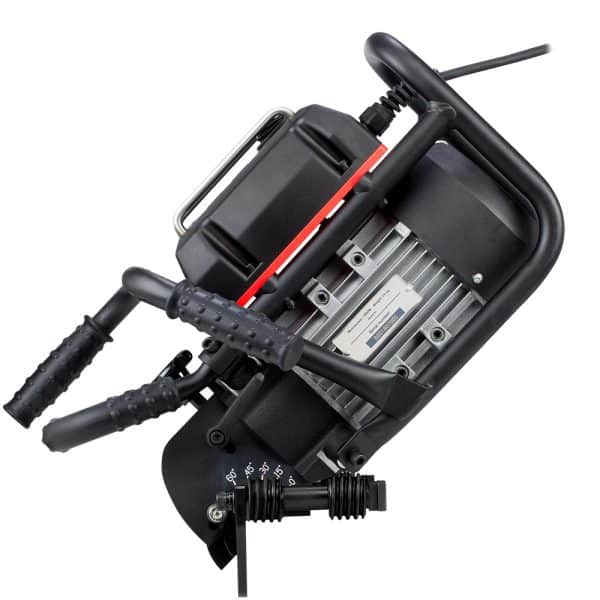

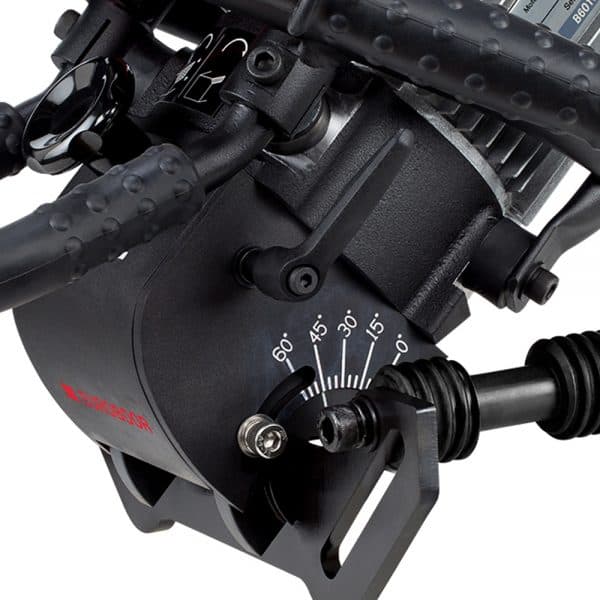

With a maximum bevel width of 15/16 inch, at an angle of 45 ?, the Euroboor B60 bevelling machine is a unique machine in the market. This bevelling machine has a powerful high-efficiency motor and is suitable to cut both plate and pipe material. The Euroboor B60 bevel machine has a clear indicator for angle setting, up to 60? and is easy to control thanks to the clear, precise and simple (protected) control buttons.
package contain- 1x case
- 1x bevelling machine B60
- 1x Allen key 4 mm (5/32")
- 1x Allen key 6 mm (14/64")
- 1x Allen key 8 mm (5/16")
- 1x torx key (T20)
- 1x open-end spanner 18 mm (11/16")
- 1x open-end spanner 32 mm (1 1/4")
- 1x user manual
- 1x ear protection
- 1x safety goggles
- 1x safety gloves
Properties
| Dimensions | |
|---|---|

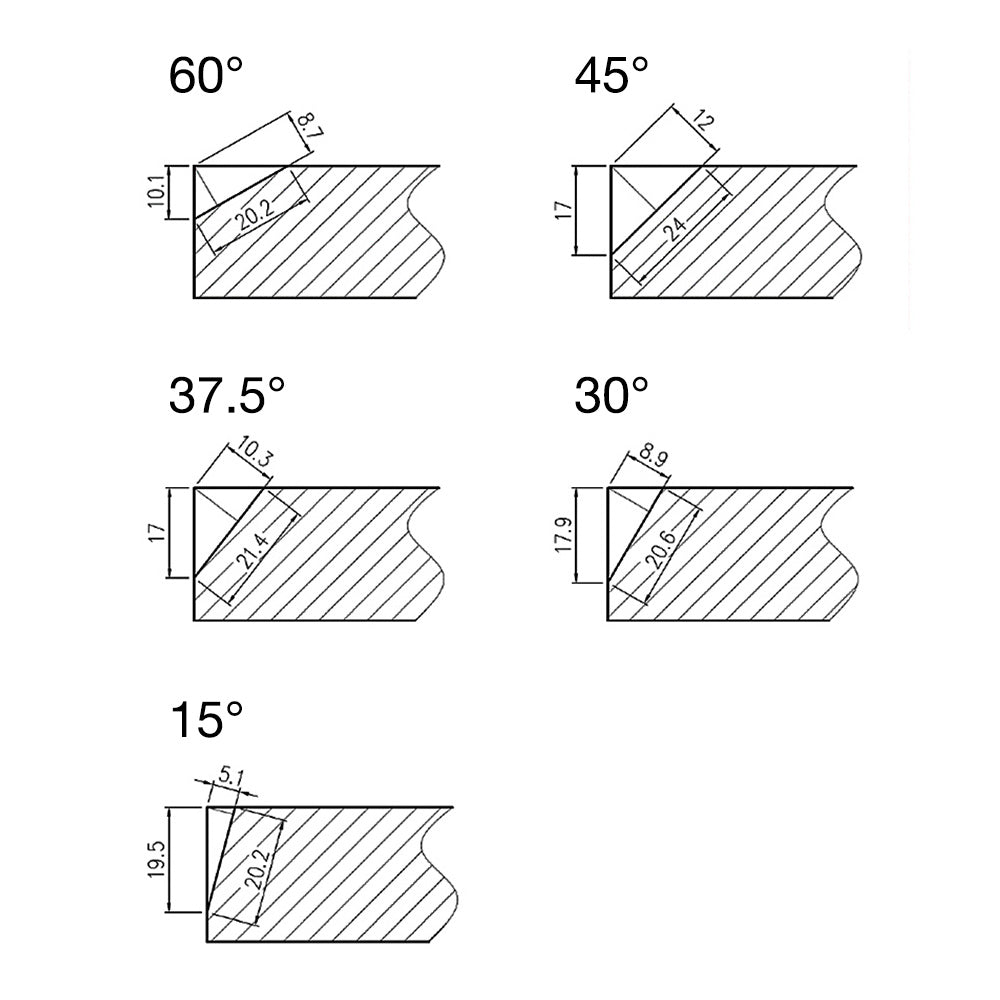

| maximum bevel size at 0 degrees (millimeter) | 24 |
| maximum bevel size at 0 degrees (inch) | 15/16 |
| maximum bevel size at 15 degrees (millimeter) | 20.2 |
| maximum bevel size at 15 degrees (inch) | 4/5 |
| maximum bevel size at 30 degrees (millimeter) | 20.6 |
| maximum bevel size at 30 degrees (inch) | 13/16 |
| maximum bevel size at 37.5 degrees (millimeter) | 21.4 |
| maximum bevel size at 37.5 degrees (inch) | 5/6 |
| maximum bevel size at 45 degrees (millimeter) | 24 |
| maximum bevel size at 45 degrees (inch) | 15/16 |
| maximum bevel size at 60 degrees (millimeter) | 20.4 |
| maximum bevel size at 60 degrees (inch) | 4/5 |
| minimum bevel size (millimeter) | 20.2 |
| minimum bevel size (inch) | 4/5 |
| maximum bevel size (millimeter) | 24 |
| maximum bevel size (inch) | 15/16 |
| length (inch) | 16 15/16 |
| width (inch) | 14 3/4 |
| length (millimeter) | 415 |
| width (millimeter) | 375 |
| height (inch) | 10 9/16 |
| height (millimeter) | 268 |
| Properties | |
| nett weight (pound) | 53 |
| nett weight (kilogram) | 24.1 |
| system of measurement | inch (imperial) |
| application | Bevelling |
| Performance | |
| no-load maximum rotation speed gear 1 (rotations per minute) | 3300 |
| rotation speed gear 1 (rotations per minute) | 3300 |
| Supply | |
| motor power (Ampère) | 10 |
| motor power (Watt) | 1100 |
| power supply frequency (Hertz) | 60 |
| power supply connection | plug according NEMA 5-15 |
| power supply source | mains supply |
| power supply type | electric |
| power supply tension (Volt) | 110 - 120 |
| Usage | |
| maximum machining angle (degrees) | 60 |
| minimum pipe diameter (inch) | 5 15/16 |
