Product Description

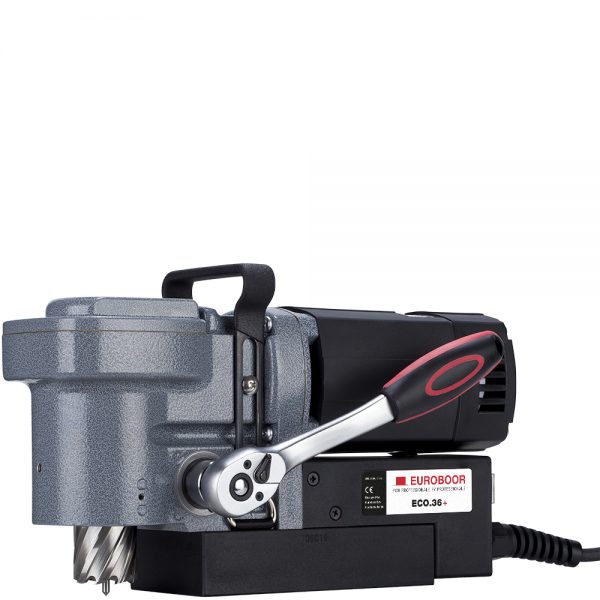

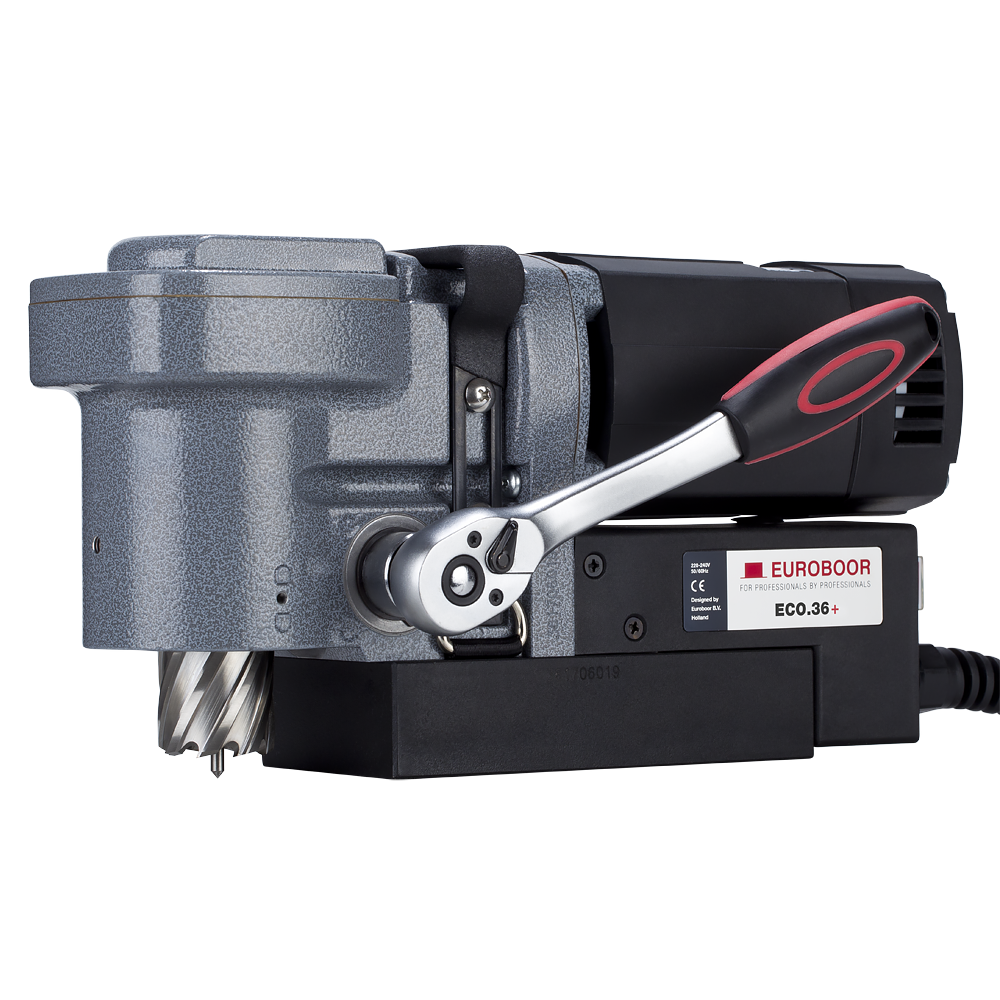

The Euroboor ECO.36+/T magnetic drilling machine is - with only 6 1/2? (165mm) in height - the lowest core drilling machine on the market. The big advantage of the ECO.36+/T is that you can use the same machine for both drilling the hole and tapping the thread. Due to its compact size, this machine is perfect for drilling in tight spaces that conventional machines cannot reach, such as; H-beams, steel structures, plates, profiles, etc.
The portable ECO.36+/T is equipped with innovative electronics that offer even more safety. These significantly reduce the risk of damage to the machine, tool and workpiece. In addition, the Gyro-Tec technology protects the user because the machine automatically switches off in the event of excessive vibration or sudden movement of the machine.
Don't let limited spaces stop you. With the ECO.36+/T you can drill with ease and confidence, no matter how tight the space is.
Features of this machine
• Variable speed
• Tap function for fast and efficient thread tapping
• Integrated motor cable, handle and safety belt
• Left and right mountable feed handle
• Integrated burr cooling and lubrication
• Sliding and removable protective cover
• Oil/lubricant bottle with magnet system
- Variable speed
- Tap function for fast and efficient thread tapping
- Integrated motor cable, handle and safety belt
- Left and right mountable feed handle
- Integrated bur cooling and lubrication
- Sliding and removable protective cover
- Oil/lubricant bottle with magnet system
- 1x case
- 1x magnetic drilling machine ECO.36+/T
- 1x quick switch feed handle
- 1x quick switch extension rod 150mm (5 7/8")
- 1x lubrication/cooling system
- 1x Allen key 3 mm (1/8")

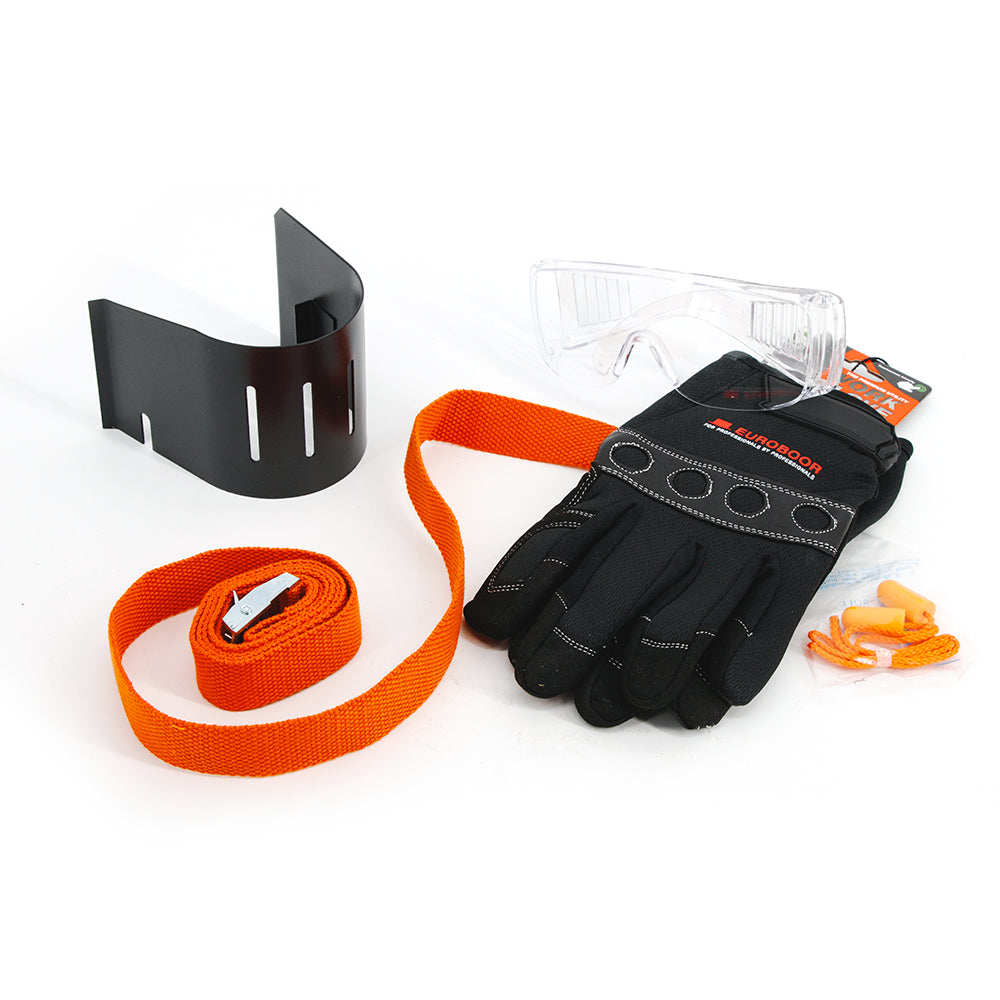

- 1x protection guard
- 1x safety belt
- 1x ear protection
- 1x safety goggles
- 1x safety gloves
- 1x user manual
Properties
| Connection | |
|---|---|
| minimum diameter threading (inch) | 1/8 |
| minimum diameter threading (millimeter) | M3 |
| maximum diameter threading (inch) | 3/8 |
| maximum diameter threading (millimeter) | M12 |
| minimum diameter annular cutters (inch) | 7/16 |
| minimum diameter annular cutters (millimeter) | 12 |
| maximum diameter annular cutters (inch) | 1 7/16 |
| maximum diameter annular cutters (millimeter) | 36 |
| minimum diameter countersinking (inch) | 3/8 |
| minimum diameter countersinking (millimeter) | 10 |
| maximum diameter countersinking (inch) | 1 9/16 |
| maximum diameter countersinking (millimeter) | 40 |
| minimum diameter twist drills (inch) | 1/16 |
| minimum diameter twist drills (millimeter) | 1 |
| maximum diameter twist drills (inch) | 9/16 |
| maximum diameter twist drills (millimeter) | 14 |
| connection 1 model | inside |
| connection 1 size (inch) | 3/4 |
| connection 1 size (millimeter) | 19.05 |
| connection 1 type | Weldon |
| Dimensions | |
| stroke (inch) | 1 9/16 |
| stroke (millimeter) | 40 |
| magnet length (inch) | 6 5/16 |
| magnet length (millimeter) | 160 |
| magnet width (inch) | 3 1/8 |
| magnet width (millimeter) | 80 |
| magnet height (inch) | 1 7/16 |
| magnet height (millimeter) | 37 |
| minimum height (inch) | 6 1/2 |
| minimum height (millimeter) | 165 |
| maximum height (inch) | 6 1/2 |
| maximum height (millimeter) | 165 |
| length (inch) | 12 3/16 |
| width (inch) | 5 5/16 |
| length (millimeter) | 310 |
| width (millimeter) | 135 |
| height (inch) | 6 1/2 |
| height (millimeter) | 165 |
| Properties | |
| type of gear box lubrication | Grease |
| magnetic force (kilogram) | 1200 |
| magnetic force (pound) | 2645 |
| electric rotation speed adjustment | yes |
| nett weight (pound) | 22.7 |
| nett weight (kilogram) | 10.3 |
| system of measurement | inch (imperial) |
| application | Drilling, Countersinking, Threading |
| Performance | |
| no-load minimum rotation speed gear 1 (rotations per minute) | 120 |
| no-load maximum rotation speed gear 1 (rotations per minute) | 500 |
| no-load rotation speed gear 1 (rotations per minute) | 500 |
| load minimum rotation speed gear 1 (rotations per minute) | 120 |
| load maximum rotation speed gear 1 (rotations per minute) | 400 |
| corner drilling at 0 degrees, center to edge (inch) | 2 |
| corner drilling at 90 degrees, center to edge (inch) | 2 1/6 |
| corner drilling at 90 degrees, center to edge (millimeter) | 53 |
| corner drilling at 45 degrees, center to edge (inch) | 2 3/8 |
| corner drilling at 45 degrees, center to edge (millimeter) | 60 |
| corner drilling at 0 degrees, center to edge (millimeter) | 50 |
| Supply | |
| motor power (Ampère) | 17.3 |
| total power (Ampère) | 18.6 |
| power supply frequency (Hertz) | 60 |
| power supply current | AC |
| power supply connection | plug according NEMA 5-15 |
| power supply source | mains supply |
| power supply type | electric |
| power supply tension (Volt) | 110 - 120 |
