Product Description

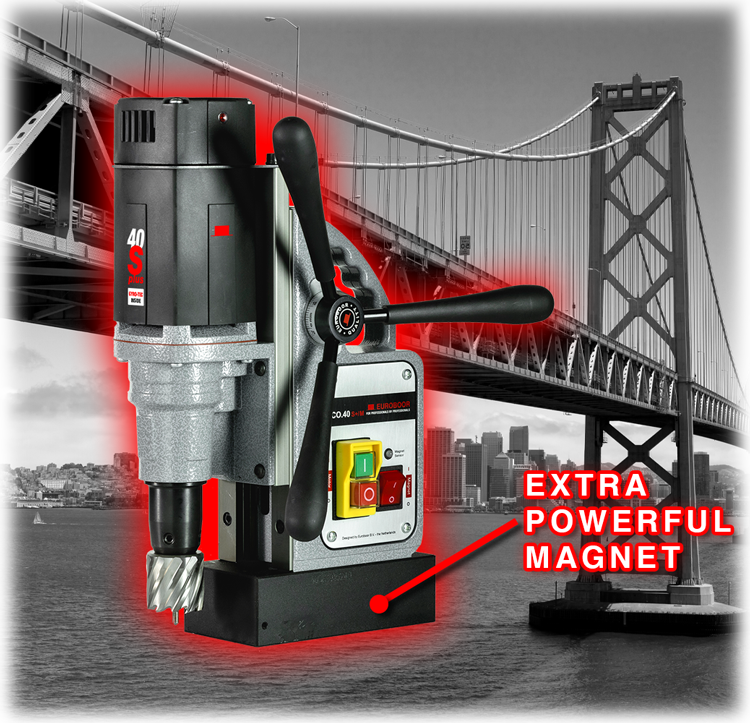

Just when you think you’ve seen it all, the ECO.40S+/M arrives, ready to handle the toughest drilling jobs. Lightweight but built for maximum power, this machine is designed for demanding environments like bridge renovations, where conditions are far from ideal.

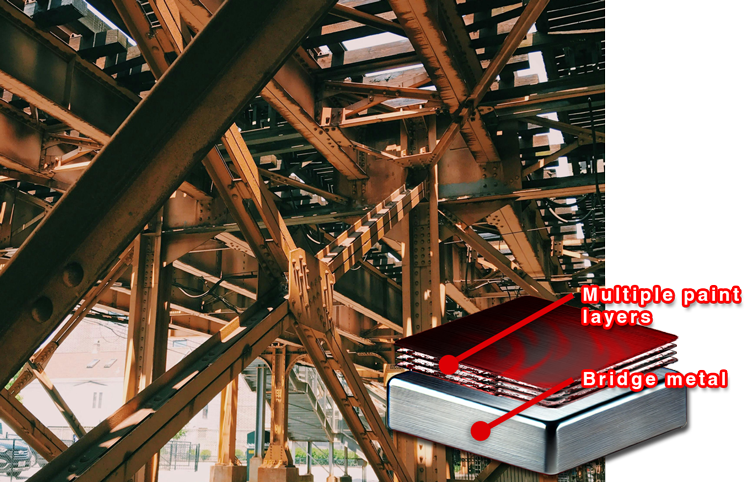

With many older bridges, covered in layers of paint and areas of corrosion, standard mag drills often struggle to grip on securely. The ECO.40S+/M solves this problem with a specially designed, stronger magnet that holds firm, even on heavily painted or corroded metal surfaces. No slipping, no compromise, just reliable performance every time.
But that’s not all. The ECO.40S+/M features an internal motor cable, eliminating the risk of cable damage when moving the machine around. And with Gyro-Tec safety technology built in, the machine automatically shuts down if it detects sudden movement, ensuring a safer work environment without the hassle of jam-prone safety buttons.
Packed with these smart innovations, the ECO.40S+/M makes your choice easy. Work safe, fast, and precise, just the way it should be.
- 1x case

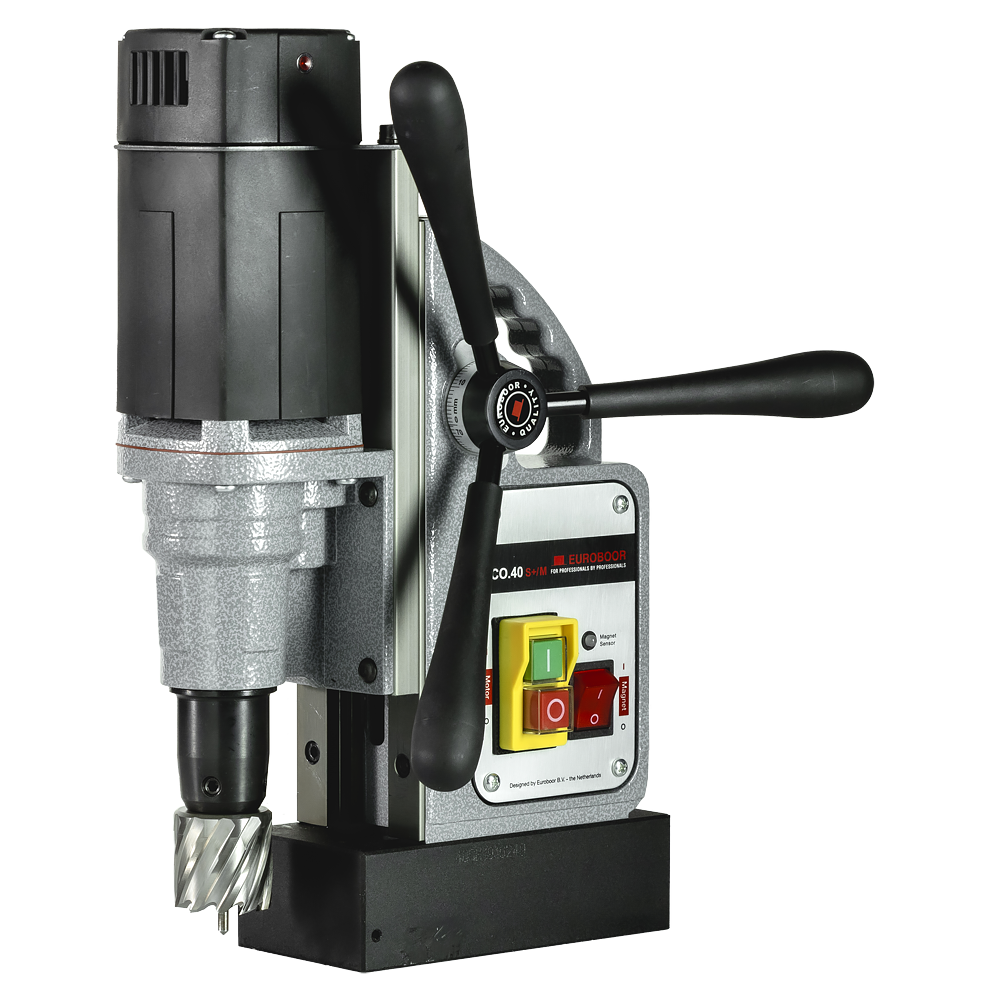

- 1x magnetic drilling machine ECO.40S+/M
- 3x (Capstan Hub) handles
- 1x lubrication/cooling system
- 1x Allen key 2.5 mm (3/32")
- 1x Allen key 3 mm (1/8")
- 1x Allen key 4 mm (5/32")
- 1x Allen key 5 mm (13/64")

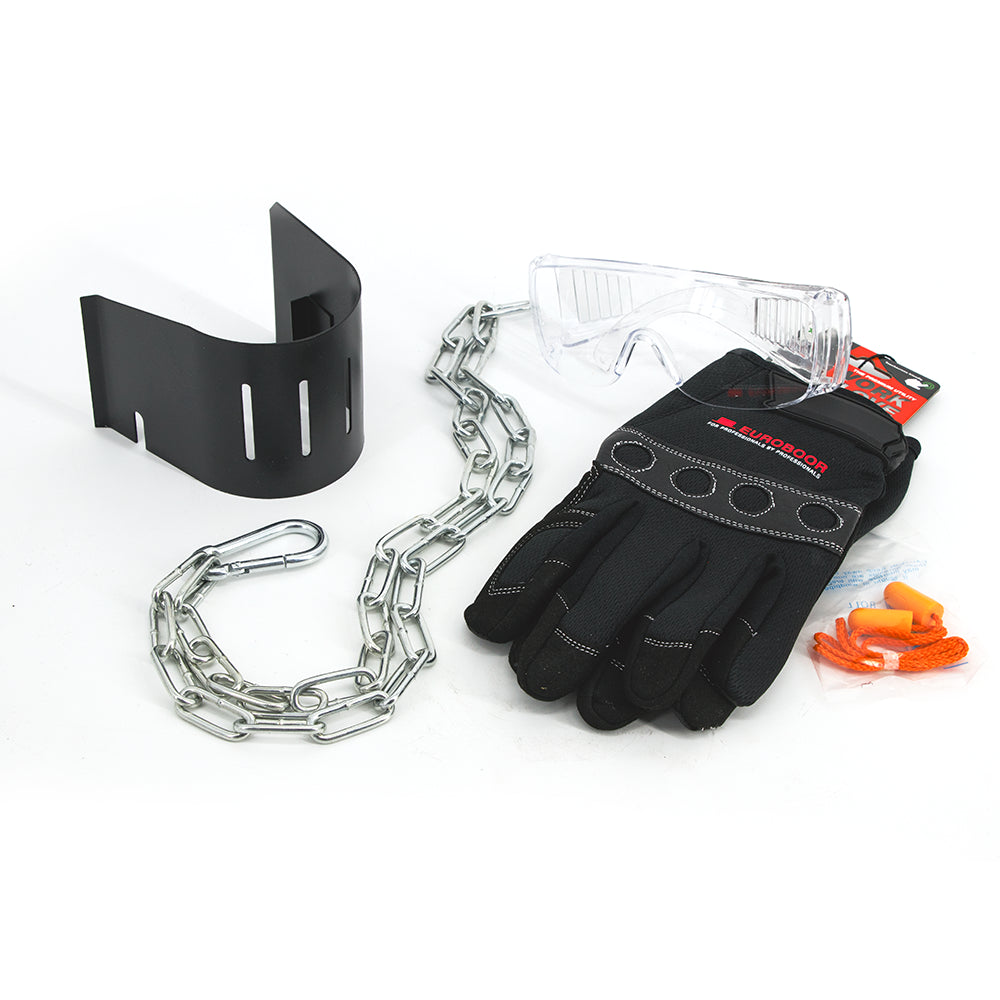

- 1x protection guard
- 1x safety chain
- 1x ear protection
- 1x safety goggles
- 1x safety gloves
- 1x user manual
Properties
| Connection | |
|---|---|
| minimum diameter annular cutters (inch) | 7/16 |
| minimum diameter annular cutters (millimeter) | 12 |
| maximum diameter annular cutters (inch) | 1 9/16 |
| maximum diameter annular cutters (millimeter) | 40 |
| minimum diameter countersinking (inch) | 3/8 |
| minimum diameter countersinking (millimeter) | 10 |
| maximum diameter countersinking (inch) | 1 3/4 |
| maximum diameter countersinking (millimeter) | 45 |
| minimum diameter twist drills (inch) | 1/16 |
| minimum diameter twist drills (millimeter) | 1 |
| maximum diameter twist drills (inch) | 5/8 |
| maximum diameter twist drills (millimeter) | 16 |
| connection 1 model | inside |
| connection 1 size (inch) | 3/4 |
| connection 1 size (millimeter) | 19.05 |
| connection 1 type | Weldon |
| Dimensions | |
| stroke (inch) | 5 11/16 |
| stroke (millimeter) | 145 |
| magnet length (inch) | 6 5/16 |
| magnet length (millimeter) | 160 |
| magnet width (inch) | 3 1/8 |
| magnet width (millimeter) | 80 |
| magnet height (inch) | 1 15/16 |
| magnet height (millimeter) | 49 |
| minimum height (inch) | 14 7/16 |
| minimum height (millimeter) | 367 |
| maximum height (inch) | 17 5/8 |
| maximum height (millimeter) | 447 |
| length (inch) | 10 3/8 |
| width (inch) | 7 1/16 |
| length (millimeter) | 264 |
| width (millimeter) | 180 |
| height (inch) | 17 5/8 |
| height (millimeter) | 447 |
| Properties | |
| rotation direction | clockwise |
| type of gear box lubrication | Oil |
| magnetic force (kilogram) | 1850 |
| magnetic force (pound) | 4079 |
| electric rotation speed adjustment | no |
| nett weight (pound) | 26.9 |
| nett weight (kilogram) | 12.2 |
| system of measurement | inch (imperial) |
| application | Drilling, Countersinking |
| Performance | |
| no-load rotation speed gear 1 (rotations per minute) | 600 |
| load rotation speed gear 1 (rotations per minute) | 380 |
| Supply | |
| motor power (Ampère) | 10.5 |
| motor power (Watt) | 1150 |
| total power (Ampère) | 10.9 |
| total power (Watt) | 1200 |
| power supply frequency (Hertz) | 60 |
| power supply current | AC |
| power supply connection | plug according NEMA 5-15 |
| power supply source | mains supply |
| power supply type | electric |
| power supply tension (Volt) | 110 - 120 |
