Product Description

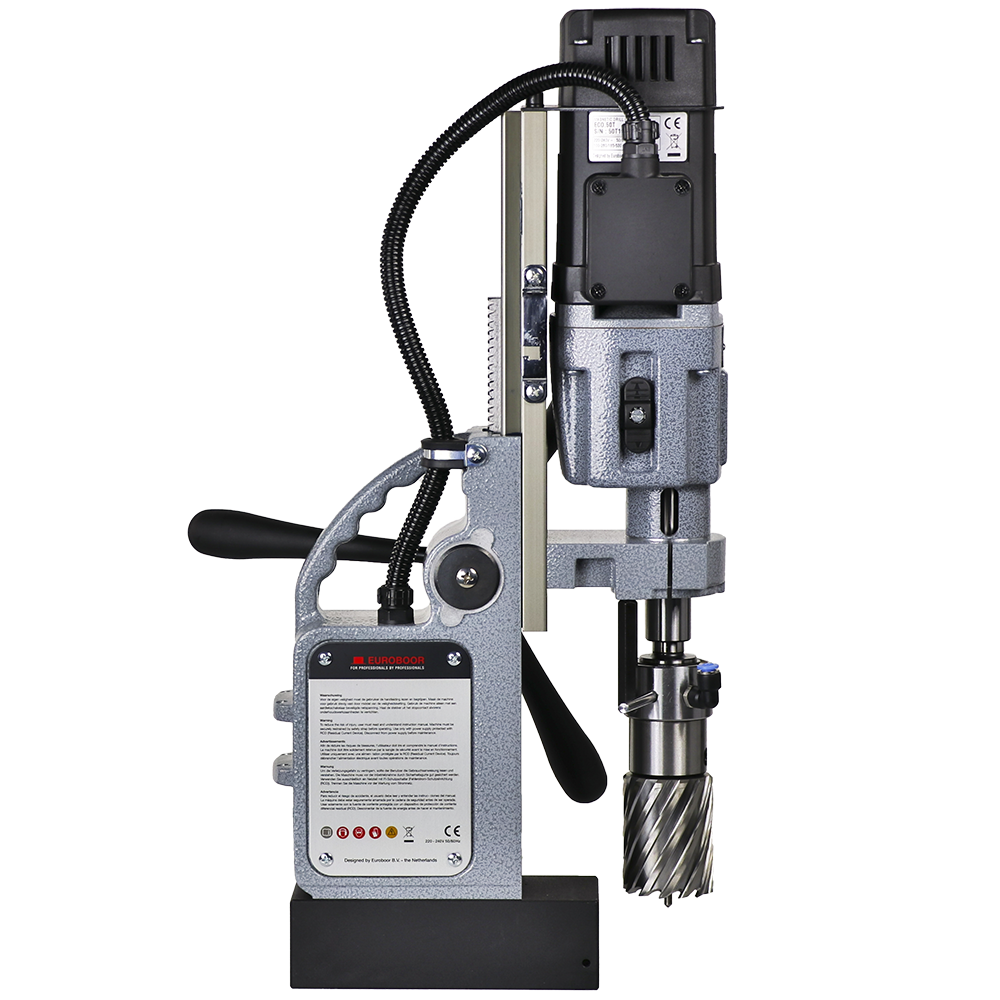

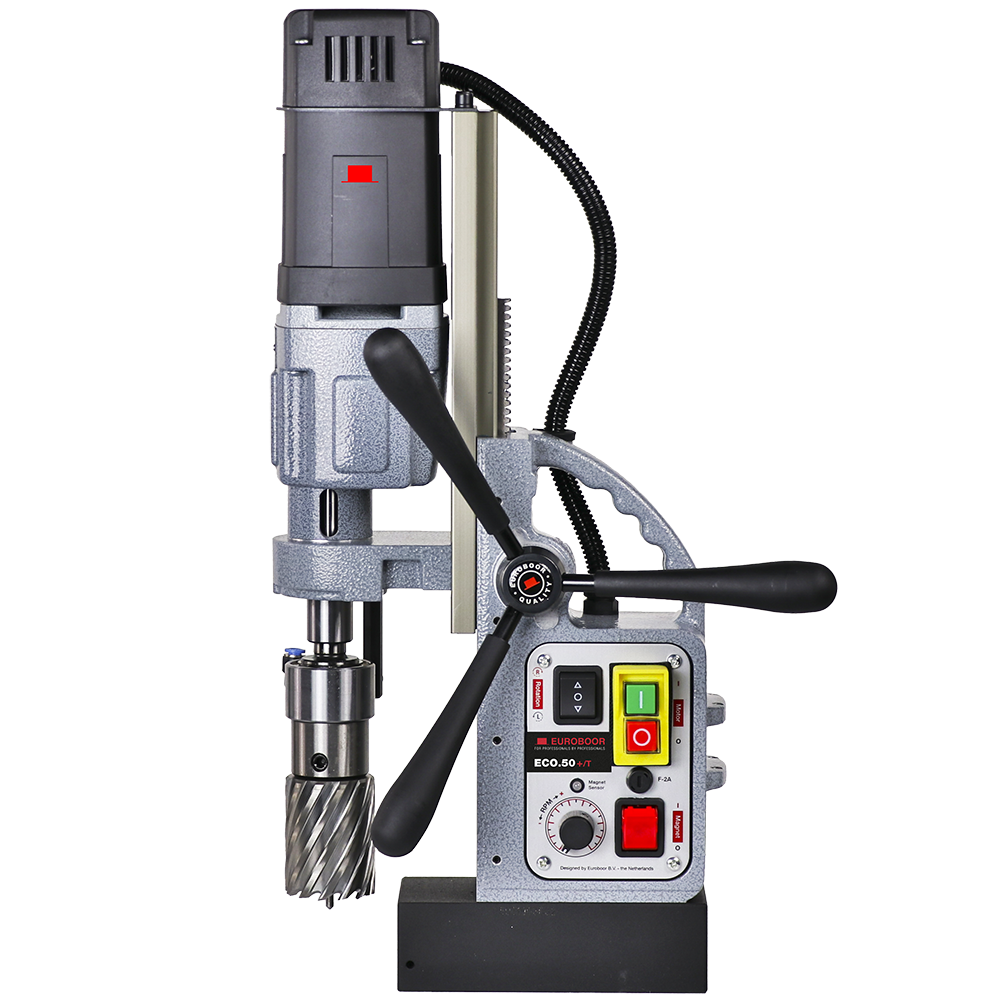

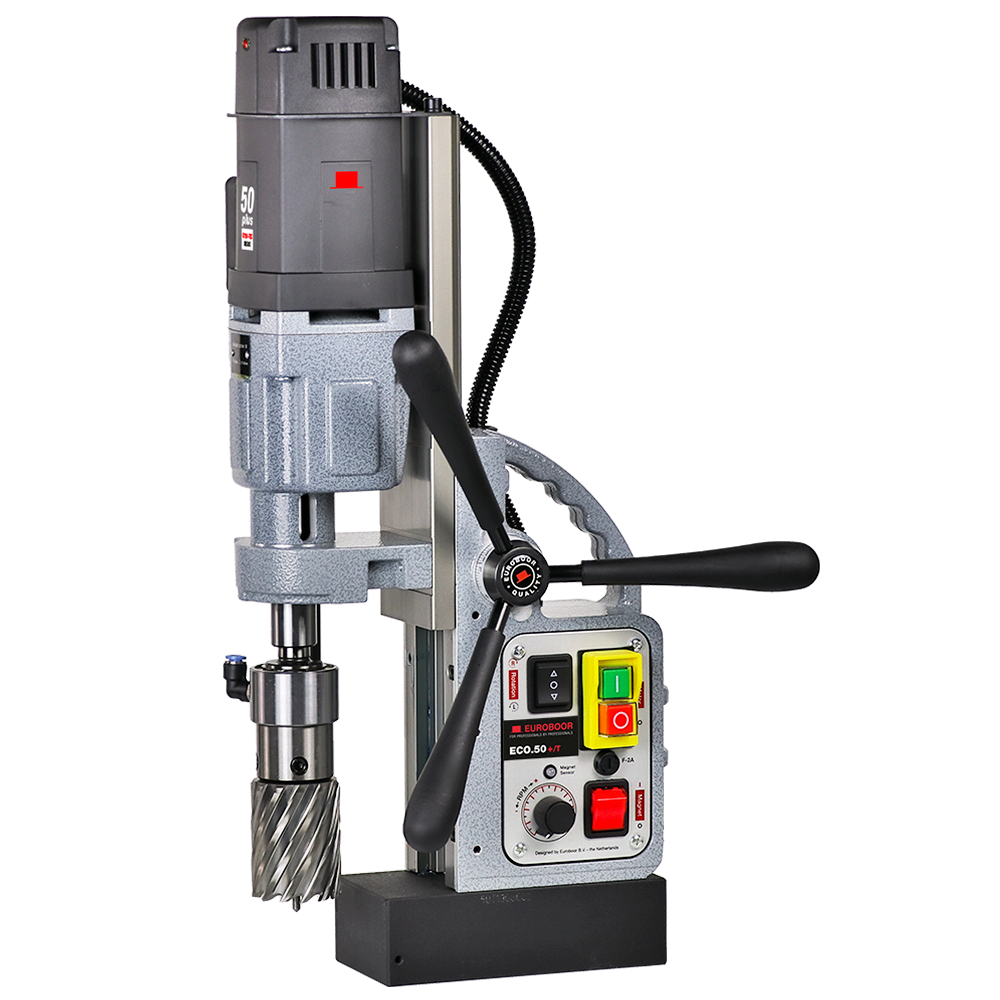

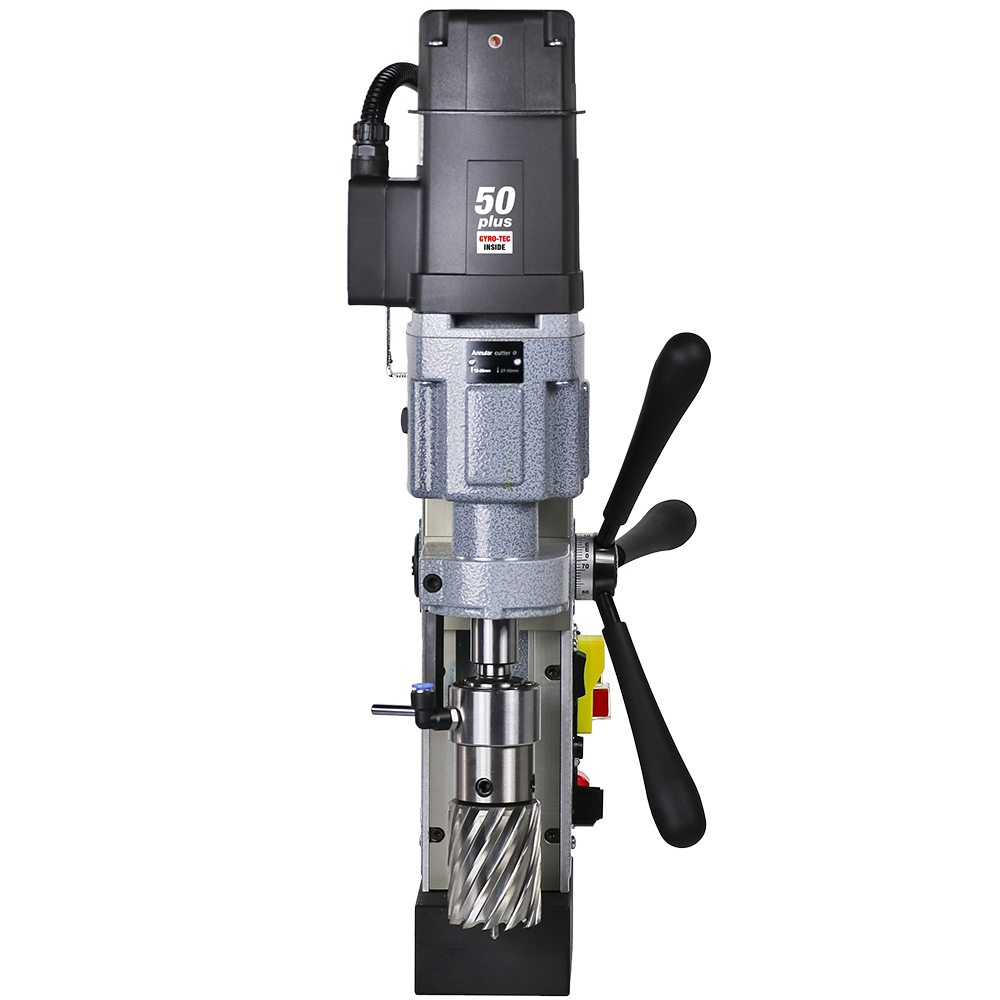

Our ECO.50+/T magnetic core drilling machine is suitable for both drilling and tapping. The Euroboor ECO.50+/T with Morse Taper 2 spindle is equipped with innovative electronics which offer more safety, significantly reduce the risk of damage to the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs.

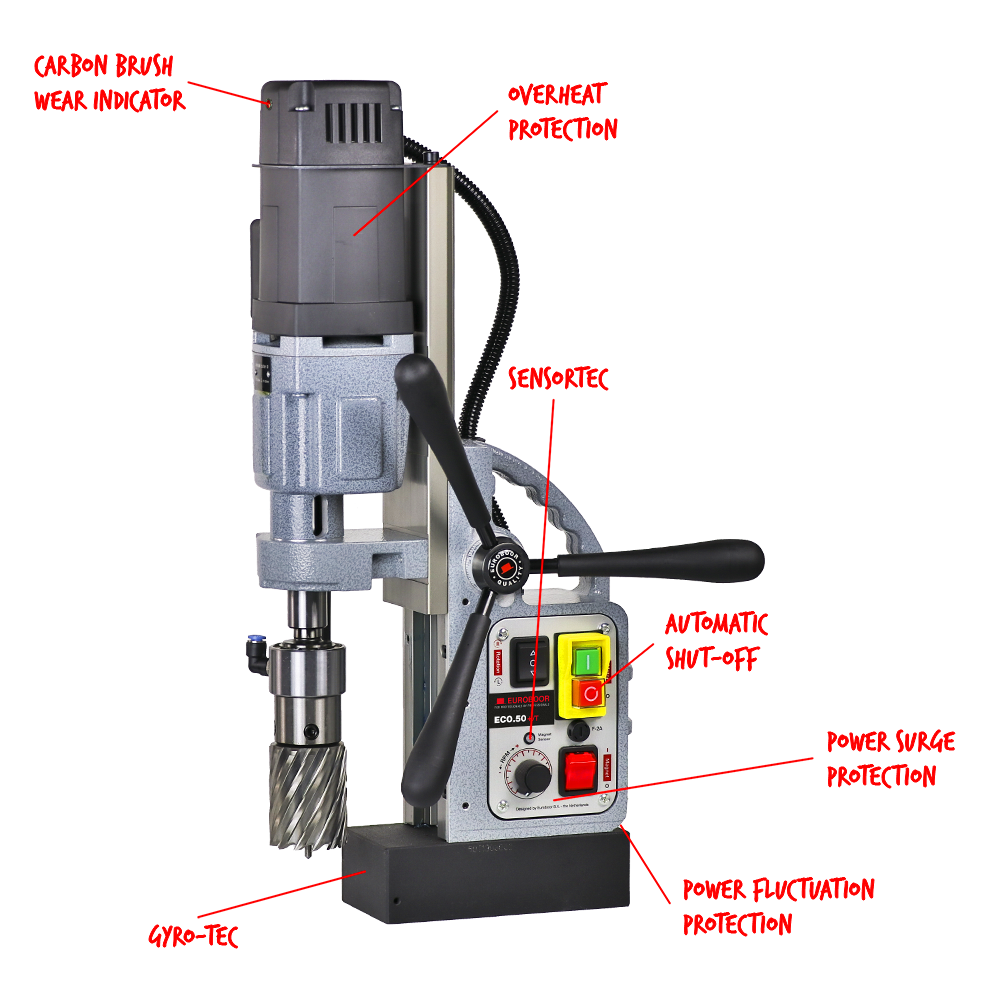

Key Characteristics- One-speed oil lubricated gearbox
- Gyro-Tec
- Power surge protection
- Power fluctuation protection
- Carbon brush wear indicator
- Automatic shut-off
- Direct spindle drive and integrated tool cooling and lubrication
- Low maintenance
- Minimal wear correction
- Lightest 1 3/16" magnetic drilling machine
- Most compact in class
- Incredibly easy to handle
- High accuracy
- Enlarged lifecycle
- Minimal vibration
- Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore last longer
- Reversible handles which enable you to change the operation side of the feed handles in confined spaces
- Reduced risk of damaging machine, tools and workpiece and hurting operator
- Suitable for use in areas and workplaces where power supply is of less quality
- Reduced risk of armature damage
- Reduced risk of control unit(s) damage
- Timely service notification to avoid additional costs by unexpected downtime or unnecessary part replacement
- 1x case
- 1x magnetic drilling machine ECO.50+/T
- 3x (Capstan Hub) handles
- 1x lubrication/cooling system
- 1x spindle holder MT 2 - 19,05 (3/4"), including cooling/lubrication ring (IMC.20)
- 1x drift key
- 1x tap holder (Weldon, DIN 376) M10
- 1x tap holder (Weldon, DIN 376) M12
- 1x tap holder (Weldon, DIN 376) M14
- 1x tap holder (Weldon, DIN 376) M16
- 1x Allen key 2.5 mm (3/32")
- 1x Allen key 3 mm (1/8")
- 1x Allen key 4 mm (5/32")
- 1x Allen key 5 mm (13/64")

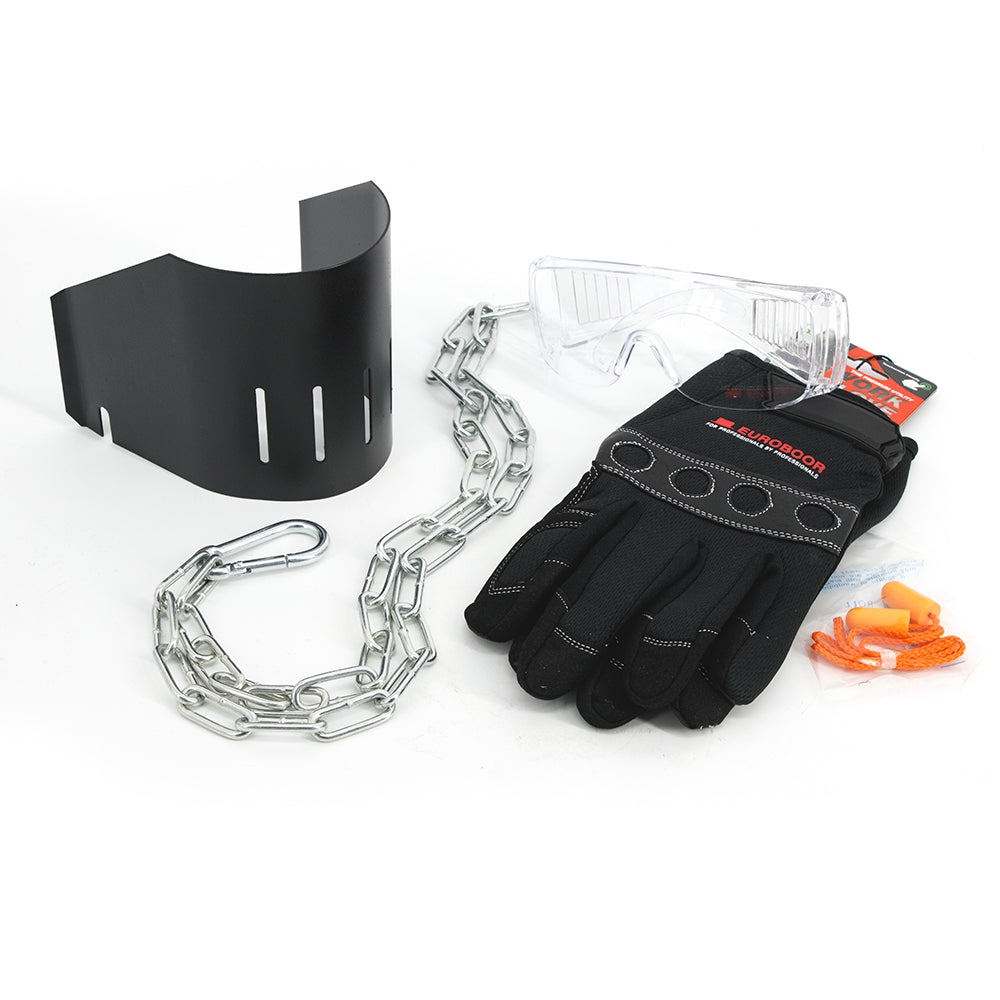

- 1x protection guard
- 1x safety chain
- 1x ear protection
- 1x safety goggles
- 1x safety gloves
- 1x user manual
Properties
Automatic shut off
Carbon brush wear indicator
Gyro-Tec
Overload protection
Power fluctuation protection
2 way magnet (TempTec)
Overheat protection
Magnet LED indicator
Power surge protection
Tapping
Adjustable speed
R/L rotation
Smart Restart
| Connection | |
|---|---|
| minimum diameter threading (inch) | 1/8 |
| minimum diameter threading (millimeter) | M3 |
| maximum diameter threading (inch) | 13/16 |
| maximum diameter threading (millimeter) | M20 |
| minimum diameter annular cutters (inch) | 1/2 |
| minimum diameter annular cutters (millimeter) | 12 |
| maximum diameter annular cutters (inch) | 2 |
| maximum diameter annular cutters (millimeter) | 50 |
| minimum diameter countersinking (inch) | 3/8 |
| minimum diameter countersinking (millimeter) | 10 |
| maximum diameter countersinking (inch) | 2 3/16 |
| maximum diameter countersinking (millimeter) | 55 |
| minimum diameter twist drills (inch) | 1/16 |
| minimum diameter twist drills (millimeter) | 1 |
| maximum diameter twist drills (inch) | 15/16 |
| maximum diameter twist drills (millimeter) | 23 |
| connection 1 model | inside |
| connection 1 size (inch) | 3/4 |
| connection 1 size (millimeter) | 19.05 |
| connection 2 morse taper / drill chuck class | MT2 |
| connection 1 type | Weldon |
| connection 2 model | outside |
| connection 2 type | morse taper |
| Dimensions | |
| stroke (inch) | 6 11/16 |
| stroke (millimeter) | 170 |
| magnet length (inch) | 6 11/16 |
| magnet length (millimeter) | 170 |
| magnet width (inch) | 3 3/8 |
| magnet width (millimeter) | 85 |
| magnet height (inch) | 1 7/8 |
| magnet height (millimeter) | 48 |
| minimum height (inch) | 15 3/16 |
| minimum height (millimeter) | 385 |
| maximum height (inch) | 21 1/4 |
| maximum height (millimeter) | 540 |
| length (inch) | 12 5/8 |
| width (inch) | 8 1/4 |
| length (millimeter) | 320 |
| width (millimeter) | 210 |
| height (inch) | 21 1/4 |
| height (millimeter) | 540 |
| Properties | |
| rotation direction | bidirectional |
| type of gear box lubrication | Grease |
| magnetic force (kilogram) | 1850 |
| magnetic force (pound) | 4080 |
| electric rotation speed adjustment | yes |
| nett weight (pound) | 29.8 |
| nett weight (kilogram) | 13.5 |
| system of measurement | inch (imperial) |
| application | Drilling, Countersinking, Threading |
| Performance | |
| no-load minimum rotation speed gear 1 (rotations per minute) | 100 |
| no-load maximum rotation speed gear 1 (rotations per minute) | 280 |
| load rotation speed gear 1 (rotations per minute) | 250 |
| no-load minimum rotation speed gear 2 (rotations per minute) | 185 |
| no-load maximum rotation speed gear 2 (rotations per minute) | 530 |
| load rotation speed gear 2 (rotations per minute) | 460 |
| Supply | |
| motor power (Ampère) | 11.4 |
| motor power (Watt) | 1250 |
| total power (Ampère) | 12.5 |
| total power (Watt) | 1375 |
| power supply frequency (Hertz) | 60 |
| power supply current | AC |
| power supply connection | plug according NEMA 5-15 |
| power supply source | mains supply |
| power supply type | electric |
| power supply tension (Volt) | 110 - 120 |
