Product Description

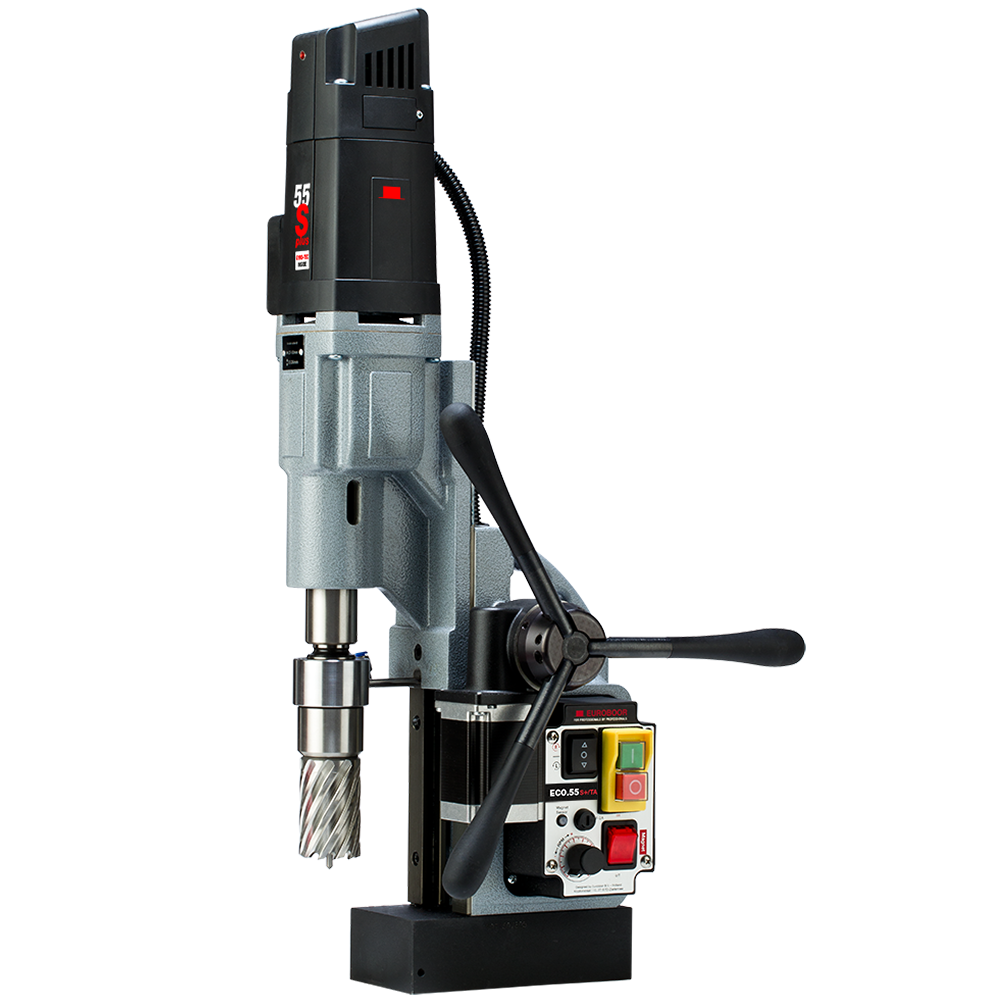

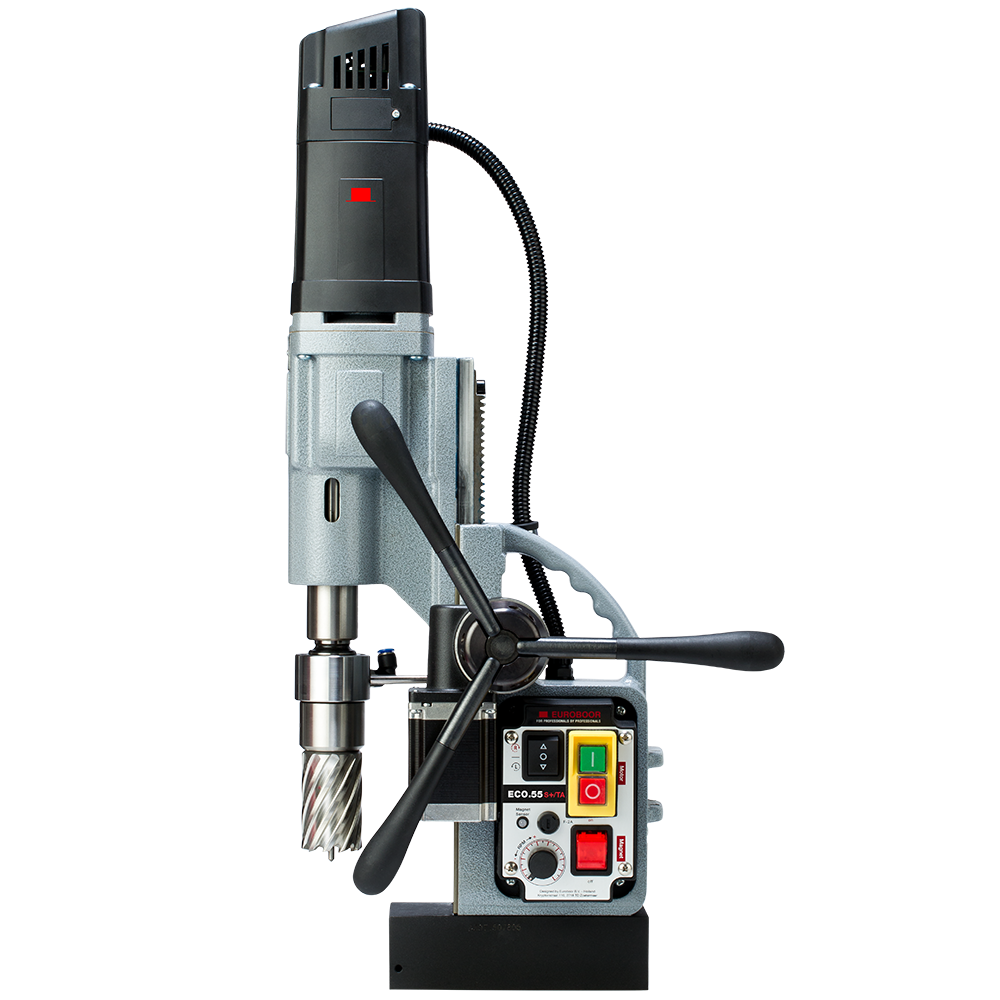

The portable Euroboor ECO.55S+/TA is our magnetic core drilling machine which will actually drill holes in metal with the highest efficiency for you. This magnetic core drilling machine benefits from an automatic drilling functionality with automatic return for annular cutters. Furthermore, the ECO.55S+/TA has a digital display which shows the ideal working load and the Smart Restart Technology prevents excessive tool wear and failure. The machine profits also from innovative electronics which offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs.
Key Characteristics- Automatic drill functionality with automatic return for annular cutters
- Two-speed oil lubricated gearbox

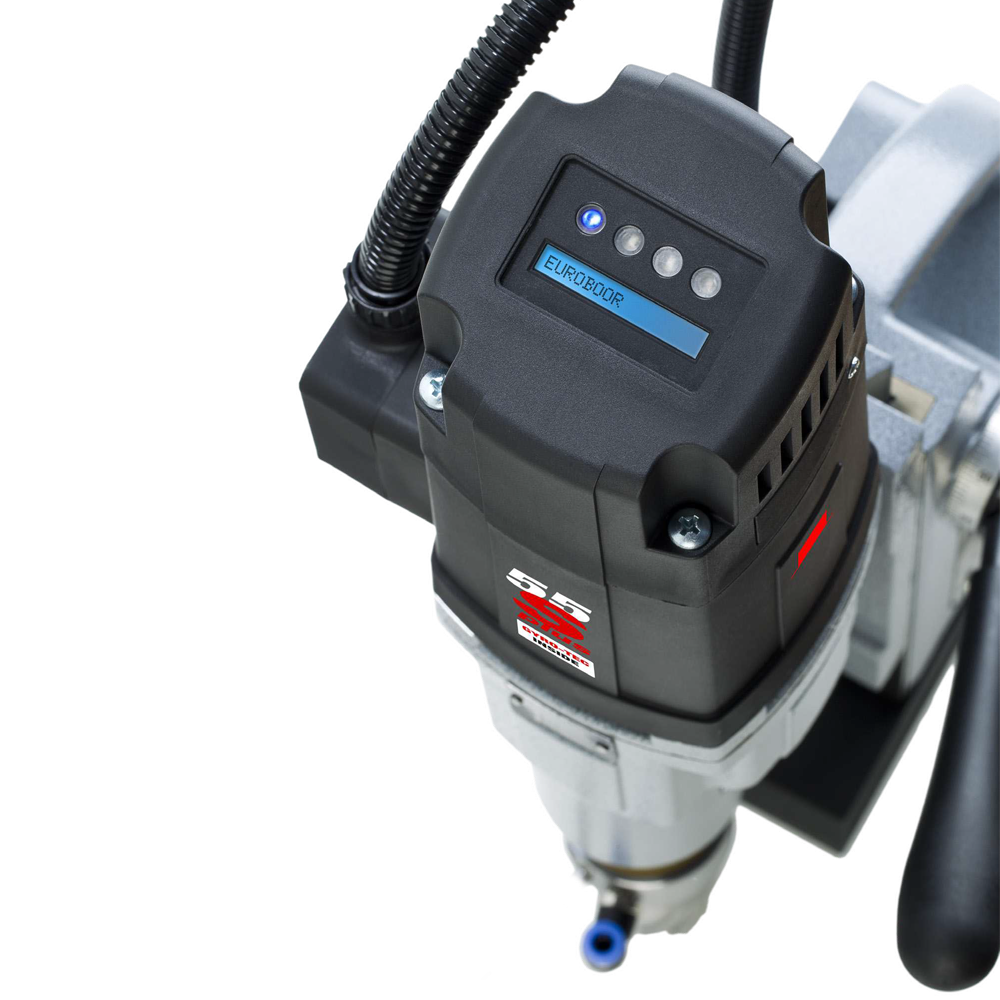

- Digital display showing ideal power usage
- Smart Restart technology
- Right/left rotating functionality
- Electronic speed adjustment
- Easily accessible carbon brushes. Motor will automatically shut-off in case of replacement
- High-accuracy capstan hub
- Morse Taper 3 spindle with integrated tool cooling and lubrication
- LED load indicators
- High accuracy
- Extended lifecycle
- Minimal vibration
- High-precision height adjustment
- Low maintenance
- Minimal wear correction
- Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore last longer
- Reduced risk of damaging machine, tools and workpiece and hurting operator
- Suitable for use in areas and workplaces where power supply is of less quality
- Reduced risk of armature damage
- Reduced risk of control unit(s) damage
- Timely service notification to avoid additional cost by unexpected downtime or unnecessary part replacement
- 1x case
- 1x magnetic drilling machine ECO.55S+/TA
- 3x (Capstan Hub) handles
- 1x tap holder (Weldon, DIN 376) M10
- 1x tap holder (Weldon, DIN 376) M12
- 1x tap holder (Weldon, DIN 376) M14
- 1x tap holder (Weldon, DIN 376) M16
- 1x spindle holder MT 3 - 19.05 (3/4"), including cooling/lubrication ring (IMC.30/19-N)
- 1x drift key
- 1x lubrication/cooling system
- 1x Allen key 2.5 mm (3/32")
- 1x Allen key 3 mm (1/8")
- 1x Allen key 4 mm (5/32")
- 1x Allen key 5 mm (13/64")

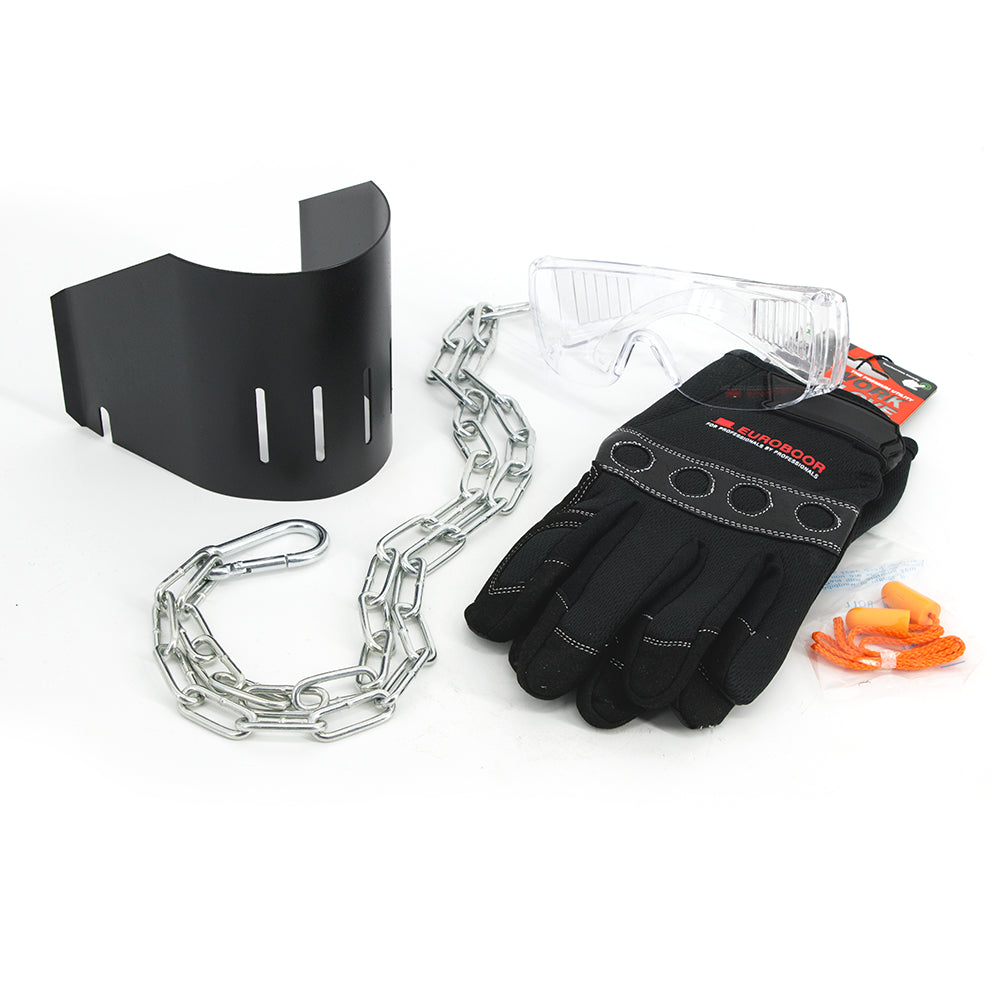

- 1x protection guard
- 1x safety chain
- 1x ear protection
- 1x safety goggles
- 1x safety gloves
- 1x user manual

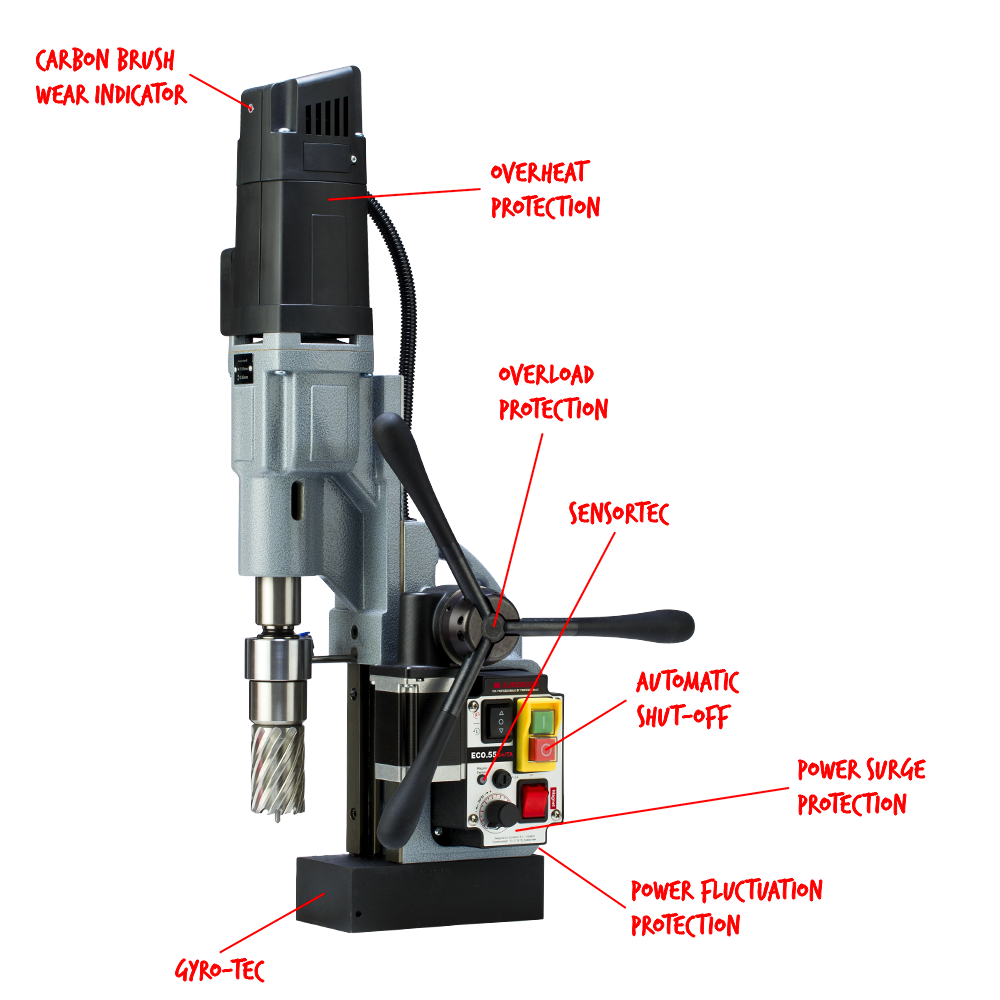

Properties
Automatic shut off
Carbon brush wear indicator
Gyro-Tec
Overload protection
Power fluctuation protection
2 way magnet (TempTec)
Overheat protection
Magnet LED indicator
Power surge protection
Tapping
Adjustable speed
Digital display
Oil lubricated gearbox
R/L rotation
Auto feed and return for cutters
Smart Restart
LED load indicators
| Connection | |
|---|---|
| auto feed | yes |
| minimum diameter threading (inch) | 1/8 |
| minimum diameter threading (millimeter) | M3 |
| maximum diameter threading (inch) | 13/16 |
| maximum diameter threading (millimeter) | M20 |
| minimum diameter annular cutters (inch) | 1/2 |
| minimum diameter annular cutters (millimeter) | 12 |
| maximum diameter annular cutters (inch) | 2 3/16 |
| maximum diameter annular cutters (millimeter) | 55 |
| minimum diameter countersinking (inch) | 3/8 |
| minimum diameter countersinking (millimeter) | 10 |
| maximum diameter countersinking (inch) | 2 3/8 |
| maximum diameter countersinking (millimeter) | 60 |
| minimum diameter twist drills (inch) | 1/16 |
| minimum diameter twist drills (millimeter) | 1 |
| maximum diameter twist drills (inch) | 15/16 |
| maximum diameter twist drills (millimeter) | 23 |
| connection 1 model | inside |
| connection 1 size (inch) | 3/4 |
| connection 1 size (millimeter) | 19.05 |
| connection 2 morse taper / drill chuck class | MT3 |
| connection 1 type | Weldon |
| connection 2 model | outside |
| connection 2 type | morse taper |
| Dimensions | |
| stroke (inch) | 6 11/16 |
| stroke (millimeter) | 170 |
| magnet length (inch) | 6 5/8 |
| magnet length (millimeter) | 168 |
| magnet width (inch) | 3 5/16 |
| magnet width (millimeter) | 84 |
| magnet height (inch) | 1 15/16 |
| magnet height (millimeter) | 49 |
| minimum height (inch) | 13 9/16 |
| minimum height (millimeter) | 490 |
| maximum height (inch) | 26 |
| maximum height (millimeter) | 660 |
| length (inch) | 13 9/16 |
| width (inch) | 12 |
| length (millimeter) | 345 |
| width (millimeter) | 305 |
| height (inch) | 26 |
| height (millimeter) | 660 |
| Properties | |
| rotation direction | bidirectional |
| type of gear box lubrication | Oil |
| magnetic force (kilogram) | 1850 |
| magnetic force (pound) | 4080 |
| electric rotation speed adjustment | yes |
| nett weight (pound) | 34.8 |
| nett weight (kilogram) | 15.8 |
| system of measurement | inch (imperial) |
| application | Drilling, Countersinking, Threading |
| Performance | |
| no-load minimum rotation speed gear 1 (rotations per minute) | 60 |
| no-load maximum rotation speed gear 1 (rotations per minute) | 275 |
| load minimum rotation speed gear 1 (rotations per minute) | 60 |
| load maximum rotation speed gear 1 (rotations per minute) | 275 |
| no-load minimum rotation speed gear 2 (rotations per minute) | 100 |
| no-load maximum rotation speed gear 2 (rotations per minute) | 500 |
| load minimum rotation speed gear 2 (rotations per minute) | 100 |
| load maximum rotation speed gear 2 (rotations per minute) | 500 |
| Supply | |
| motor power (Ampère) | 14.5 |
| total power (Ampère) | 15.4 |
| power supply frequency (Hertz) | 60 |
| power supply current | AC |
| power supply connection | plug according NEMA 5-15 |
| power supply source | mains supply |
| power supply type | electric |
| power supply tension (Volt) | 110 - 120 |
