Product Description

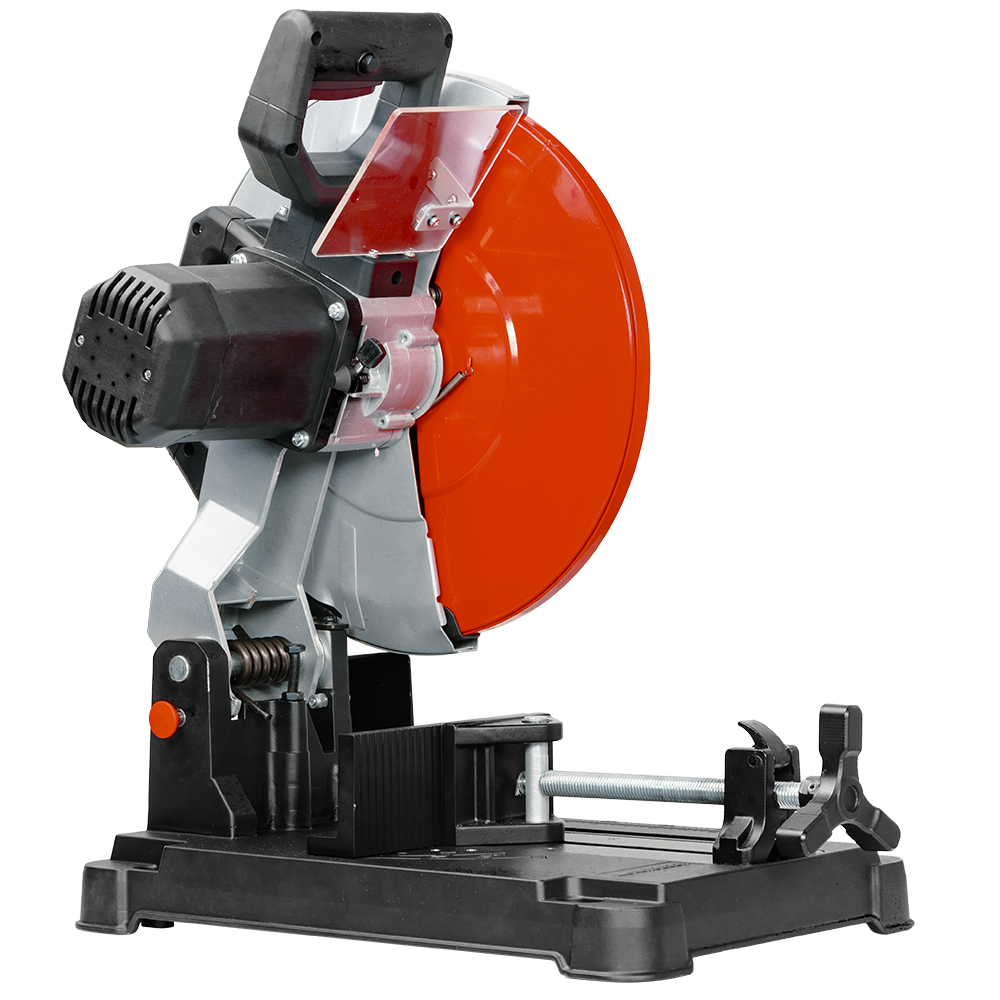

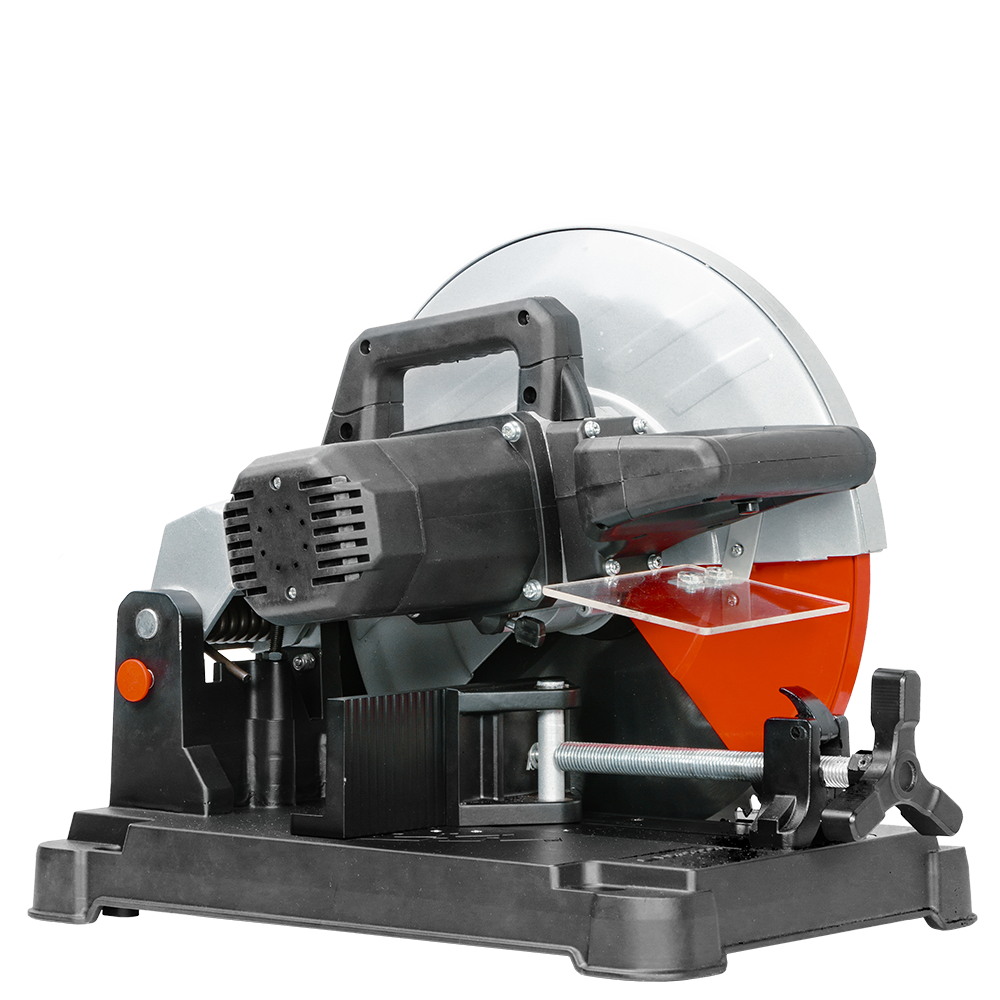

EDC.355 metal Dry cut metal saw
The Euroboor EDC.355 “Bladerunner” metal dry cut metal saw is ideal for cutting metal profiles, pipes and sheet material. This robust machine has an adjustable cutting angle from 0° to 45° and a molded aluminum base with adjustable angle indication. In addition, the base has 3 attachment points to fix the machine to your workbench. The EDC.355 is powered by an extremely powerful 2480 W motor with built-in soft start functionality. With 1450 rpm, this machine is suitable for sawing all types of metals.

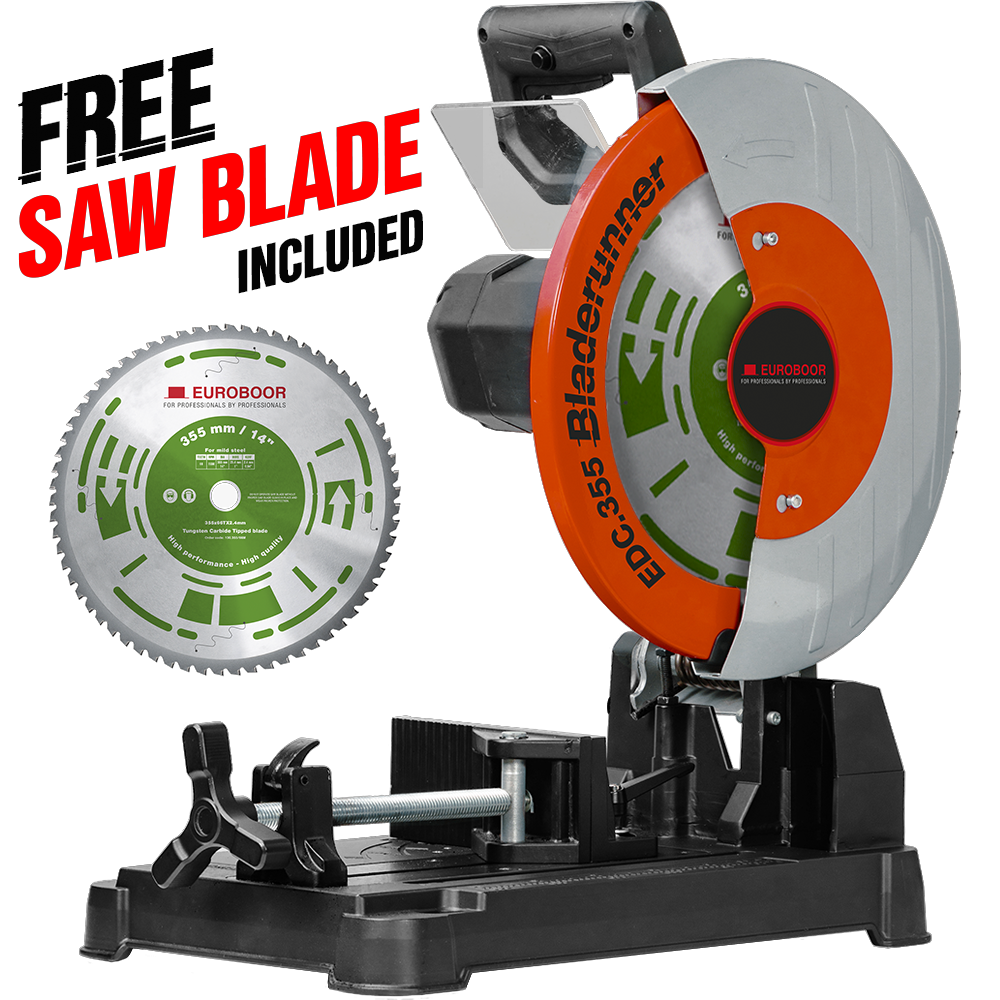

The supplied 66-teeth saw blade is suited for sawing mild steel. It provides an accurate and smooth finish so that the sawn material is ready for welding. The big advantage of our saw blade is that it produces virtually no sparks and the cuts stay cool, making it faster, easier and safer to use than abrasive wheel cutters. A 66-teeth TCT Japanese saw blade is also available for hard steel and cast iron.

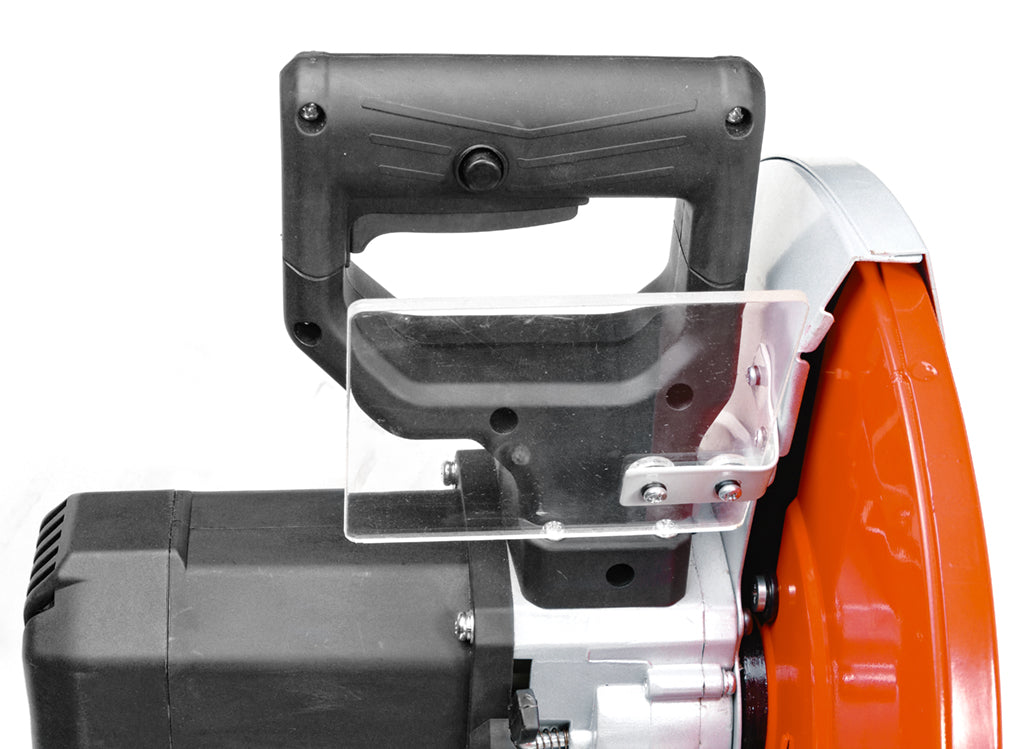

The transparent protective shield ensures that the chips are safely discharged while you keep a good view of your work. The deadman switch stops the blade completely within seconds, adding an extra layer of safety. The machine has a locking pin and an ergonomic handle, so you can easily carry the machine. The safety button also ensures that you are protected against accidental start-up.

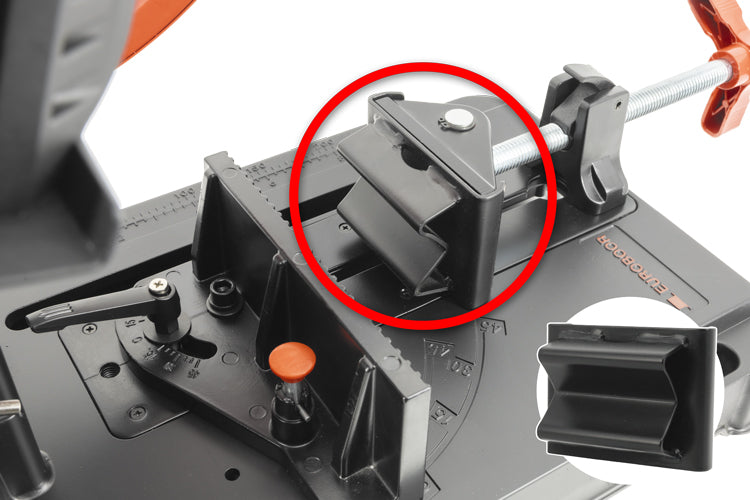

Free V-clamp included.
- Adjustable sawing angle from 0° to 45°

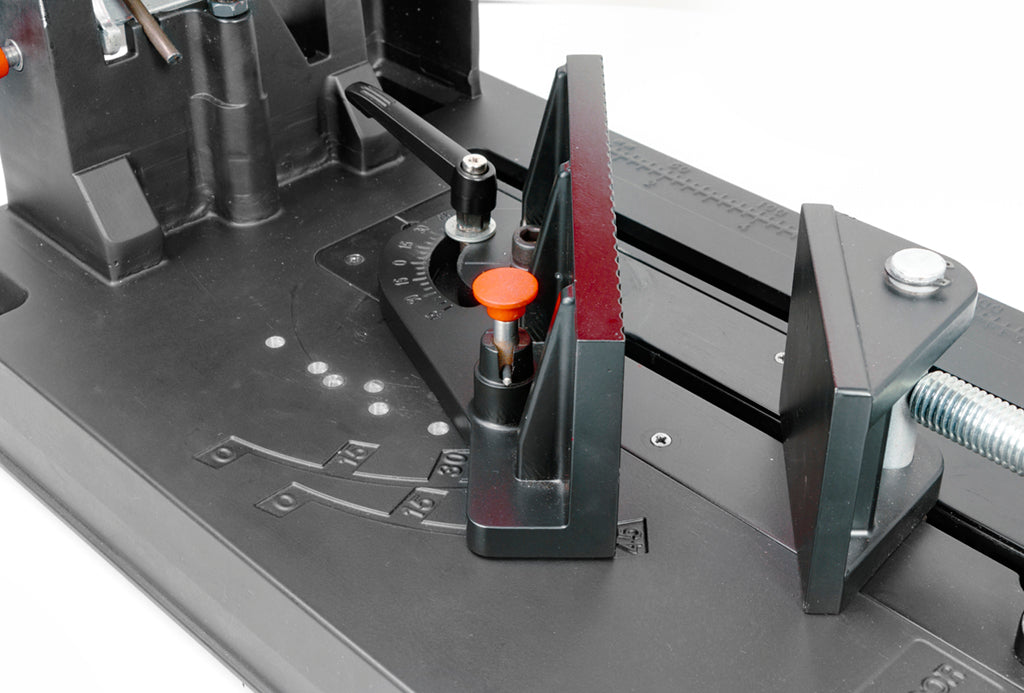

- Molded aluminum base with adjustable angle indication.

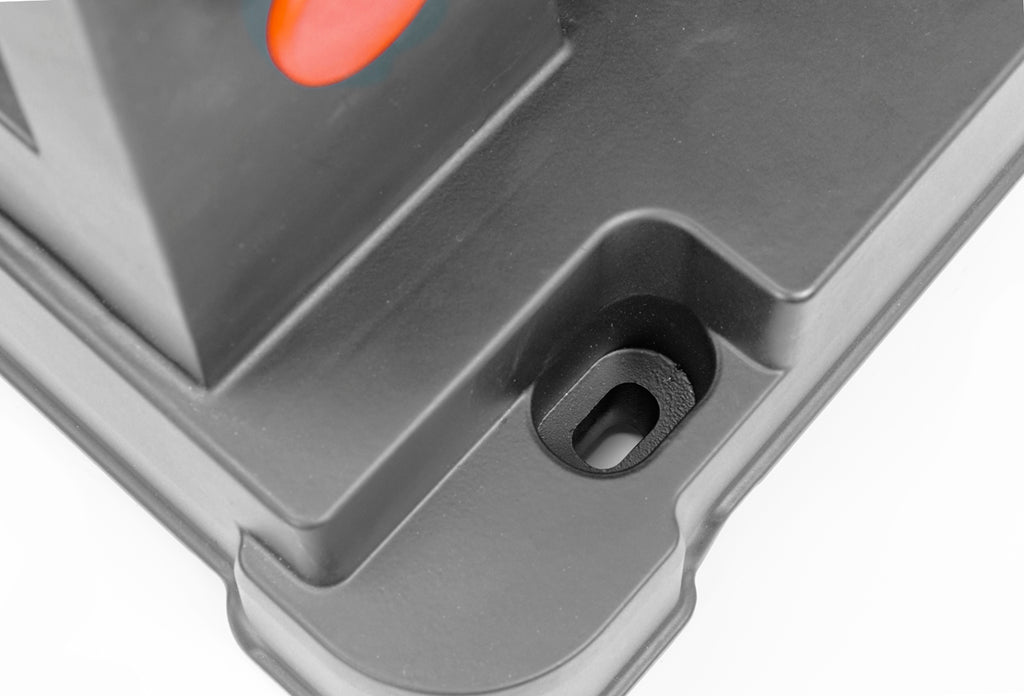

- 3 attachment points to fix the machine to your workbench.
- Ergonomic handle and locking pin to easily carry the machine
- Safety button for protection against accidental start-up.
- Transparent protective shield for safe discharging of the chips

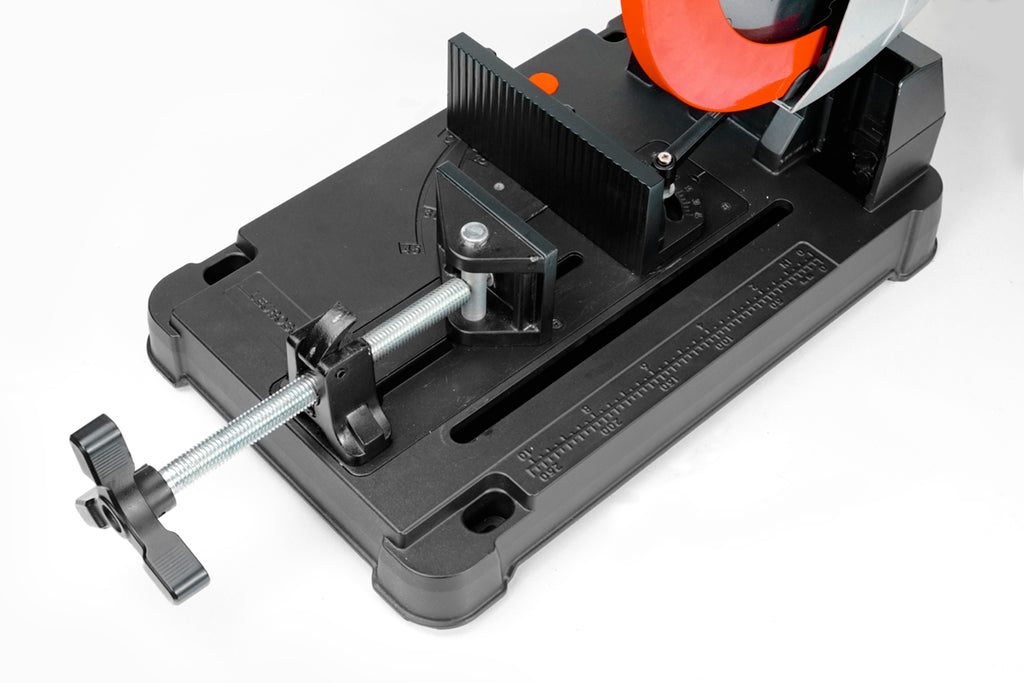

- Robust clamp for very precise clamping of materials

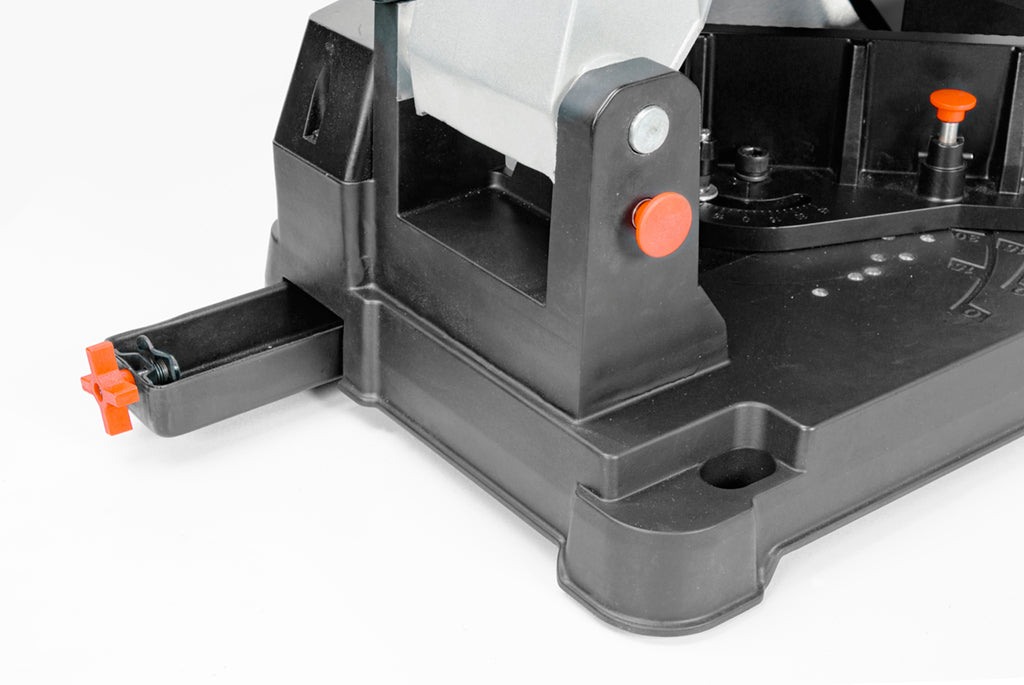

- Dust collection tray for a cleaner workspace
- Built-in soft-start functionality
- Deadman switch stops the blade completely within seconds
- 1x cardboard box
- 1x dry cut metal saw machine EDC.355
- 1x saw blade (130.355/66M)
- 1x angle adapter (V-clamp)
- 1x Allen key 5 mm (13/64")
- 1x Allen key 8 mm (5/16")
- 1x spare carbon brush set
- 1x user manual
Properties
| Connection | |
|---|---|
| connection 1 model | inside |
| connection 1 size (inch) | 1 |
| connection 1 size (millimeter) | 25.4 |
| Dimensions | |
| length (inch) | 24 7/16 |
| width (inch) | 13 3/4 |
| length (millimeter) | 620 |
| width (millimeter) | 350 |
| height (inch) | 24 13/16 |
| height (millimeter) | 630 |
| outside / maximum diameter (inch) | 14 |
| outside / maximum diameter (millimeter) | 355 |
| Properties | |
| nett weight (pound) | 41 |
| nett weight (kilogram) | 18.6 |
| system of measurement | inch (imperial) |
| application | Sawing |
| Performance | |
| rotation speed gear 1 (rotations per minute) | 1450 |
| Supply | |
| motor power (Ampère) | 11 |
| motor power (Watt) | 2480 |
| power supply frequency (Hertz) | 60 |
| power supply current | AC |
| power supply connection | plug according NEMA 5-15 |
| power supply source | mains supply |
| power supply type | electric |
| power supply tension (Volt) | 110 - 120 |
| Usage | |
| maximum diameter round material at 0 degrees (millimeter) | 120 |
| maximum diameter round material at 0 degrees (inch) | 4 3/4 |
| maximum diameter round material at 45 degrees (millimeter) | 90 |
| maximum diameter round material at 45 degrees (inch) | 3 9/16 |
| maximum size square material at 0 degrees (millimeter) | 105 |
| maximum size square material at 0 degrees (inch) | 4 1/8 |
| maximum size square material at 45 degrees (millimeter) | 80 |
| maximum size square material at 45 degrees (inch) | 3 1/8 |
| maximum size rectangular material at 0 degrees (millimeter) | 90 x 145 |
| maximum size rectangular material at 0 degrees (inch) | 3 9/16 x 5 11/16 |
| maximum size rectangular material at 45 degrees (millimeter) | 90 x 80 |
| maximum size rectangular material at 45 degrees (inch) | 3 9/16 x 5 11/16 |
| machining medium | grinding disk |
| machining medium specifications | max diam 13 31/32" |
| minimum machining angle (degrees) | 0 |
| maximum machining angle (degrees) | 45 |
