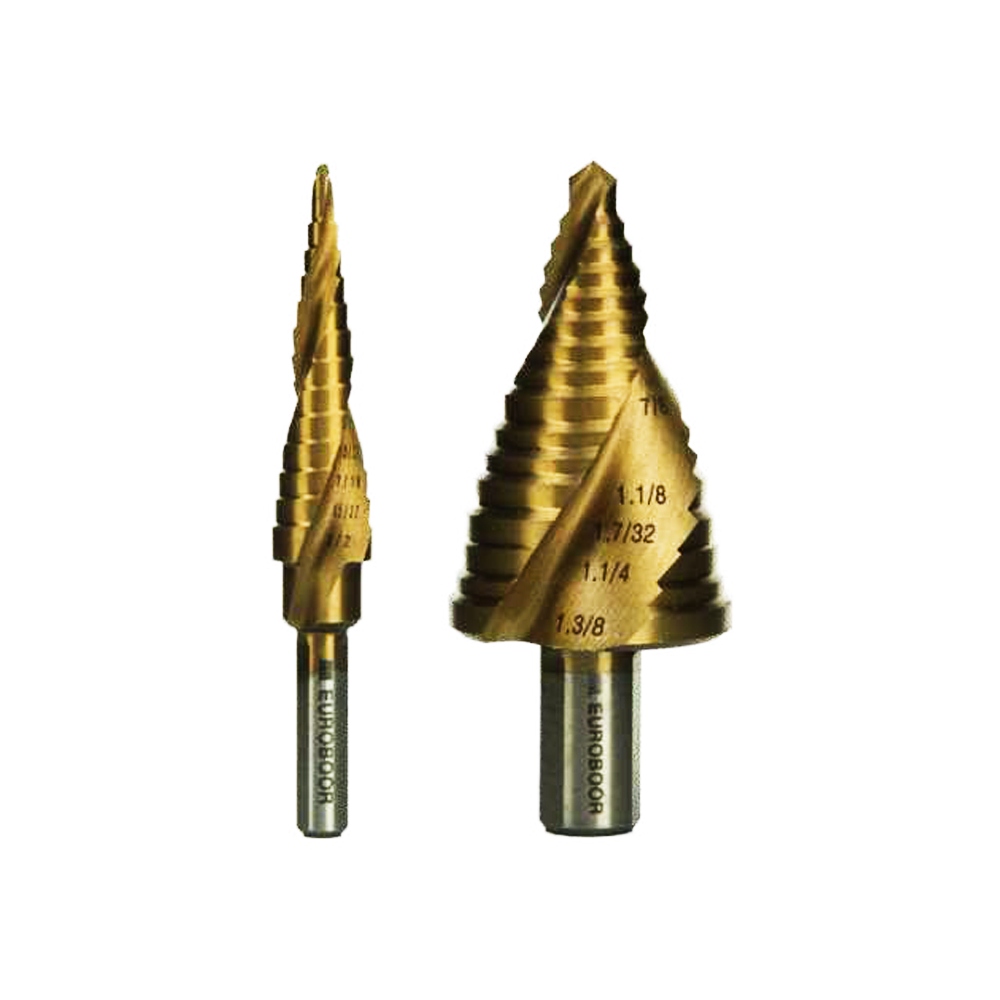

Euroboor ESD.INCH-E Step Drill, Inch.

Product Description

The Euroboor ESD Step Drill is engineered for smooth, precise drilling across a wide range of materials. Built from high-speed steel and TiN-coated for extra durability, this step drill delivers extended tool life and clean, accurate results—ideal for stainless steel, aluminium/aluminum, brass, copper, plastics, and more. With laser-etched size markings and a 3-flat shank for extra grip, the ESD is a reliable addition to any metalworker’s toolbox.

Sizes:
1/8" - 1/2"
1/4" - 3/4"
3/16" - 7/8"
3/16" - 1/2"
7/8" - 1 1/8"
7/8" - 1 3/8"

Made from high-speed steel for long-lasting durability TiN-coated to reduce wear and heat build-up Spiral flute design ensures fast, clean chip removal Laser-etched markings for easy hole size identification 3-flat shank prevents slipping in the chuck Suitable for stainless steel, aluminium/aluminum, brass, copper, and plastic

Properties

Connection
connection 1 model	outside
connection 1 type	straight shank
Dimensions
inside / minimum diameter (inch)	1/4, 7/8, 1/8, 3/16
outside / maximum diameter (inch)	1 3/8, 1/2, 3/4, 7/8, 1 1/8
outside / maximum diameter (millimeter)	12.7, 19.1, 22.2, 28.6, 34.9
Properties
system of measurement	inch (imperial)
application	Drilling
