category:
Electric Motors
height:
5.63
length:
5.88
manufacturer:
Century
mpn:
K1670
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
2.11
width:
7.25

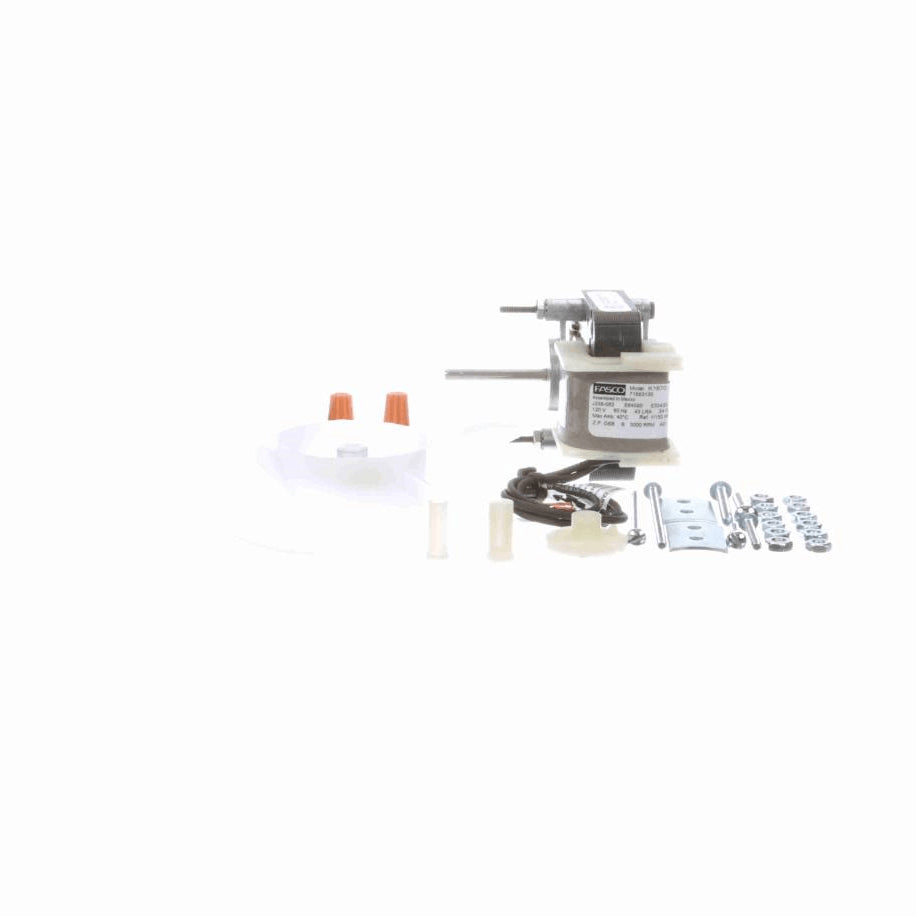

Product Overview
- OEM Direct Replacement Motor
- C-Frame
- Shaded Pole
- Impedance Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- .187" Diameter Shaft
- 11.25" Leads
- Extended Studs Shaft End
Additional Information
Thermal ProtectionImpedance
Speed3000 rpm
Current.34 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight2.11 LB
Country Of originMexico
Output HP1/150 Hp
Output KW0.01 kW
Service Factor1
FrameC-FRAME
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles2
RotationCounterclockwise Shaft End
MountingBracket
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeRound
Frame Length1.69 in
Shaft Diameter0.187 in
Shaft Extension1.42 in
CEN
Starting MethodAcross The Line
