Century

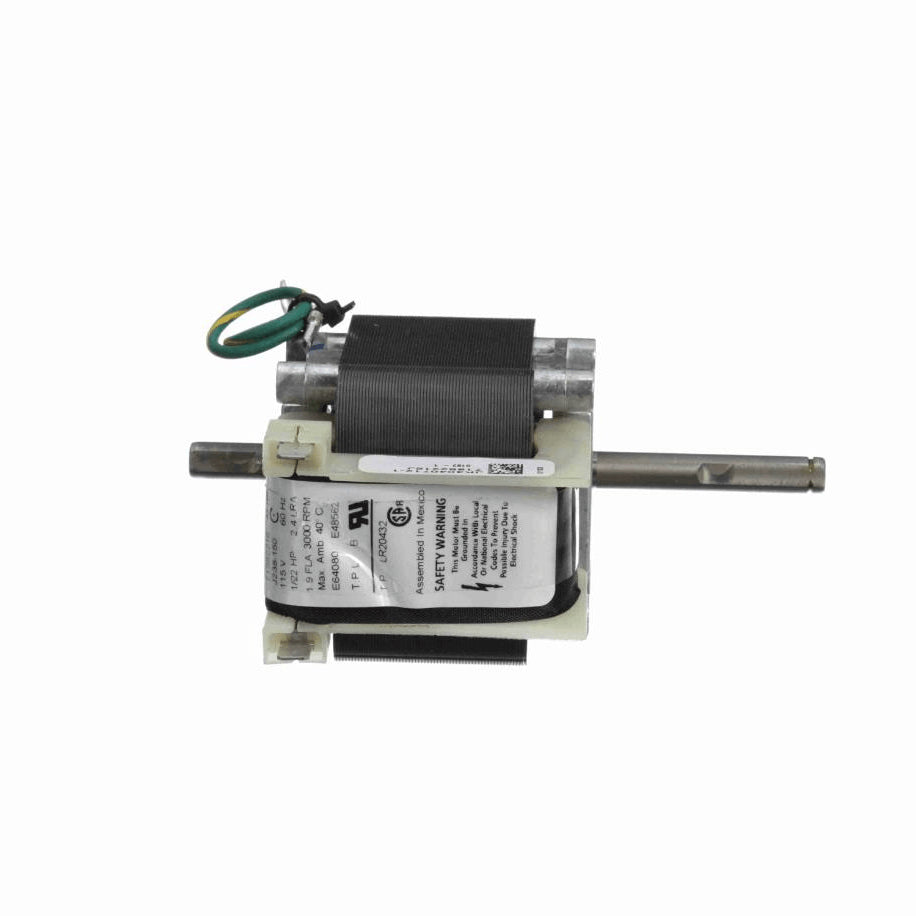

Fasco 1/22 HP C-Frame / Skeleton Motor, 3000 RPM, 115 Volts, , OAO - K674

Fasco 1/22 HP C-Frame / Skeleton Motor, 3000 RPM, 115 Volts, , OAO - K674

Dropship

SKU SKU:kpi045-K674

Regular price $93.11 USD
Regular price Sale price $93.11 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Electric Motors
height: 3.25
length: 5.56
manufacturer: Century
mpn: K674
subcategory: AC Motors - NEMA
type: HVAC - R Motors
weight: 3.05
width: 5.56

Product Overview

  • Refrigeration Motor
  • C-Frame
  • Shaded Pole
  • Thermally Protected, One-Shot Fuse
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • .3116" Diameter Double Shaft with Flat
  • Power Quick Connect Terminal
  • (2) Tapped Screw Holes

Additional Information

Thermal ProtectionThermally Protected
Speed3000 rpm
Current1.9 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight3.05 LB
Country Of originMexico
Output HP1/22 Hp
Output KW0.04 kW
Service Factor1
FrameC-FRAME
EnclosureOpen Enclosed
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationClockwise
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialNa
Shaft TypeFlat & Groove
Shaft Diameter0.311 in
Shaft Extension1.90 in
CEN
Starting MethodAcross The Line
