category:
Electric Motors
height:
3.31
length:
3.1
manufacturer:
Century
mpn:
K1322
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
3.23
width:
5.25

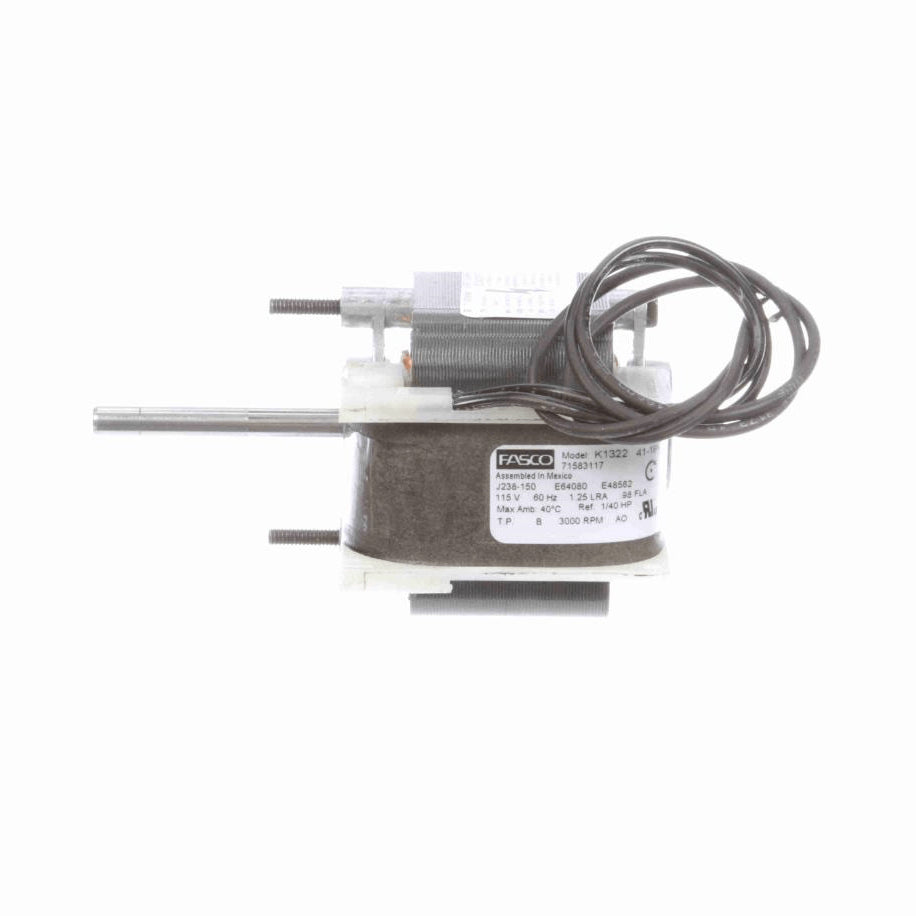

Product Overview
- OEM Direct Replacement Motor
- C-Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- .25" Diameter Shaft with Flat
- 13.75" Leads
- Extended Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed3000 rpm
Current.98 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight3.23 LB
Country Of originMexico
Output HP1/40 Hp
Output KW0.02 kW
Service Factor1
FrameC-FRAME
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles2
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.65 in
Shaft Diameter0.250 in
Shaft Extension2 in
CEN
Starting MethodAcross The Line
