category:
Electric Motors
height:
3.63
length:
11.5
manufacturer:
Century
mpn:
K142
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
1.87
width:
9.25

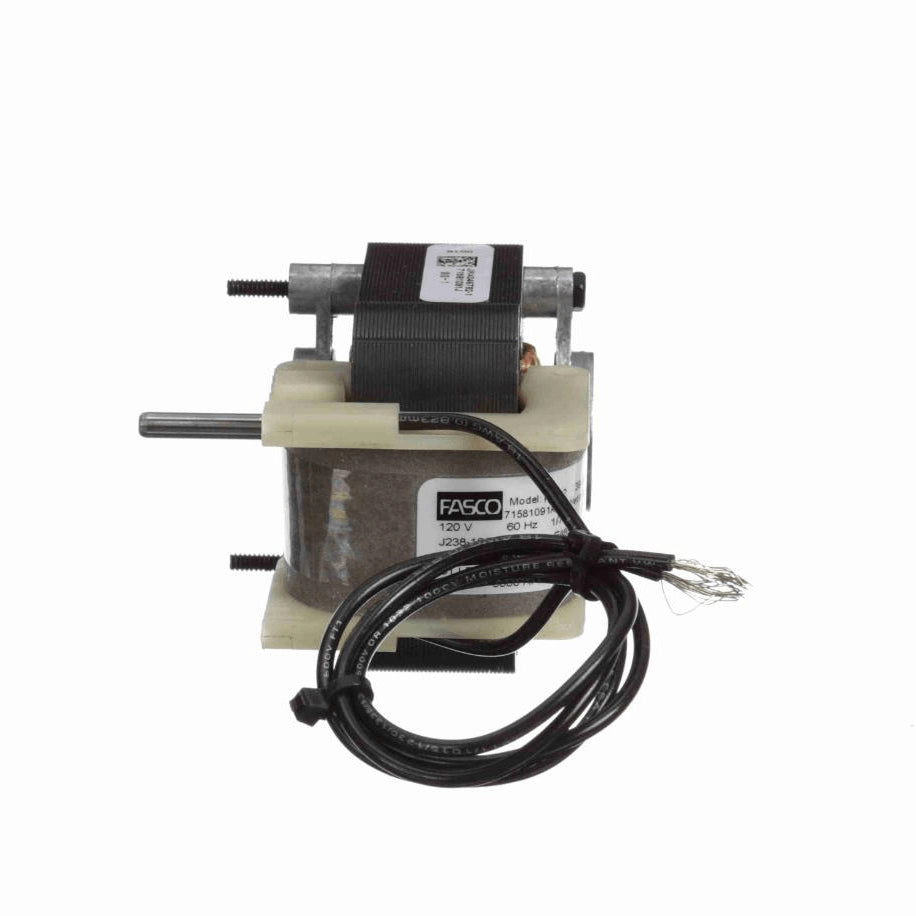

Product Overview
- Heating - Refrigeration - Ventilating Motor
- C-Frame
- Shaded Pole
- Thermally Protected, One-Shot Fuse
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- .1814" Diameter Shaft
- 12.5"/11.5" Leads with .5" Strip
- Extended Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed3000 rpm
Current.63 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight1.87 LB
Country Of originMexico
Output HP1/70 Hp
Output KW0.01 kW
Service Factor1
FrameC-FRAME
EnclosureOpen Enclosed
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationClockwise
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeRound
Shaft Diameter0.181 in
Shaft Extension1.00 in
CEN
Starting MethodAcross The Line
