category:
Electric Motors
height:
10
length:
4.38
manufacturer:
Century
mpn:
D674
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
6.8
width:
4.38

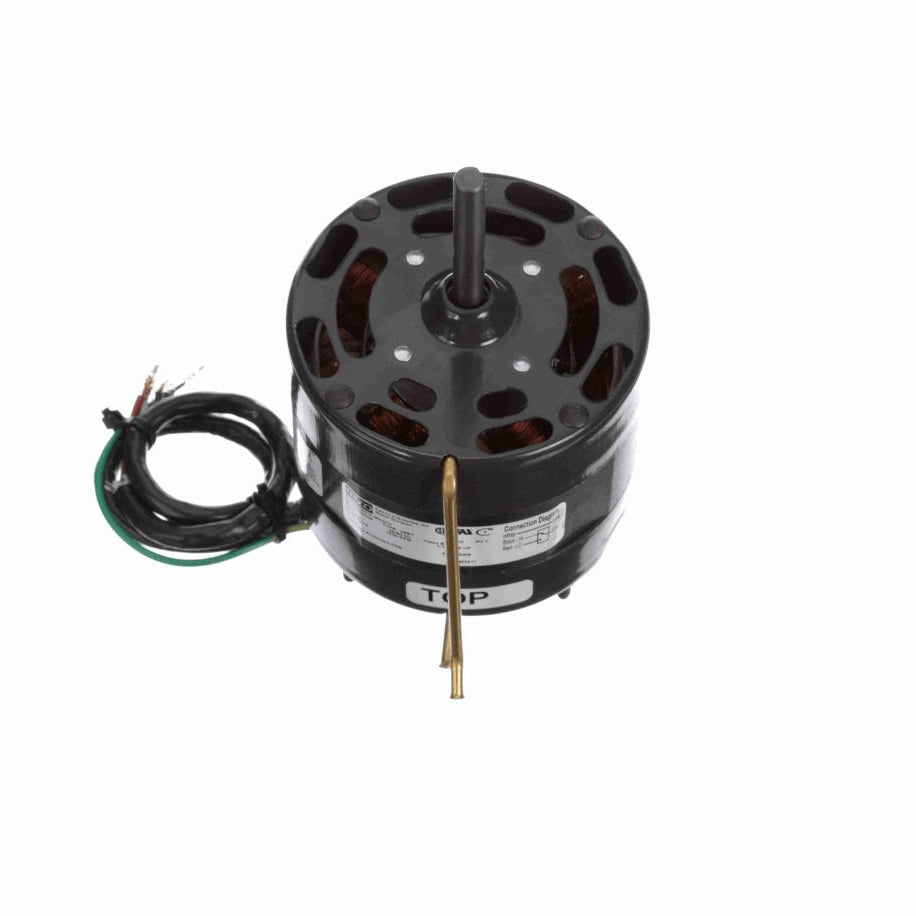

Product Overview
- General Purpose Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End and Lead End, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 17" Leads
- Extended Studs Lead End
Additional Information
Thermal ProtectionThermally Protected
Speed1500 rpm
Current2.0-1.3 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight6.80 LB
Country Of originMexico
Output HP1/10-1/15 Hp
Output KW0.07 kW
Service Factor1
Frame4.4
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.375 in
Shaft Extension2.5 in
CEN
Starting MethodAcross The Line
