category:
Electric Motors
height:
10
length:
5.13
manufacturer:
Century
mpn:
D154
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
8
width:
5.13
Product Overview

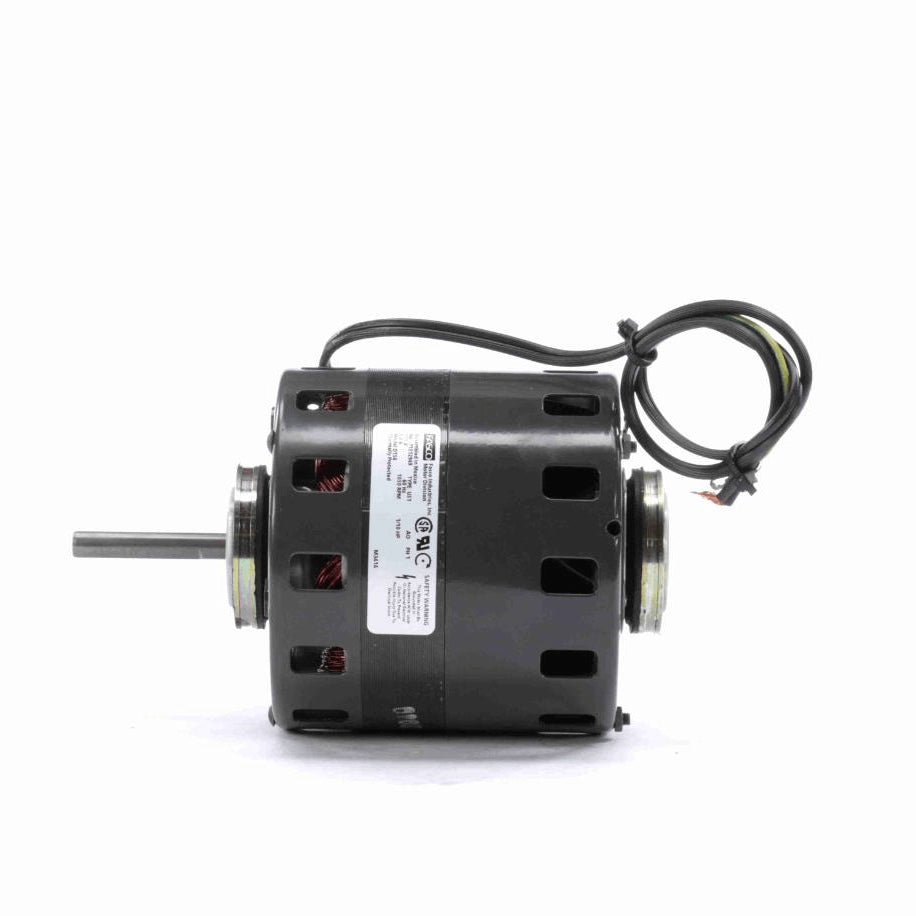

- Direct Drive Blower Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 24" Leads
- Resilient Mounting Ring Shaft End and Lead End, Belly Band Mounting (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1050 rpm
Current5.0 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight8.00 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationClockwise Shaft End
MountingResilient Rings
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.375 in
Shaft Extension2.84 in
CEN
Starting MethodAcross The Line
