category:
Electric Motors
height:
4.38
length:
10.5
manufacturer:
Century
mpn:
D503
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
6
width:
5.38

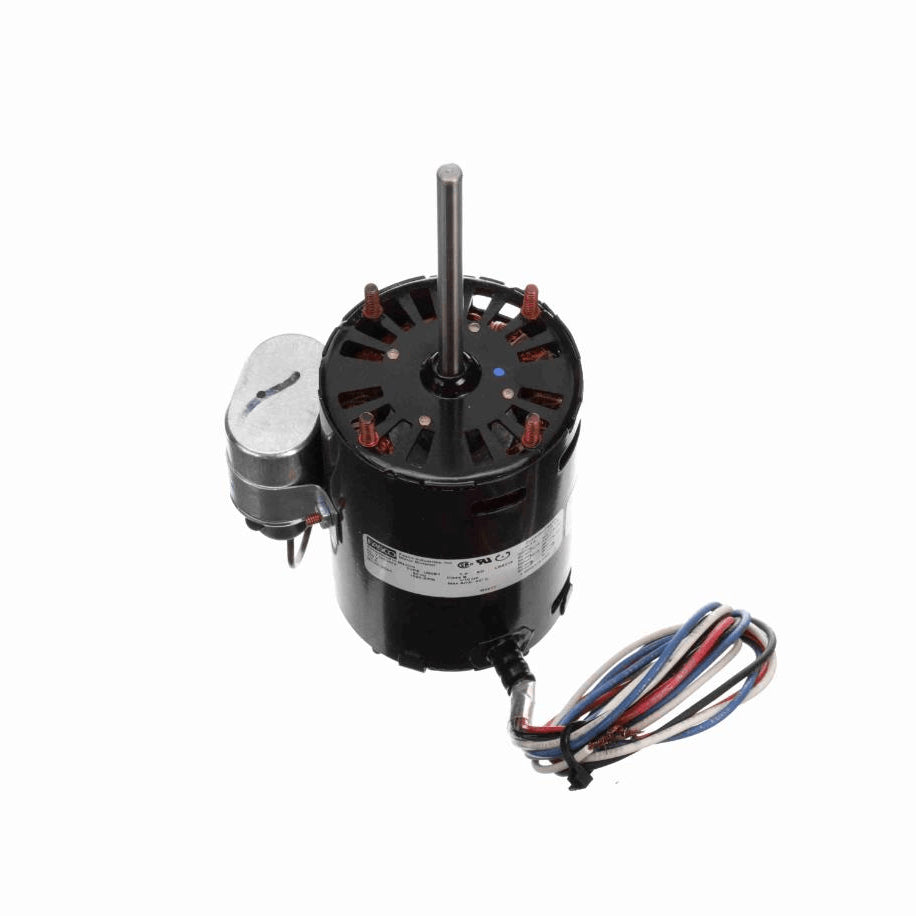

Product Overview
- General Purpose Motor
- 3.3" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Shaft End End-Frame and Opposite Shaft End End-Frame, Eclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 30" Leads
- Extended Studs Shaft End and Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1590 rpm
Current1.00 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight6.00 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length4.39 in
Shaft Diameter0.313 in
Shaft Extension3.87 in
CEN
Starting MethodAcross The Line
