category:
Electric Motors
height:
4.38
length:
10.5
manufacturer:
Century
mpn:
D334
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
6.2
width:
5.38

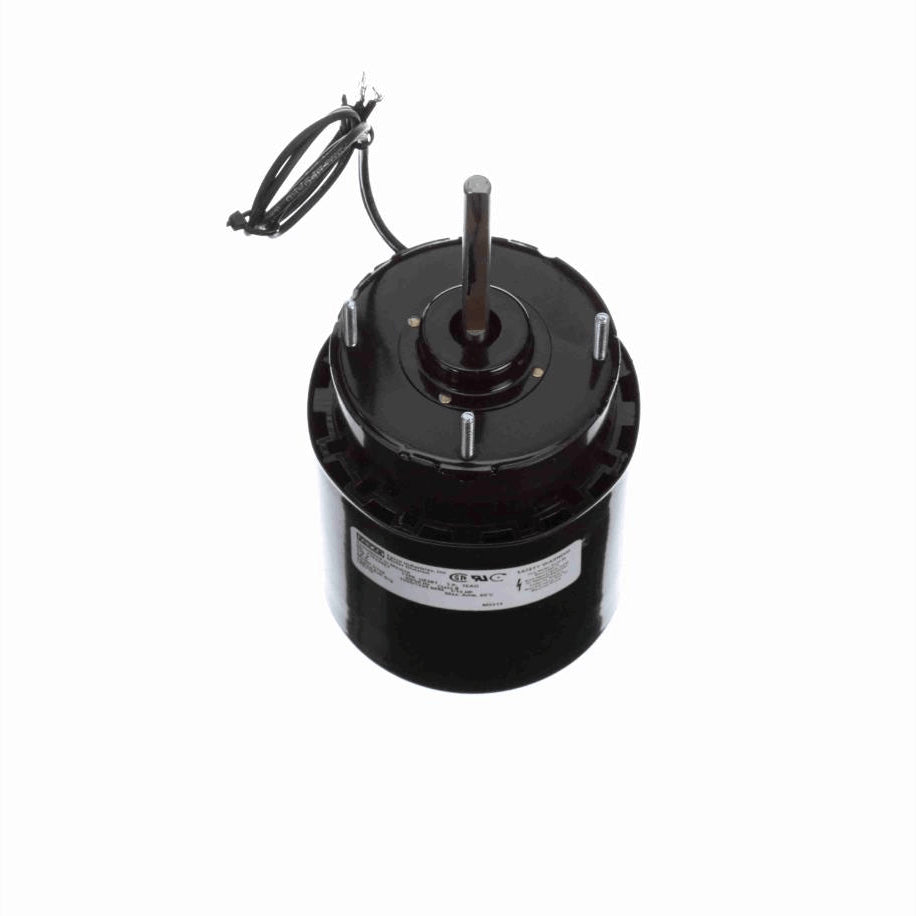

Product Overview
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed Fan Cooled, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/16" Diameter Shaft with Flat
- 12" Leads
- Extended Studs Shaft End, Round Hub Shaft End and Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1500/1250 rpm
Current1.40 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight6.20 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Frame3.3
EnclosureTotally Enclosed Fan Cooled
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.32 in
Shaft Diameter0.312 in
Shaft Extension3.00 in
CEN
Starting MethodAcross The Line
