category:
Electric Motors
height:
3.38
length:
11
manufacturer:
Century
mpn:
D211
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
32
width:
3.38

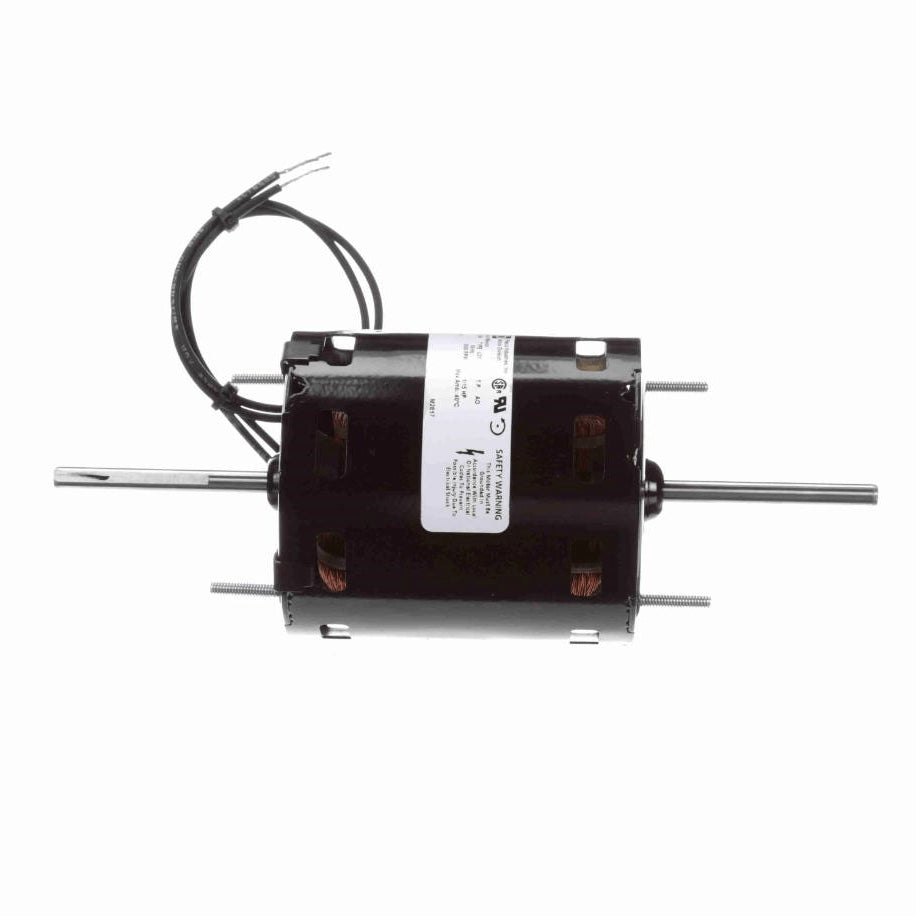

Product Overview
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Double Shaft with Flat
- 12" Leads
- Extended Studs Lead End and Opposite Lead End
Additional Information
Thermal ProtectionThermally Protected
Speed3000 rpm
Current1.05 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight32.00 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationClockwise Lead End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteetl
Shaft TypeFlat
Shaft Diameter0.250 in
Shaft Extension2.5 in
CEN
Starting MethodAcross The Line
