category:
Electric Motors
height:
3.94
length:
8
manufacturer:
Century
mpn:
D498
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5.2
width:
3.94

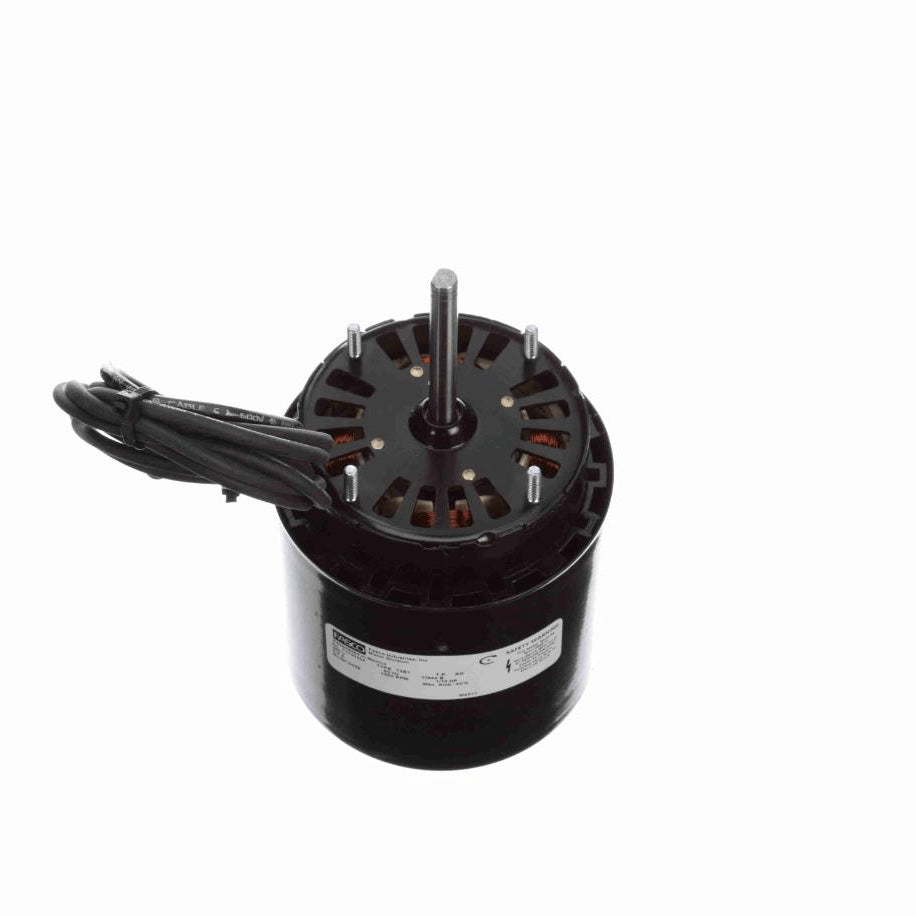

Product Overview
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Fan Cooled
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 37" Leads
- Extended Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current0.50 A
Number of Speeds1
Ambient Temperature40 °C
ULNo
Insulation ClassB
CSAN
Weight5.20 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.07 in
Shaft Diameter0.313 in
Shaft Extension2.50 in
CEN
Starting MethodAcross The Line
