Century

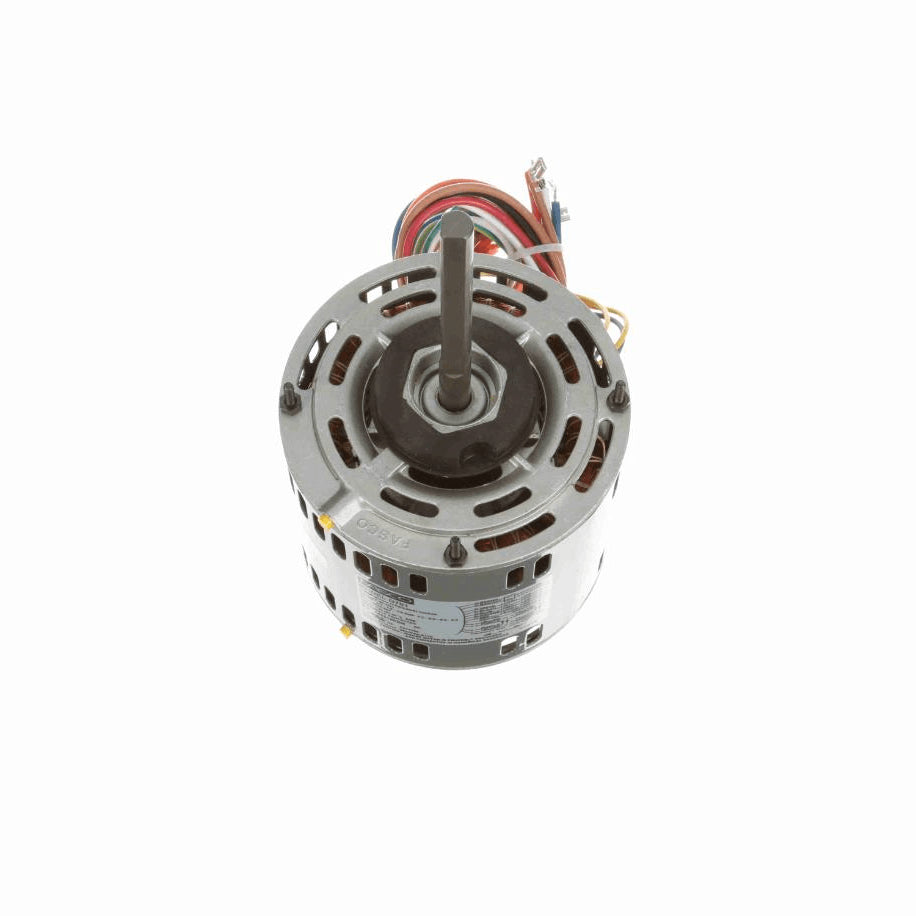

Fasco D701 Fan and Blower Motor, 1/2-1/3-1/4-1/5 HP, 1 Ph, 60 Hz, 115 V, 1075 RPM, 4 Speed, 48 Frame, OAO

Fasco D701 Fan and Blower Motor, 1/2-1/3-1/4-1/5 HP, 1 Ph, 60 Hz, 115 V, 1075 RPM, 4 Speed, 48 Frame, OAO

Dropship

SKU SKU:kpi045-D701

GTIN : 818508021201

MPN : D701

Regular price $182.68 USD
Regular price Sale price $182.68 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Century - D701

  • Direct Drive Fan and Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 26" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)

Additional Information

Thermal ProtectionAutomatic
Speed1075 rpm
Current7.7-5.5-4.2-3.3 A
Number of Speeds4
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight15.40 LB
Country Of originThailand
Output HP1/2-1/3-1/4-1/5 Hp
Output KW0.37 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length5.39 in
Shaft Diameter0.500 in
Shaft Extension5.43 in
CEN
Starting MethodAcross The Line
CategoryElectric Motors
Height5.63
Length15
ManufacturerCentury
MpnD701
SubcategoryAC Motors - NEMA
TypeHVAC - R Motors
Weight15.4
Width5.63
